Essential Series Gold and Platinum
8

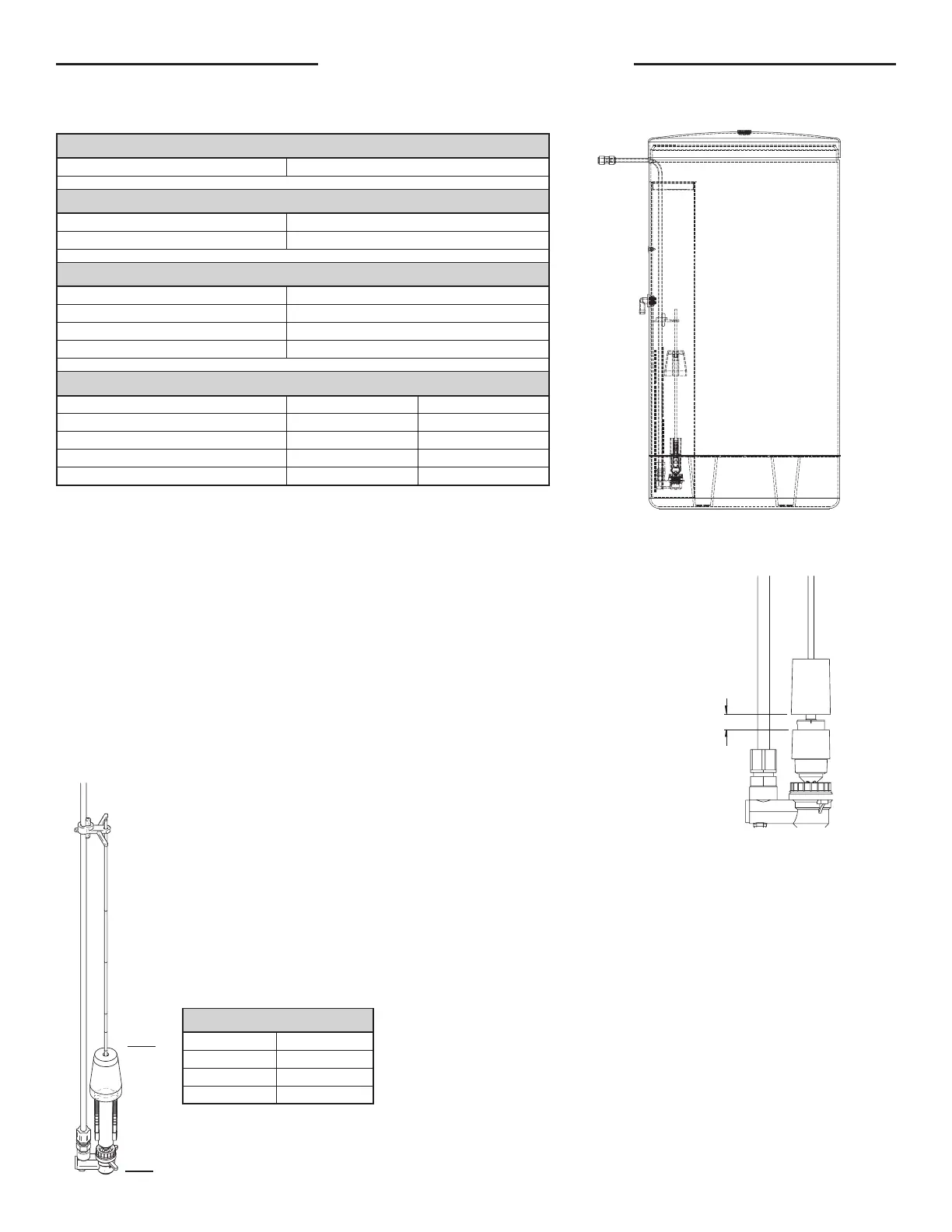

Essential Platinum Brine Tank
System Components
Tank Construction HDPE
Connections
Inlet / Outlet Connections 0.375" Tubing
Drain Connection 0.625" Tubing
System Part Number
Complete Assembly (18" x 35") 15062
Grid Plate Asembly (5" x 18") 1539
Brine Well (4" x 30.5") 1610A
Brine Valve Assembly (18" x 35" 7805
Dimensions and Weight
Height 35" 889 mm
Diameter 18" 458 mm
Shipping Weight 21 lb 9.5 kg
Salt Capacity 250 lb 114 kg
Operating Weight (Approximate) 335 lb 152 kg
Essential Brine Valve Settings
Essential Gold
These units come with a pre-adjusted brine valve. No additional set-up is required.
The float is preset to a 0.8 lb. salt setting. This can be confirmed by measuring the
distance of the float cup from the top of the fixed adjuster tube. This distance is 0.50
inches (drawing not to scale).
Essential Platinum
The standard settings for the float cup are located on the adjuster rod
The Essential Platinum should be set to 7 3/4”. In many cases the float
cup settings are a measured distance (in inches) from the bottom of
the valve body to the top of the float cup. Align the very top of the
float cup with the marked line or measurement on the adjuster rod.
After the cup is set, check the alignment of the brine valve guide to
ensure that it is still directly aligned over the brine valve body. Set to
one (1).
Essential Platinum Settings
Float Cup 1
Float Cup Height 7 3/4"
Adjuster Tube 1.25
Salt Setting 1.25
thgieH puC taolF
2
3
4
5
