Kinetico Essential Series User Manual

Essential Series Gold and Platinum
36

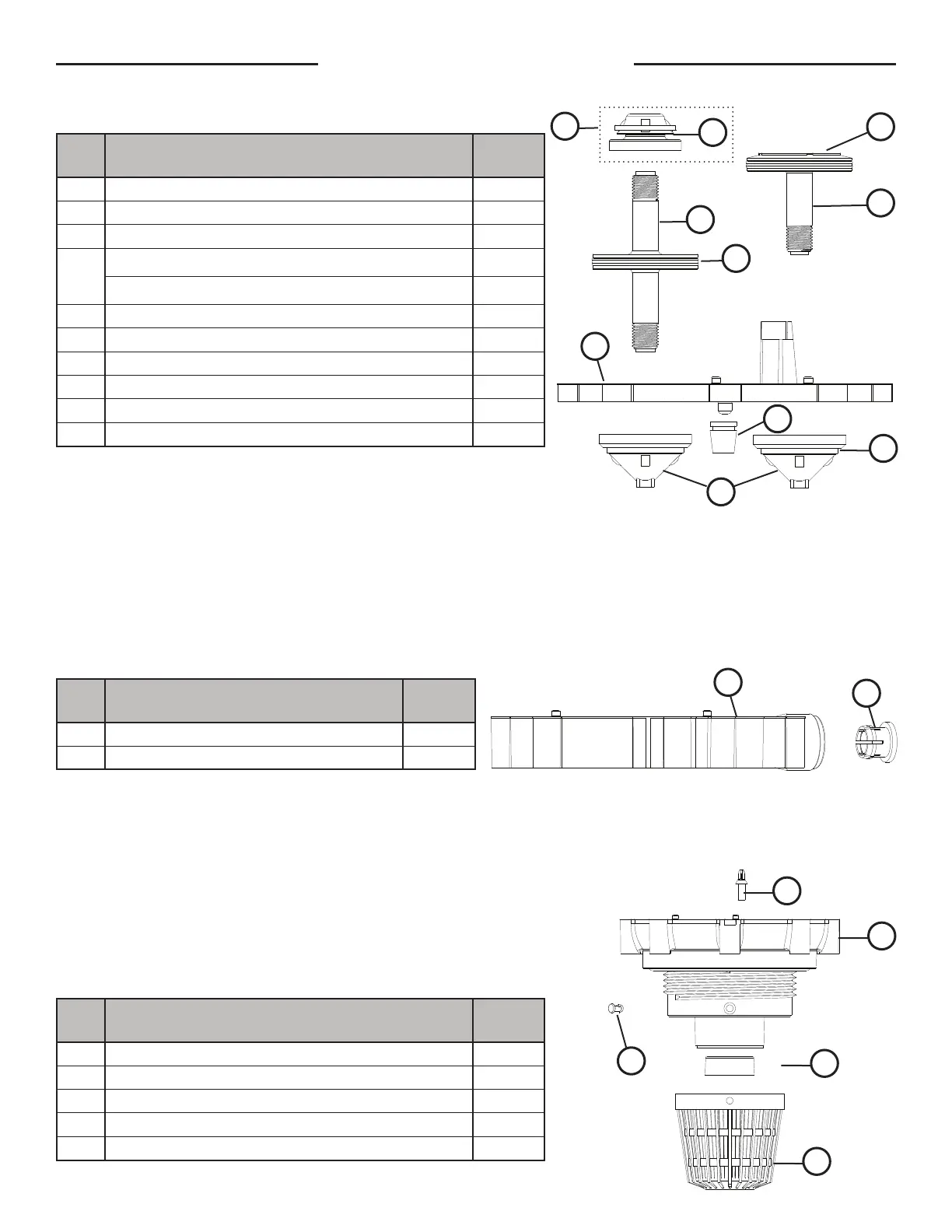

Level 4 Assembly Parts
Dwg.
No.
Description Part No.
1 Solitaire By-pass Seat, w/Seal 14808
2 Unitary Inlet Valve, w/Quad 14806
3 Piston, L-4 17560
4
Backwash Flow Control – 1.0 GPM - Essential Gold 4409
Backwash Flow Control – 2.5 GPM - Essential Platinum 1422
5 Solitaire Level Four - Welded 14792A
6 Level Four Seat, w/Seal 13696
7 Seal Only, Seat 14725
8 Quad Ring, 125 Piston 1550
9 Quad Ring, 110 (Internal Not Shown) 1590
10 Seal, Main Seat 7865
Level 5 Assembly Parts
Dwg.
No.
Description Part No.
1 Solitaire Level Five - Welded 14793D
2 Insert Collet – 3/8 with M. G. 12856B
Level 6 Assembly Parts
Dwg.
No.
Description Part No.
1 Solitaire Level Six – Welded/Drilled with Counter Sink 15647C
2 Upper Distributor with Clip Holes 15782
3 Pressed Solitaire L-6 Screen 15607
4 Upper Distributor Clip 10279
5 Solitaire Check Stem 15817
8
3
2
7
1
5
4
10
6
8
1
2
5
1
3
4
2
