Chapter 2 Basic Operation 2-6

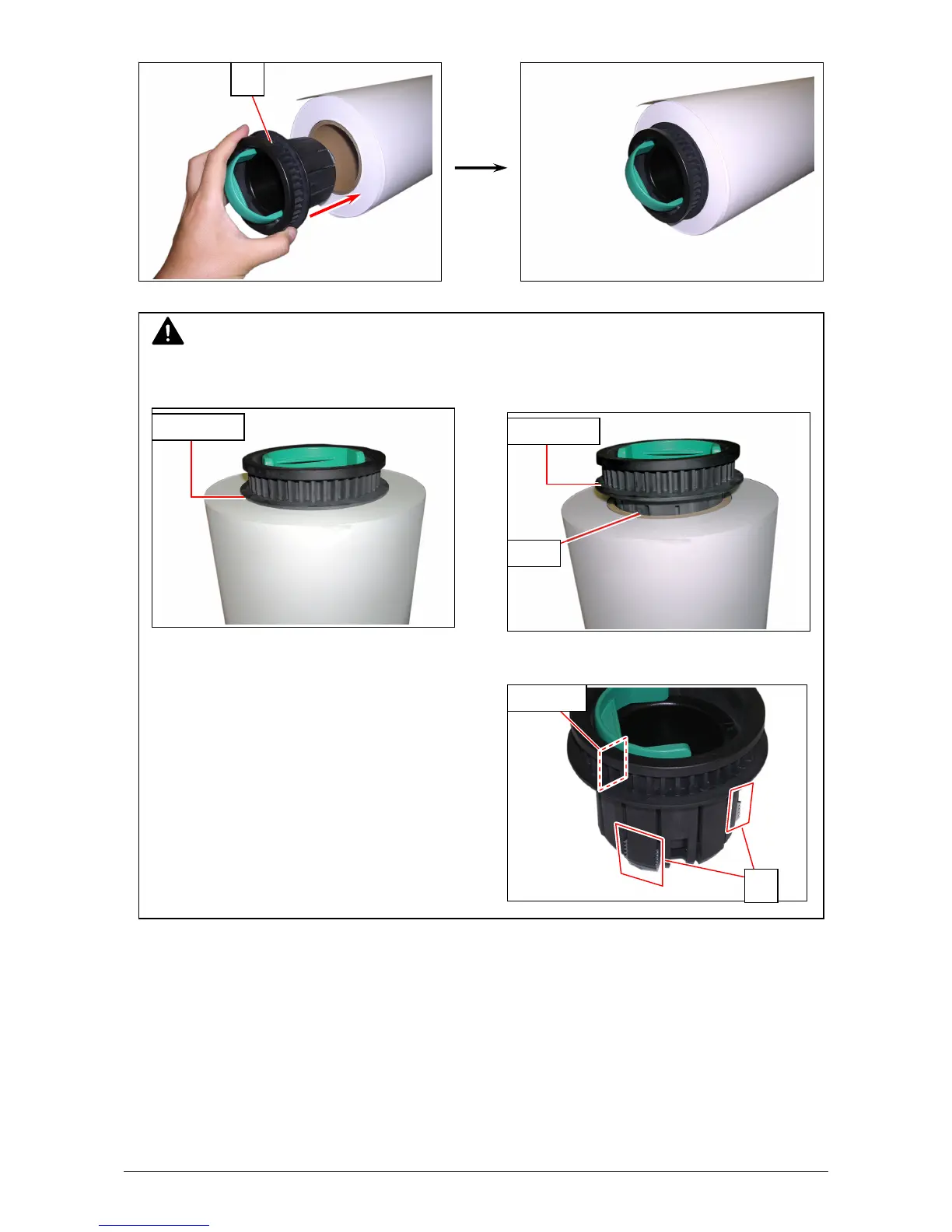

4. Insert each Flange (4) into both ends of the roll media core to be installed.
NOTE
(1) Fully insert Flange into the roll media core so that the inside rim of Flange evenly touches
the side face of the roll media.
Correct: Fully inserted Wrong: not touching roll side
(2) Flange has Stoppers (6) with sharp edge.
Be sure not to touch them.
4
6:
