Chapter 2 Basic Operation 2-7

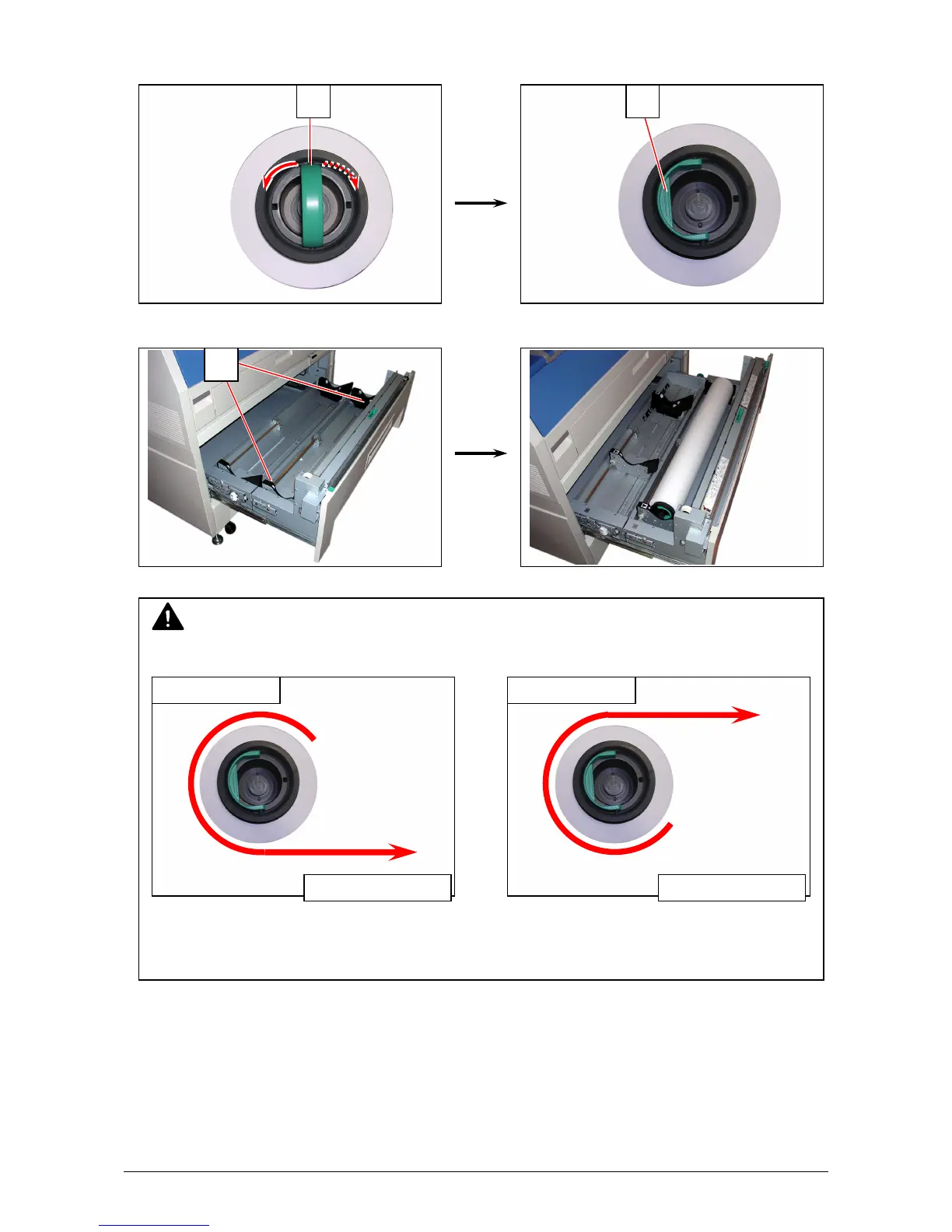

5. Push both the levers (3) down in either way. Position them flat against Flange to secure the roll
media.
6. Lift the roll media by holding both Flanges. Lower Flanges onto Slide Guides (5) in Roll Deck.
NOTE
(1) Note the rewinding direction.
Correct: Edge comes from bottom Wrong: Edge comes from top
(continued on the next page)
3 3
5
Rear: Deck back Rear: Deck back
Front: to Guide Plate Front: to Guide Plate
