Chapter 2 Basic Operation 2-8

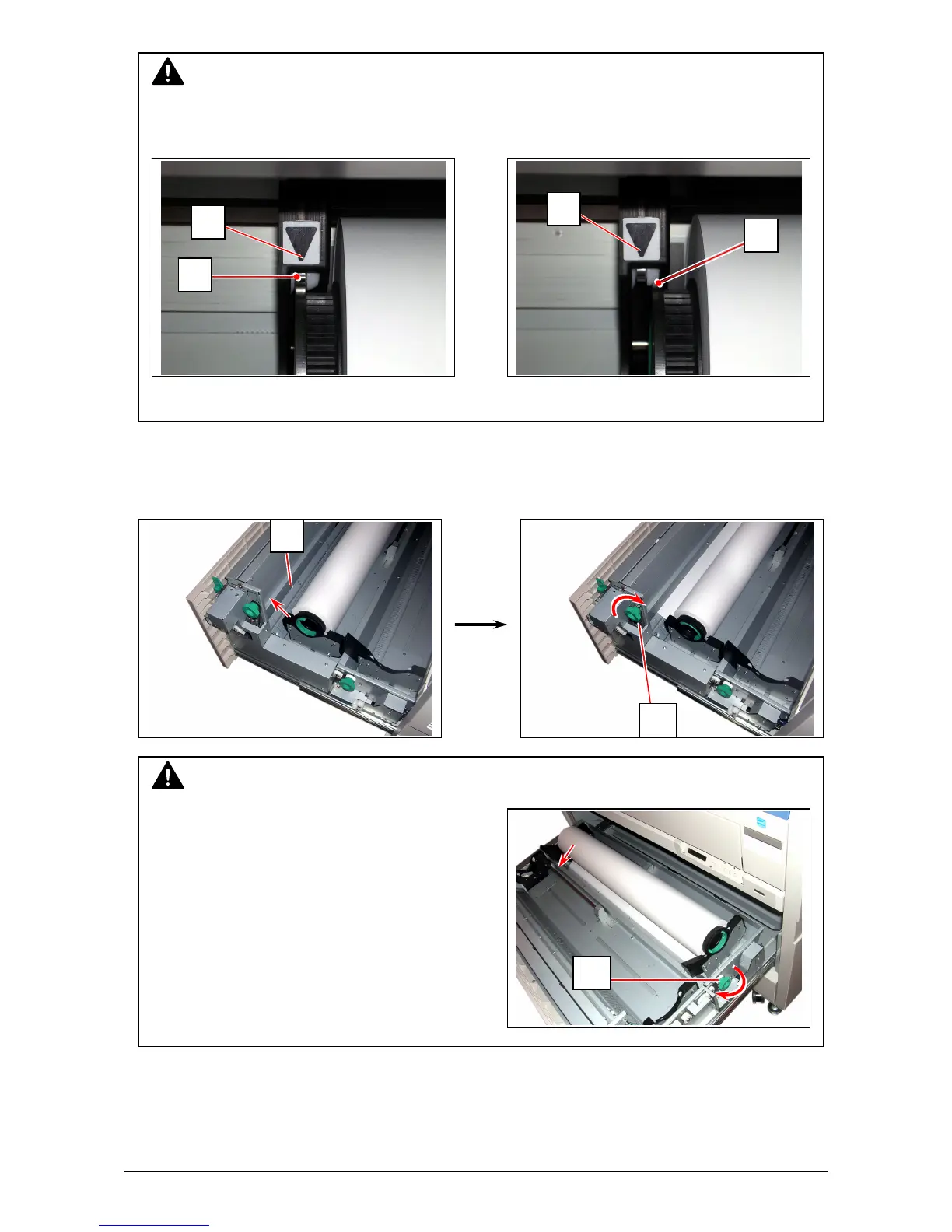

7. Insert the leading edge of the roll media under Guide Plate (9) until it touches the feeding roller.
Rotate Feed Knob (10) clockwise so that the feeding rollers catch the leading edge.
NOTE
Use the rear Feed Knob (11) for Roll Deck 2.
NOTE
(2) The outside rim (7) of Flange should meet the black triangle (8) marked on Slide Guide.
Otherwise the roll media may fall in Roll Deck or result in an incorrect media feeding.
Correct Wrong
9
10
7
8
8
7
11
To Next Page
