Chapter 2 Basic Operations 2-7

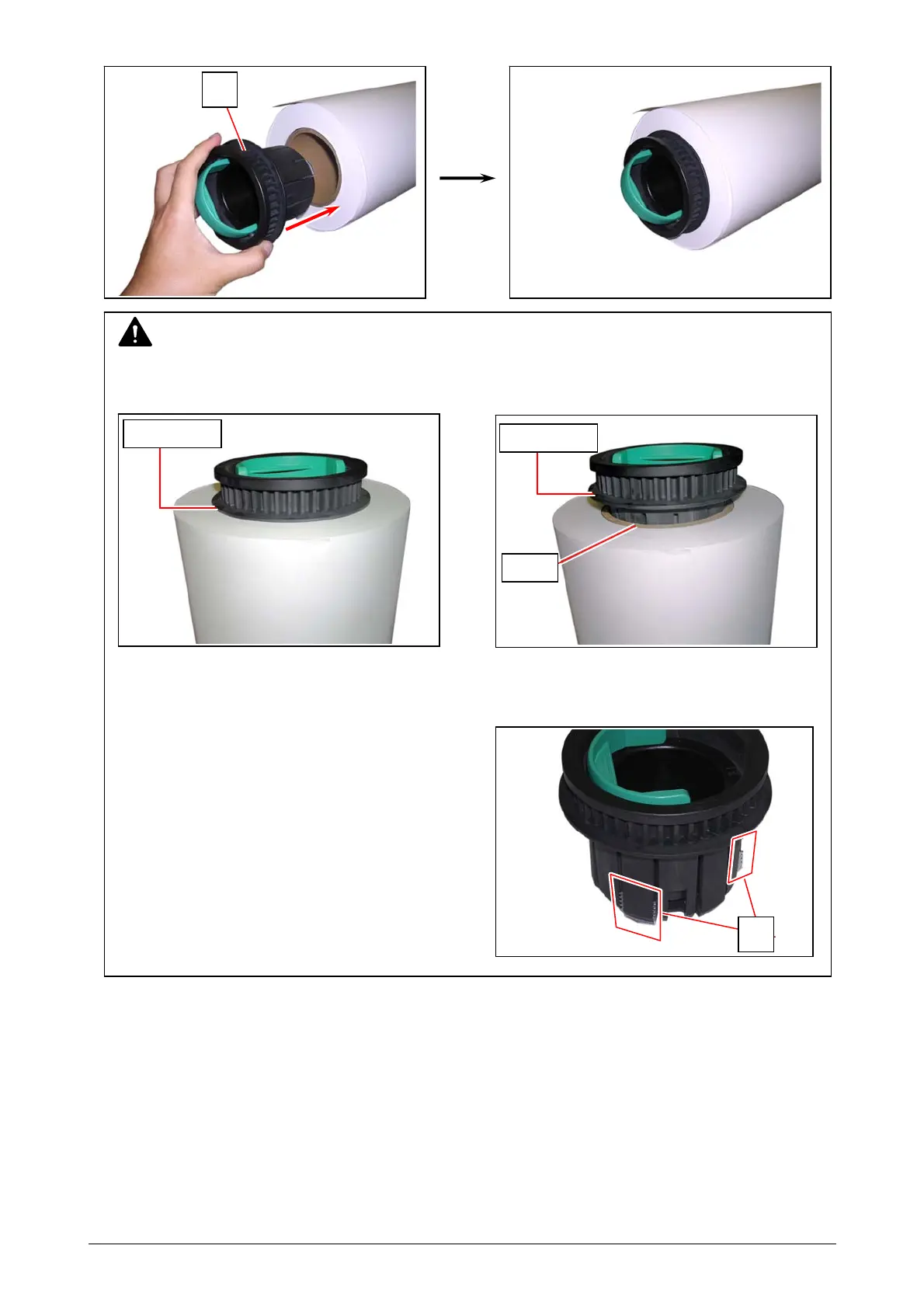

4. Insert both Flanges (2) deep into the core of new roll media until they stop.
NOTE
(1) Insert Flanges (2) deep enough into the core of roll media until their inside rims surely
touch the side face of roll media with having no gap.
Correct: Fully inserted Incorrect: There is gap
(2) Be careful not to be harmed by the
saw-toothed edge (6) when handling the
Flanges (2).
2
Inside Rim
Inside Rim
Ga
6
OK NG
