Chapter 2 Basic Operations 2-9
NOTE

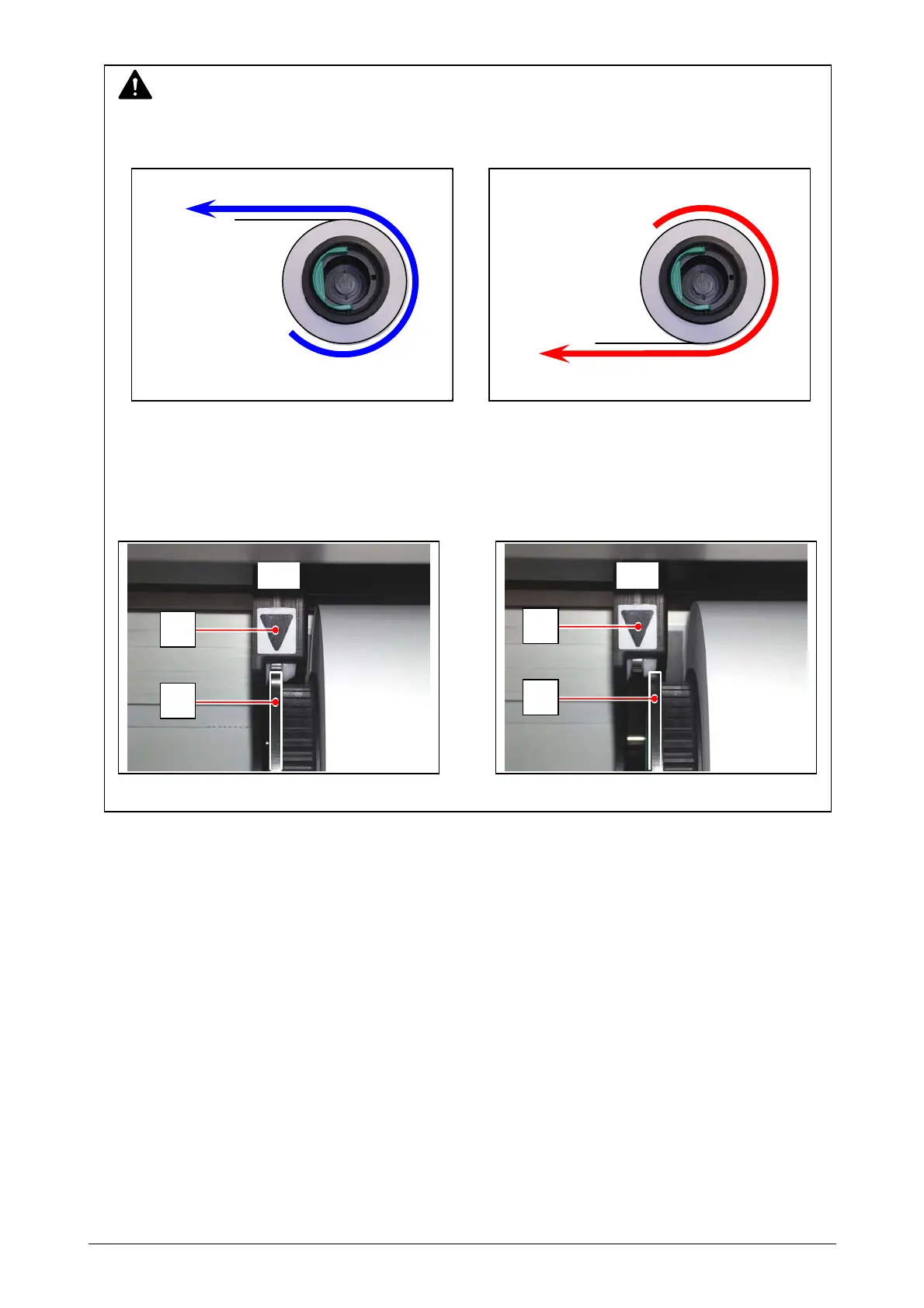

(1) Note the position of leading edge. It should be on the bottom side when directed to the
media feeding path.
Correct : Leading edge is on top side Incorrect : Leading edge is on bottom side
(2) The outside rim (7) of the Flange must be aligned with the tip of black triangle (8) for
correct gear engagement. If not, the Flange may come off from correct position and may
result in incorrect media feeding.
Correct Wrong
OK NG
7
to media feeding path
Incorrect
to media feeding path
Correct
to media feeding path
8
7
8
To Next Page
