Chapter 3 Error Correction 3-17

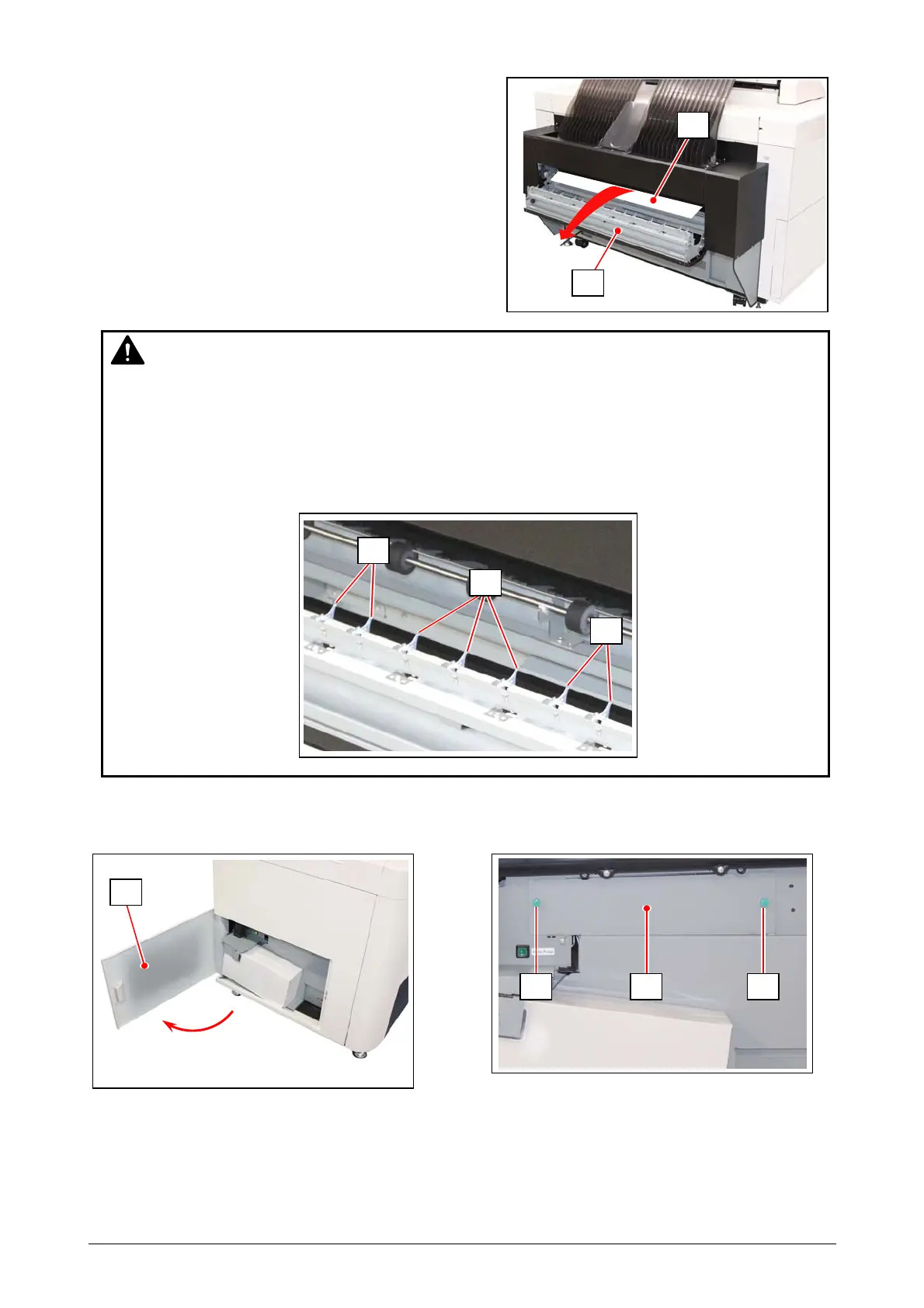

3. Open the Fuser Cover (2), and carefully pull and remove the jammed sheet (5).
4. Open the Left Side Door (7). Loosen 2 Knobs (8) to detach the Left Side Cover (3).
2
5
WARNING
(1) There are extremely hot parts inside the Fuser Unit. Do not touch any parts in the Fuser
Unit, or you will be burnt.
Also the mis-fed media can be very hot. Be careful not to get burnt when you remove it.
(2) The stripping claws (6) with a sharp edge are on the inside face of the Fuser Cover. Take
care not to get scratched on them when removing a sheet.
6
6
6
7
88 3
To Next Page
