Chapter 4 Maintenance 4-3

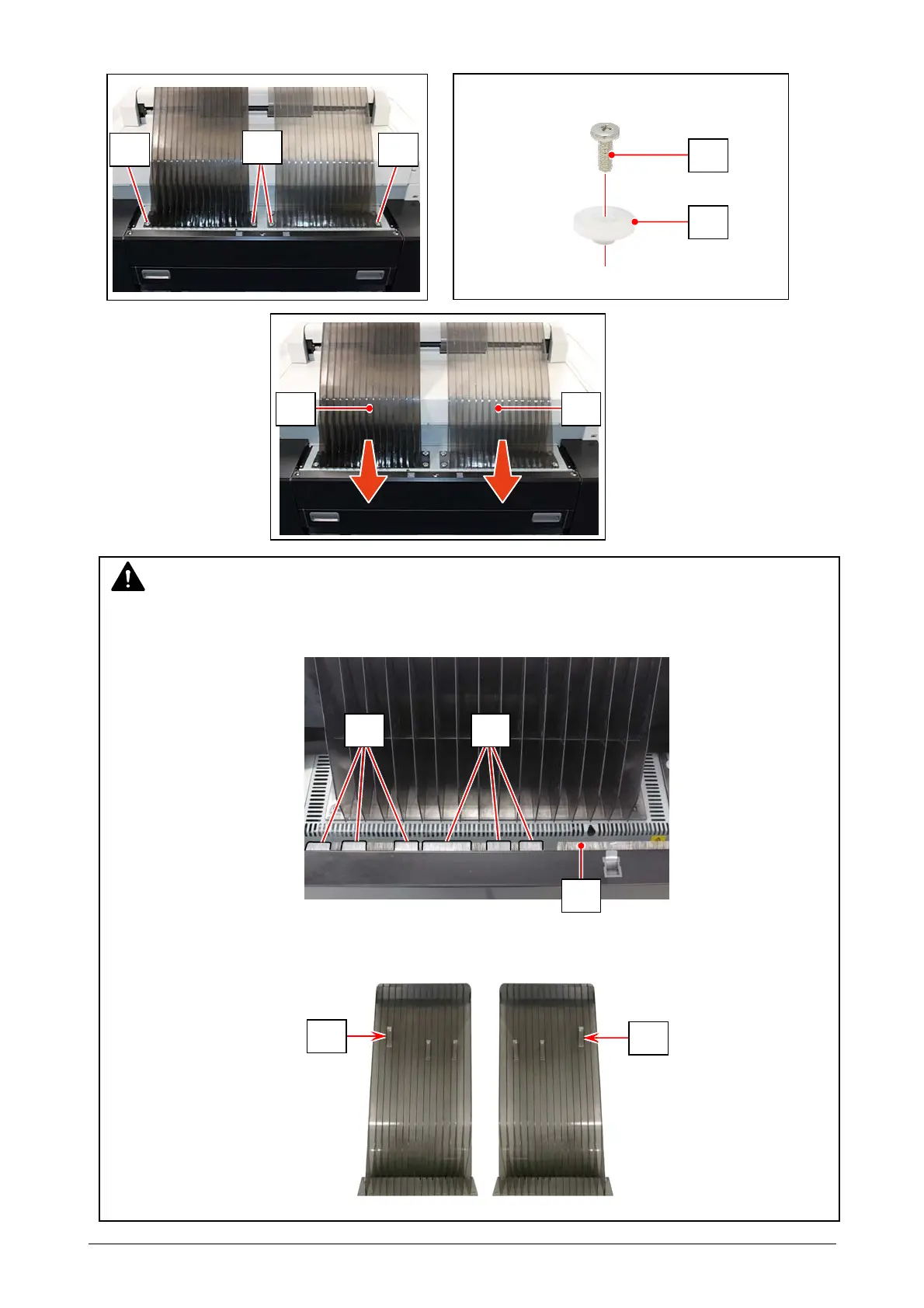

2. Remove 4 screws (M4x10) (3) to remove the Collar (4) and the Exit Tray (5).
3
3
3
5 5
4
3
NOTE
1. Carefully remove the Exit Tray (5) so as not to touch the Mylar (6) and the Discharging
Brush (7) each other.
2. The Exit Trays are different between right and left. Please reattach them so that the upper
tabs on them should be outside when putting back.
6 6
7
8
8
