KIP 770K - Rear View

Chapter 1 Before Use 1-10

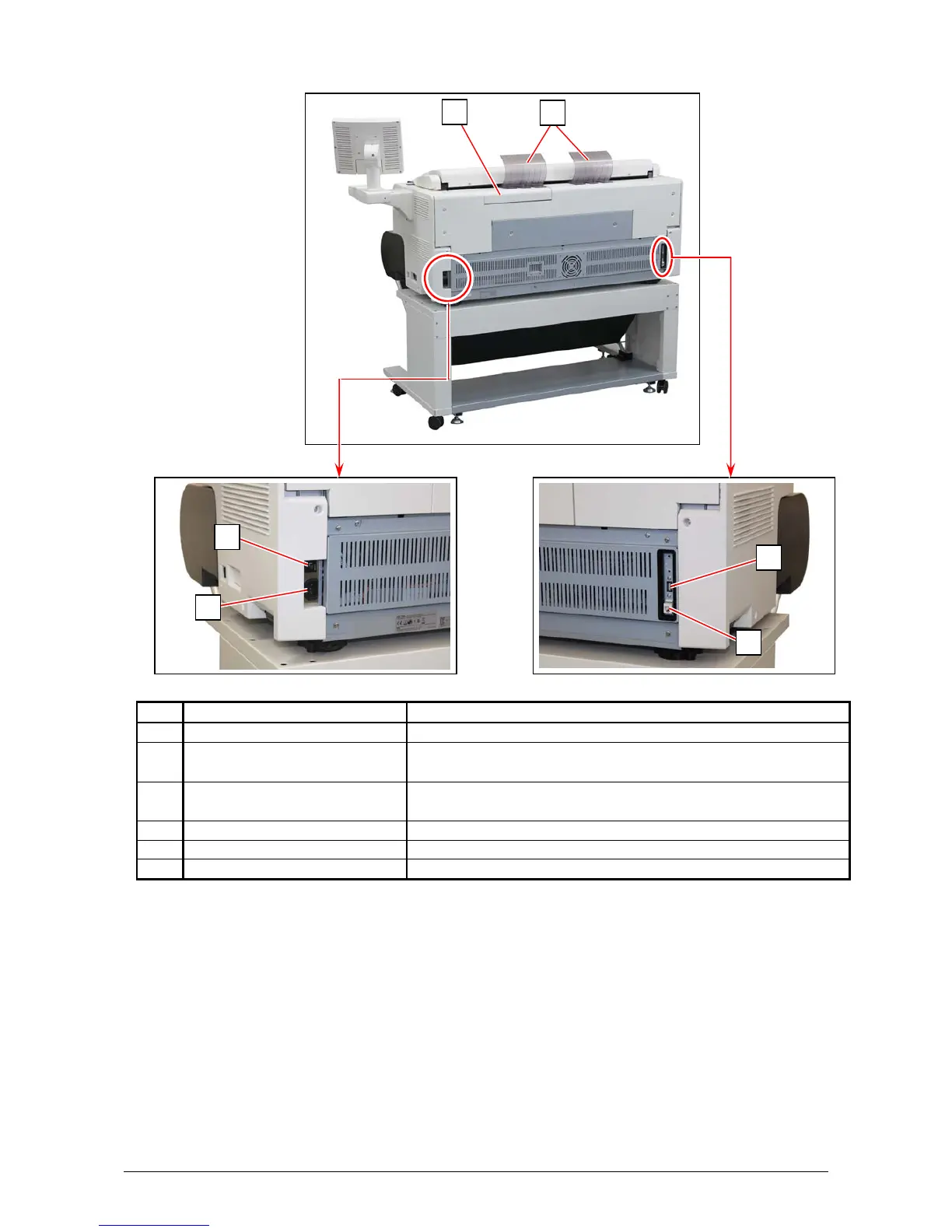

1. 5. 2 Rear view
7: behind
No. Name Function
1 Toner Cover Open here to access toner supply system.
2 Original Guide These trays catch the original ejected from the Scanner
Unit.
3 LAN Port Connect the LAN Cable to connect the KIP 770 to the
network. (Do not connect a telephone line)
4 USB Port Service Use, 5VDC max.
5 Breaker It is possible to shut off supplying the AC power.
6 Inlet Socket Connect the Power Cord here.
