DP485 Service Manual
21

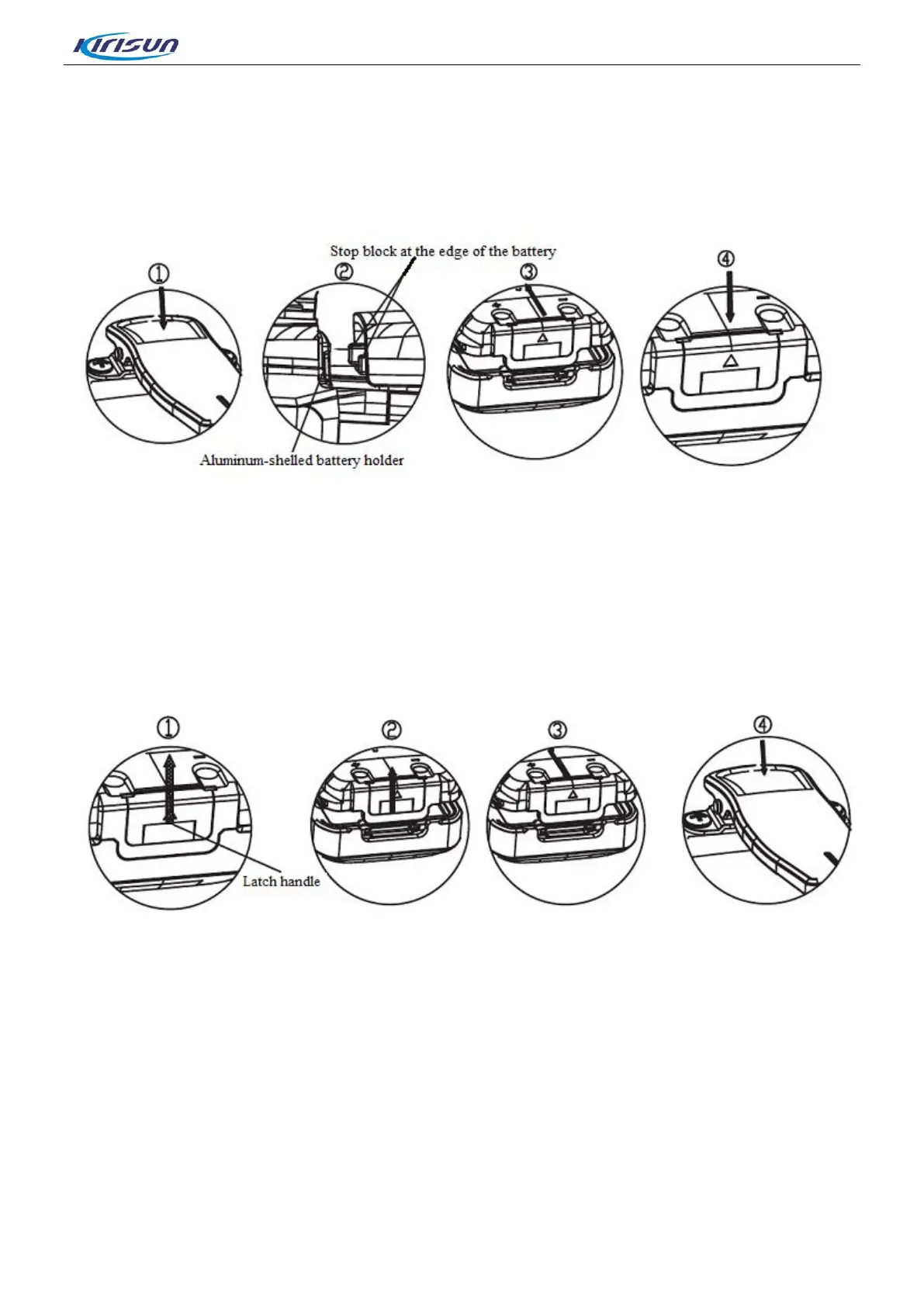

Step 2.Align the battery with the battery holder at the back of the radio, and then insert the battery. (Figure
②)
Step 3.Push the battery in the direction indicated until the latch is in position. (Figure ③)
Step 4.Press the upper part of the battery until it is latched. (Figure ④)
Uninstalling the Battery
Step 1.Power off the radio.
Step 2.Slide the latch in the indicated direction, and the battery will go up. (Figures ① and ②)
Step 3.the battery in the indicated direction to take it down. (Figure ③) If the belt clip is installed, please
first press the upper part of it so that it goes up.
6.2.Installing and Uninstalling the Antenna
To install the antenna, insert the antenna on the top of the radio and turn it clockwise until it is fastened. To
uninstall the antenna, turn it counter-clockwise to loosen it.
