DP485 Service Manual
22

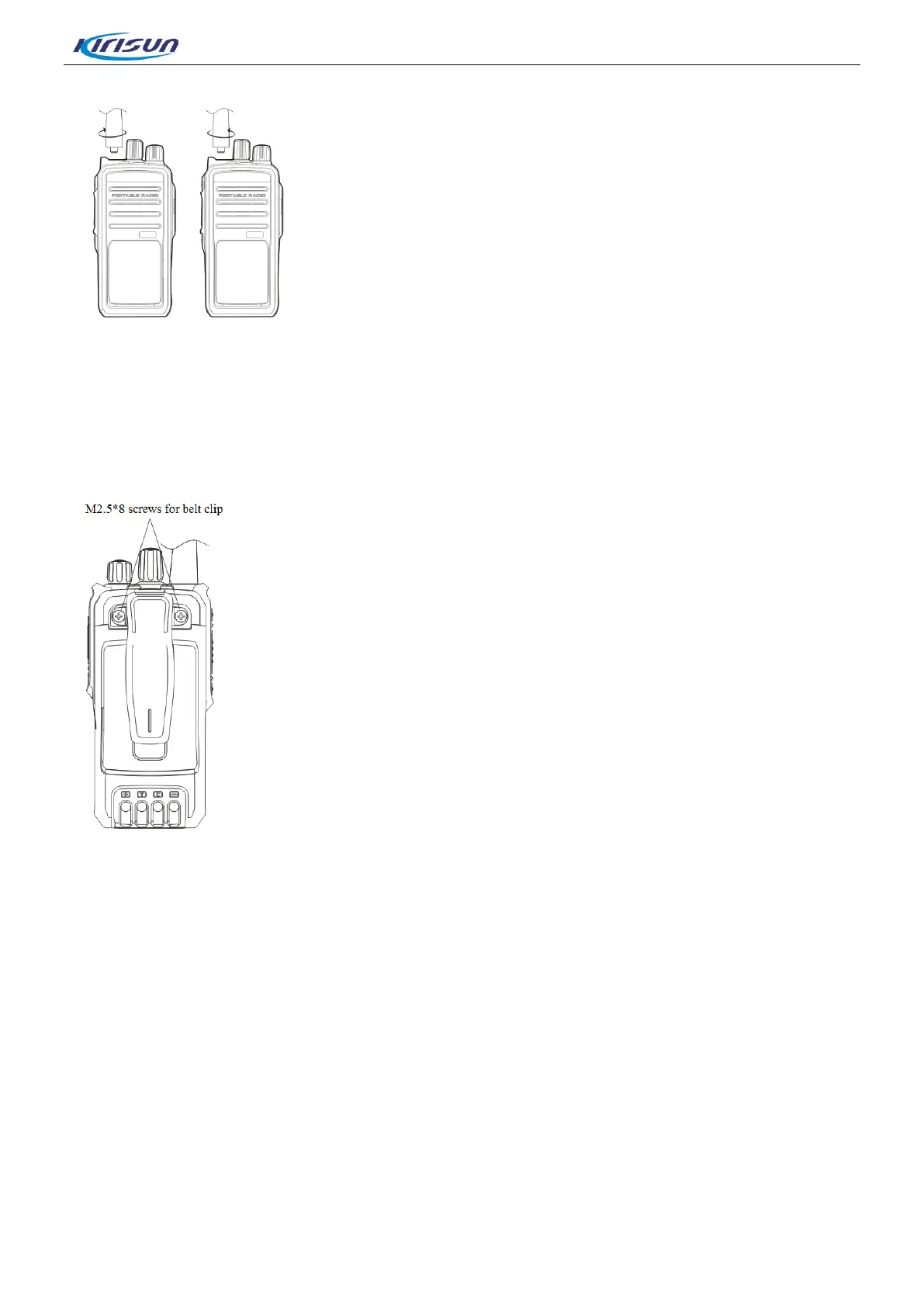

6.3.Installing and Uninstalling Belt Clip
To install the belt clip, align the two screw holes on the belt clip with the two at the back of the radio, and
fasten the clip using two 2.5*8 machine screws.
To uninstall the belt clip, loosen the screws, and then take off the belt clip.
6.4.Using an Earphone
You can use an external earphone. Open the cover board on the right side of the radio, and insert the
earphone plug into the interface.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Kirisun DP485 and is the answer not in the manual?

Kirisun DP485 Specifications

General IconGeneral
Frequency136~174 MHz, 400~470 MHz
Channel Capacity256 channels
Channel Spacing25 kHz/12.5kHz
Antenna Impedance50Ω
Operating Voltage7.4V
Rated Power1W 16Ω
Transmitting Power4W/1W@7.4V DC
Current Consumption≤1.5A@ 7.4V DC
Working Temperature-25℃~ +55℃
Microphone Impedance2.2kΩ
BatteryLithium-ion battery DC 7.4V , 2000mAh
Receiving Sensitivity (12dB SINAD )-120dBm
Squelch Sensitivity (3-level)≤-120dBm
Selectivity of Adjacent Channels70dB@25KHz /60dB@12.5KHz
Intermodulation Immunity65dB@25KHz/12.5 KHz
Blocking84dB
Frequency Stability≤±2.5ppm
Maximum Modulation Offset±5kHz@25KHz /±2.5kHz@12.5KHz
Modulation Distortion≤3%
Spurious Emission≤-36dBm
