KIRLOSKAR KC Series User Manual

18

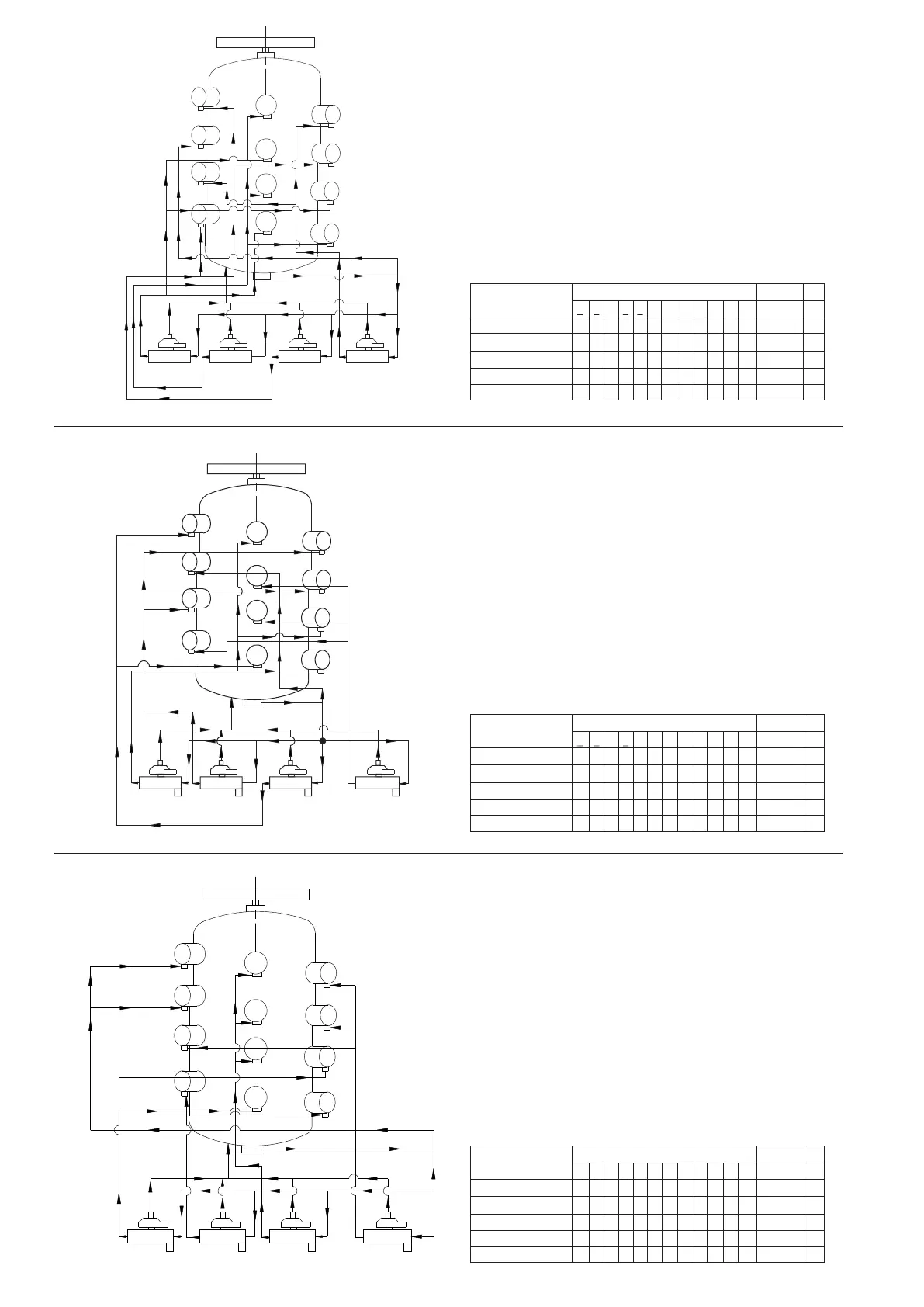

Compressor KC-84 Figure 21
Cyl. Block. No. Capacity Ø
1 2 3 4 5 6 7 8 9 10 11 12 % -
Direct Connection - - - 4- - - - - - - - - -
Solenoid Valve 1 ON - - 44- - 4- - - - - 25 2
Solenoid Valve 2 ON 4- 44- 44- - 4- - 50 2
Solenoid Valve 3 ON 4444- 444- 4- 475 2
Solenoid Valve 4 ON 444444444444100 2
Compressor KC-93 Figure 22
Cyl. Block. No. Capacity Ø
1 2 3 4 5 6 7 8 9 10 11 12 % -
Direct Connection - - - 4- - - - - - - - - -
Solenoid Valve 1 ON - - - 44- - 4- 4- - 33 3
Solenoid Valve 2 ON 4- - 44- - 4- 44- 45 2
Solenoid Valve 3 ON 4- 444444- 44- 78 3.5
Solenoid Valve 4 ON 444444444444100 3
Cyl. Block. No. Capacity Ø
1 2 3 4 5 6 7 8 9 10 11 12 % -
Direct Connection 4- - 4- - - - - - - - - -
Solenoid Valve 1 ON 4- 44- 44- - - - - 30 1.5
Solenoid Valve 2 ON 44444444- - - - 60 3
Solenoid Valve 3 ON 44444444- 4- 480 4
Solenoid Valve 4 ON 444444444444100 5
Compressor KC-102 Figure 23
1
2
3
4
5
6
7
8
9
10
11
12
S.V.NO.4
1 2
S.V.NO.3 S.V.NO.2 S.V.NO.1
1 2 1 2 1 2
1
2
3
4
5
6
7
8
9
1 2
11
12
S.V.NO.4 S.V.NO.3 S.V.NO.2 S.V.NO.1
HP
HP
10
1 2 1 2 1 2
1
2
3
4
5
6
7
8
9
11
12
HP
HP
10
HP
1 2
S.V.NO.4 S.V.NO.3 S.V.NO.2 S.V.NO.1
HP
HP
HP
HP
3 3 3 3
3 3 3 3
1 2 1 2 1 2
3 3 3 3
