KIRLOSKAR KC Series User Manual

41
Figure 42

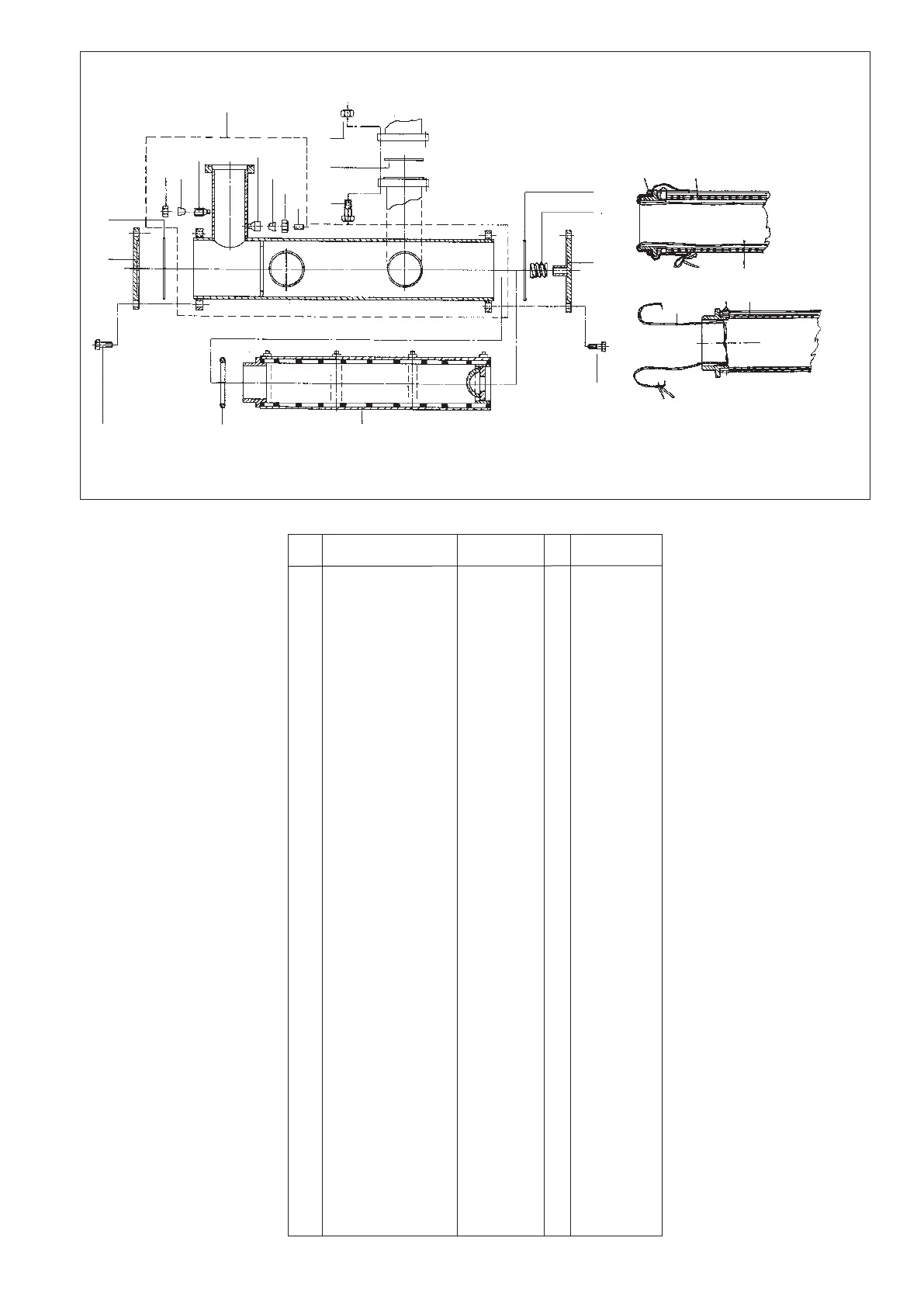

11.12 SUCTION GAS STRAINER ASSEMBLY (Figure No. 42)
Sr. Name of the Part Part No. Qty. Remark
No.
*1a Suction Strainer Housing - 1 For KC2
*1b Suction Strainer Housing - 1 For KC3
*1c Suction Strainer Housing - 1 For KC4, 31
1d Suction Strainer Housing 086.12.010.50 1 For KC6, 63
1e Suction Strainer Housing 080.12.010.50 1 For KC9,72, 102
1f Suction Strainer Housing 090.12.010.50 1 For KC12
1g Suction Strainer Housing 342.12.010.50 1 For KC21
1h Suction Strainer Housing 344.12.010.50 1 For KC 42,51
1.1j Welding Nipple 15 dla 082.01.500.50 1 Upto 6 cyl.comp.
1.1k Welding Nipple 22 dla 082.01.520.50 1 For 9,12 cyl.com
1.2 Welding Nipple 082.01.522.50 1 For 6 dia tube
1.3 Ferrule 999.16.001.50 1 For 6 dia tube
1.4 Union Nut 999.16.063.50 1 For 6 dia tube
1.5 Cylindrical Pin dia 6 999.09.650.50 1
1.6a Ferrule 999.16.019.50 1 For 15 dia tube
1.6b Ferrule 999.16.027.50 1 For 22 dia tube
1.7 Union Nut 999.16.079.50 1 For 15 dia tube
1.8 Union Nut 999.16.087.50 1 For 22 dia tube
2A Gasket 082.28.630.51 2 For 2,3,4 Cyl.
3A Cover 082.12.031.51 1 Compressors
4A Hex Hd Screw M12 x 35 999.01.668.50 16
5A Suc.strainer element assly. 082.12.020.50 1
6A '0' Ring 999.12.898.50 1
7A Cover with spring guide 082.12.030.50 1
8A Spring 082.12.040.50 1
2B Gasket 993.00.311.50 2 For 6,9,12 Cyl.
3B Cover 082.28.110.52 1 Compressors
4B Hex Hd Screw M16 x 35 999.01.690.50 16
5B Suc.strainer element assly. 086.12.020.50 1
6B '0' Ring 999.12.909.50 1
7B Cover with spring guide 086.12.030.50 1
8B Spring 082.12.040.50 1
9A Hex Hd Screw M16 x 35 999.01.696.50 8 Not Required
l0A Gaskets 993.00.30.700 2 For KC2, 3, 4
11A Hex Nut M16 999.06.687.50 8 KC21 & 31 Com.
9B Hex Hd Screw M20 x 80 999.01.755.50 8
10B Gaskets 993.30.30.900 2 & all 2 stage comp.
11B Hex Nut M20 999.06.742.50 8 except KC31 &21
12A Suc. Cloth Bag Filter 082.12.061.50 1 For 2,3,4 Cyl.
Compressors
12B Suc. Cloth Bag Filter 086.12.056.50 1 For 6, 9,12 Cyl.
Compressors
* These suction strainer housings are Included In crankcase assly. wIth
safety valve.
1
11
10
9
2
3
4 6 5
4
7
8
2
1.7 1.6
1.1
1.2
1.3
1.4
1.5
CLOTH FILTER FITMENT ARRANGEMENT
‘O’ RING SUC.
STRAINER
ASSLY.
AFTER INSERT BAG
BAG SIZE
6”Øx36” FOR
2, 3, 4 CYL. COMP.
10”Øx42” FOR
6, 9, 12 CYL. COMP.
6 5
12
BAG
BEFORE INSERT BAG
5
12
