35
Sr. Name of the part Part no. Qty. Remark
No.
1.0 Bearing Cover Assy. 336.02.001.50 1
Drive end
1 .1 Bearing Cover Drive end 336.02.002.50 1
1.2 Pin Cylindrical 999.09.575.50 1
1.3 Bearing Bust (STD) 336.02.003.50 1 *
Drive end
1.4 Stud for Bearing Cover 999.03.683.50 8 M12 x 100 L
2.0 Bearing Cover Assly 082.02.001.50 1
Pump end
2.1 Bearing Cover Pump end 082.28.030.50 1
2.2 Pin Cylindrical 999.09.575.50 1
2.3 Bearing Bush (STD) 082.28.050.50 1 *
Pump end
2.4 Stud for Bearing Cover 999.03.688.50 8 M12 x 125 L
3.0 Intermediate Bearing 086.15.040.50 - Qty as per compr.
Assembly
3.1 Bottom Housing l 1 For KC6- 1 No.
3.2 Bearing Cap l 1 For KC9- 2Nos.
3.3 Connecting Rod Bolt 082.04.040.51 4 For KC12-3Nos.
3.4 Safety Plate 082.04.050.50 4
3.5 Hex Nut M16 x 1.5 082.04.100.51 4
3.6 Bearing Intermediate 086.15.030.50 1
half (STD)
4.0 Thrust ring 336.02.004.50 1 *
5.a Gasket 1.5 thk 082.28.642.50 2 }Either to be used as
5.b Gasket 1.0 thk 082.28.643.50 2 }per end clearances
6.0 Ring Locking 086.28.300.50 3
7.0 Spring Washer M20 999.11.298.50 3
8.0 Hex Hd Screw M20x45 999.01.746.50 3
9.0 Stud M16 x 35 999.03.700.50 32
10.0 Hex Nut M16 999.06.687.50 32
*Available with Crankshaft Bearing Kit only (Spec. No. 0852807)
DETAILS OF UNDERSIZED BEARINGS:
Sr.No. Description Drg. No.
1 .3a Bearing Bush Drive end 336.02.006.50
First undersized (0.125mm)
1.3b Bearing Bush Drive end 336.02.007.50
Second undersized (0.25mm)
2.3a Bearing bush pump end 082.28.051.50
first undersized (0.125mm)
2.3b Bearing Bush pump end 082.28.052.50
Second undersized (0.25 mm)
3.6a Bearing Intermediate half 086.15.031.50
first undersized (0.1 25mm)
3.6b Bearing Intermediate half 086.15.032.50
Second undersized (0.25)
11.3 CRANKSHAFT ASSlY (Figure No. 33)
Sr. Name of the part Part no. Qty Remarks
No.
1A Crankshaft Assly. 336.03.001.50 1 For KC2
complete
1B Crankshaft Assly. 337.03.001.50 1 For KC 3, KC21
complete
1C Crankshaft Assly. 338.03.001.50 1 For KC4, KC31
complete
1D Crankshaft Assly. 339.03.001.50 1 For KC6, KC51,
complete KC42
1E Crankshaft Assly. 340.03.001.50 1 For KC9, KC63,
complete KC72
1F Crankshaft Assly. 341.03.001.50 1 For KC12, KC84,
complete KC93, KC102
1.1 Crankshaft Bare # Included in Sr. 1
1 .2 Counter Weight # Included in Sr. 1
1 .3 Safety Plate 082.28.240.50 1 As required
1.4 Bolt Attaching M16x80 999.01.699.50 2 As required
1.5 Driving Plate 082.28.060.50 1
1.6 Hex Hd Bolt 082.28.062.50 4
1.7 Pin Cylindrical 999.09.678.50 1
1.8 Thrust Ring 336.03.005.50 1
1.9 Spacer Ring Assly. 082.05.000.50 1 For KC2
1.9.1 Distance Ring 082.05.01 0.50 1
1.9.2 Adjusting Bolt 082.05.020.50 2
1.9.3 Safety Plate 082.05.030.50 2
1.9.4 Hex Nut M8 999.06.623.50 2
2.0 Retaining Plate Assly. 336.14.114.50 1
3.0 Locking Plate 336.14.103.50 1
4.0 Plain Washer 999.18.740.50 1
5.0 Hex Hd Screw 999.01.670.50 4
6.0. Shaft Key 082.28.191.50 1

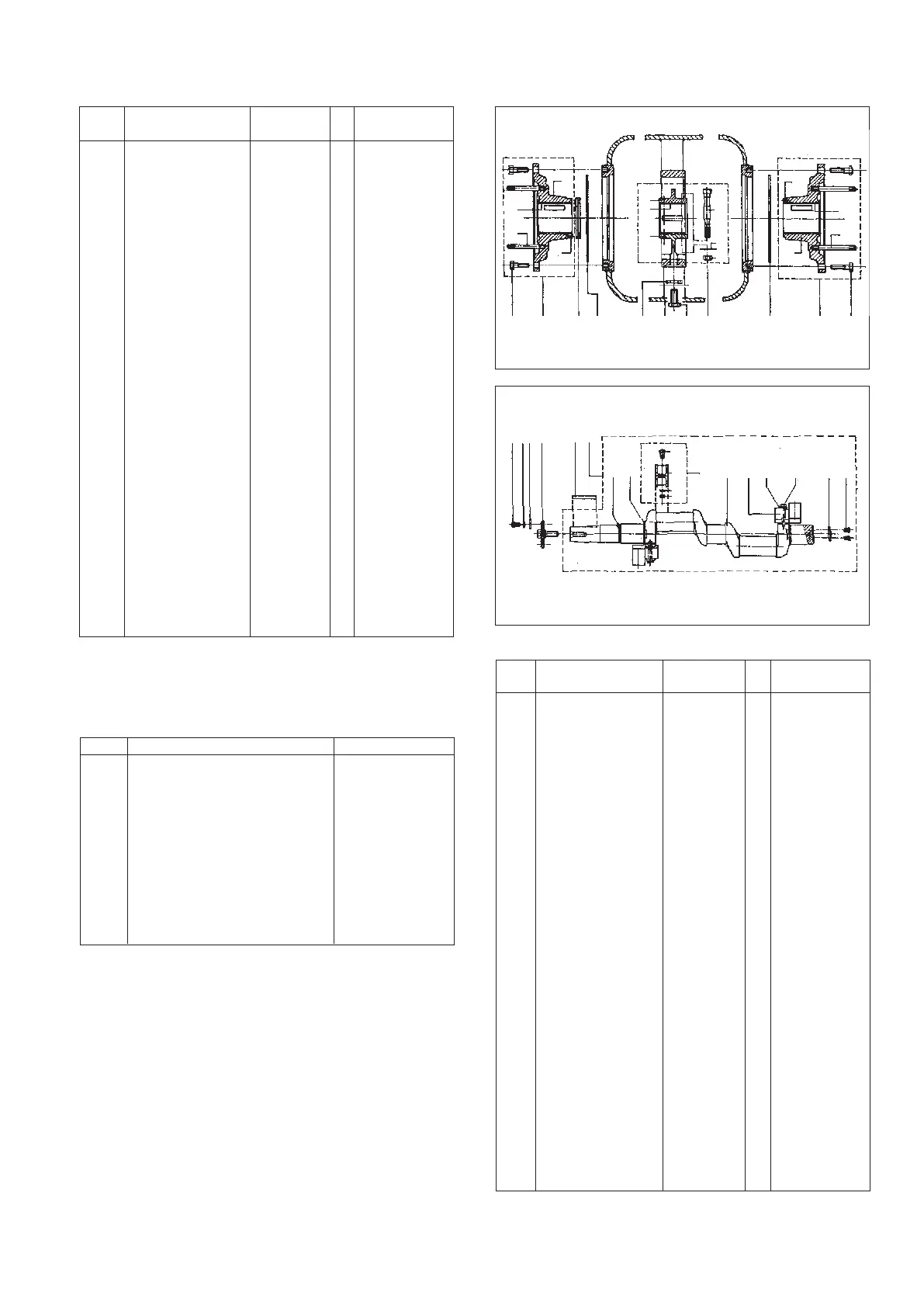

Figure 32
Figure 33
11.2 BEARING COVERS AND INTERMEDIATE
BEARING (FIGURES-32)
# No Loose items are available for spares
2.2
2.3
2.4
92538765419
4
3
1.2
3.1
3.6
3.2
3.3
2.1
3.4
3.5
2345
5
6 1
1.7 1.8 1.9 1.1 1.2 1.3 1.4 1.5 1.61.9.1
1.9.3
1.9.4
1.9.2
