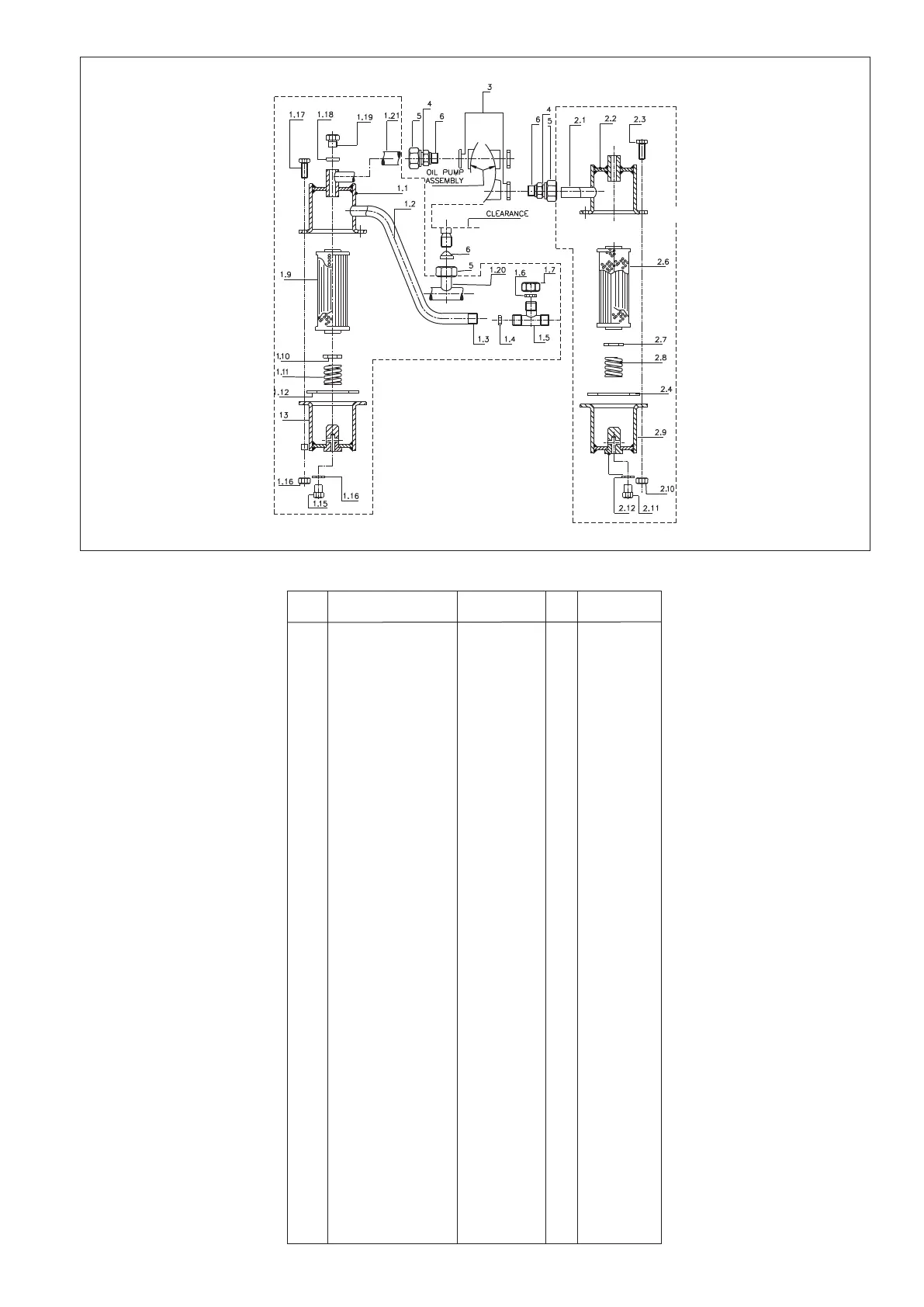

11.10 OIL FILTER ASSEMBLY (Figure No. 40)
Sr. Name of the Part Part No. Qty. Remark
No.
1 Suction Filter Assly. 336.10.023.50 1
1 .1 Top Housing Assly. 336.10.033.50 1
1.2 Pipe Bend l 1 Included in 1.1
1.3 Welding Adaptor l 1 Included in 1.1
1.4 Packing 999.18.525.50 1
1.5 TAH-8 Valve Assly. 351.09.003.50 1
1.6 Packing 999.18.525.50 1
1.7 Cap Nut 082.28.500.50 1
1.8 - - - -
1 .9 Filter wire gauge 336.10.009.50 1 *
1 .10 Spacer Ring 336.10.007.50 1
1 . 11 Spring 336.10.006.50 1
1 .12 Gasket 085.06.410.50 1 *
1 .13 Bottom Housing Assly. 336.10.034.50 1
1 .14 Hex Nut M 1 0 999.06.632.50 8
1.15 Plug 1/4" BSP 082.07.230.50 1
1 .16 Packing 999.18.525.50 1
1 .1 7 Hex Hd Screw M 1Ox30 999.01.369.50 8
1 .18 Packing 999.18.537.50 1
1 .19 Plug 1/2" BSP 082.28.920.50 1
1.20 Pipe 22 Dia - 1 Included in 1.1
1.21 Pipe 22 Dia - 1 Included in 1.1
2 Discharge Filter Assly. 336.10.031 .50 1
2.1 Pipe l 1 Included in 2.2
2.2 Top Housing Assly. 336.10.032.50 1
2.3 Hex Hd Screw Ml0 x 30 999.01.369.50 8
2.4 Gasket 085.06.410.50 1 *
2.5 - - - -
2.6 Paper Filter 351.09.014.50 1 *
2.7 Spacer Ring 336.10.007.50 1
2.8 Spring 336.10.006.50 1
2.9 Bottom Housing Assly. 336.10.034.50 1
2.10 Hex Nut Ml0 999.06.632.50 8
2.11 Plug 1/4" BSP 082.07.230.50 1
2. 12 Packing 999.18.525.50 1
3. Packing 999.18.548.50 2
4. Ferrule 999.16.027.50 3 For 22 Dia
5. Union Nut 999.16.087.50 3 tubing
6. Socket Union Screw 999.16.267.50 2
- Socket union screw Assly. 998.16.867.50 - Consist of Item 4,5,6
*AVAILABLE WITH OIL FILTER KIT ONLY (SPEC. NO.0852803)
Figure 40
