KIRLOSKAR KC Series User Manual

36
Sr. Name of the part Part no. Qty Remark
No.
1 Piston Assy 082.03.000.50 - As reqd
1.1 Gudgeon Pin 082.03.020.50 1 *
1.2 Piston 082,03.110.50 1
1.3 Plate Safety 082.03.040.50 1
1.4 Bolt Safety 082.03.030.50 1
1.5 Set of piston Rings 082.03,150.00 1
2 Connecting Rod Assy 082.04.000.50 - As reqd
2.1 Gudgeon Pin Bush 082.04.020,50 1 *
2.2 Connecting Rod with bolt 082.04.070.50 1
2.2.1 Big End Brg half STD 082.04.030.50 1 *
2.2.2 Connecting Rod bolt 082.04.040.51 2
2.2.3 Lock Plate 082.04.050.50 2
2.2.4 Hex Nut 082.04.100.51 2
* Available with Cylinder Maintenance Kit only (Spec. No. 0852806)

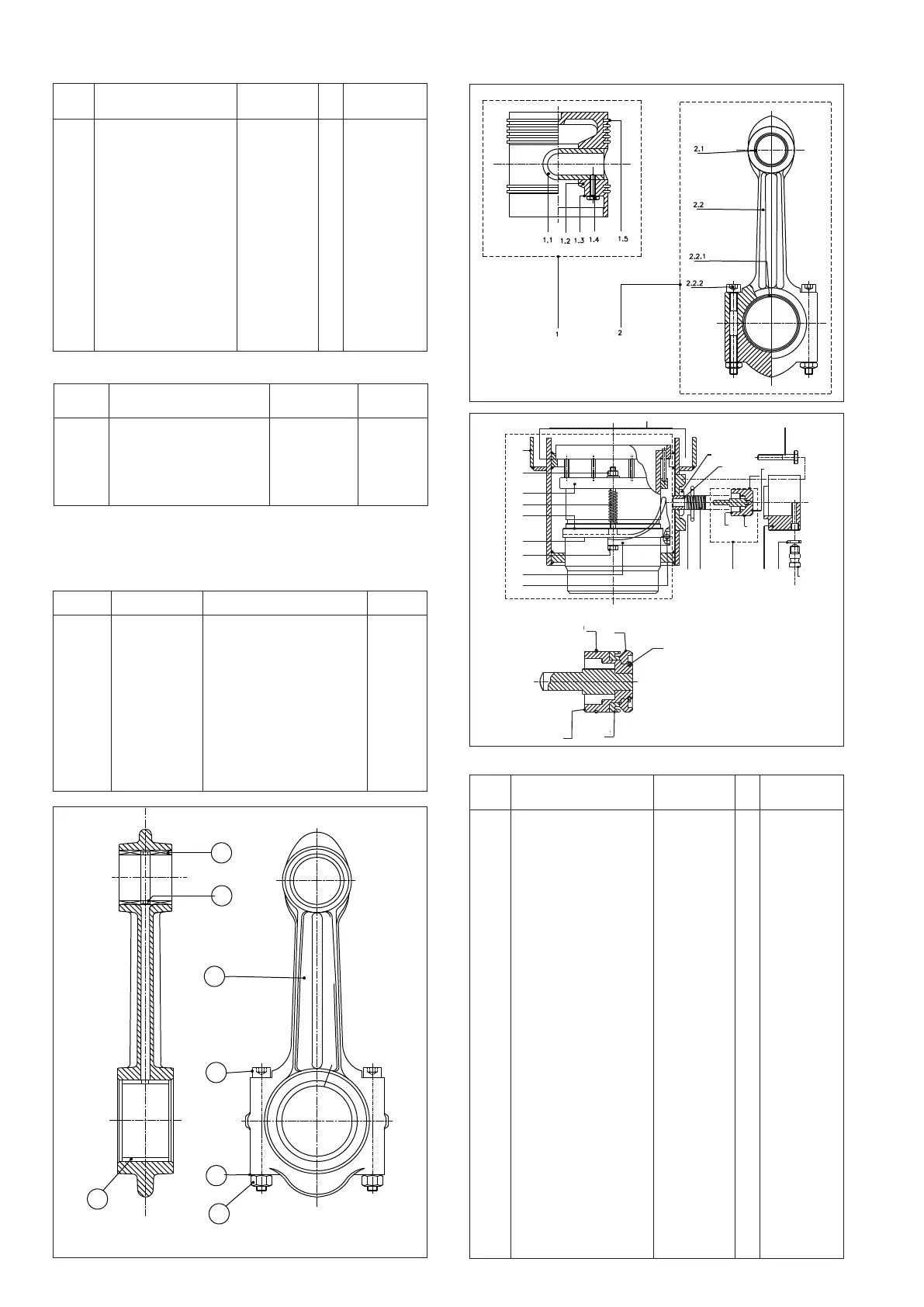

11.4 PISTON & CONNECTING ROD
(FIGURE-34)
Sr. Name of the Part Part No. Remark
No.
2.2.1.0 Big End Bearing Half 082.04.031.50
First undersized (0.25mm)
2.2.1.b Big End Bearing Half 082.04.032.50
Second undersized (0.50mm)
ITEM NO. DRAWING NO. DESCRIPTION QTY.
1 . 082.04.001.50 CONNECTING ROD ASSLY. 1
1 .1 082.04.002.50 NEEDLE ROLLER BEARING 2
1.2 082.04.003.50 SPACER FOR NRB 1
1.3 082.04.030.50 BIG END BEARING SET 1
1.4 082.04.071.50 CONN. ROD WITH BOLT 1
1.4.1 082.04.040.51 BOLT CONN. ROD 2
1.4.2 082.04.100.51 HEX.NUT M 16X1.5 P 2
1.4.3 082.04.050.50 SAFETY PLATE 2
11.5* CONNECTING ROD ASSEMBLY WITH
NEEDLE ROLLER BEARING (FOR TWO STAGE
COMPRESSOR ON H.P. SIDE ONLY (FIGURES-35)
Sr. Name of the part Part no. Qty Remark
No.
1 Cylinder Liner Assly. 336.04.000.50 - Qty as per Com
1.1 Cylinder Liner 336.04.001.51 1
1.2 Hex Nut M6 999.06.616.50 4
1.3 Pressing Ring Assly. 082.10.01 0.50 1 *
1.4 Spring 082.10.050.50 2 *
1.5 Ring with Hinged point 082.10.030.50 1 *
1.6 Curtain Spring 082.10.080.50 1 *
1.7 Top Bolt M6 x 140 082.10.012.50 2 *
1.8. Lever 082.10.040.51 1 *
1.9 Fulcrum Pin 336.40.406.50 1 *
1.10 Washer Plane 999.18.700.50 1 *
1.11 Split Pin 999.30.251.50 1 *
2A Gasket 1.5 Thk. 082.28.670.50 1 To be selected
2B Gasket 0.5 Thk. 082.28.671.50 1 as per Assly.
2C Gasket 1.0 Thk. 082.28.672.50 1 requirement
3 Hex Hd Bolt M10 x 70 999.01.655.50 4
4 '0' ring 999.12.70'3.50 1
5 Spring 336.05.002.50 1 Except HP
cylinders
6 Unloader Piston Assly. 336.05.007.50 1
6.1 Unloader Piston Complete 336.05.001.50 1
6.2 Teflon Ring 336.05.006.50 1
6.3 Spacer Ring 336.05.005.50 1
6.4 Clrcllp 999 .13.581.50 1
6.5 '0' Ring 999.12.705.50 1
7 Housing for Piston 082.10.090.51 1
8 Packing 999.18.525.50 1
9 Union Socket Screw Assly. 998.16.243.50 1
10 Set Nipple 082.28.270.50 1
11 Locking Nut 336.05.008.50 1
11.6 CYLINDER LINER AND VALVE LIfTING MECHANISM (Figure No. 36)
* Ask Kit Liner Part Spec. No. - 0852810
Figure 35
Figure 34
Figure 36
1.1
1.2
14
14.1
14.3
14.3
13
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
11
10
6.3
6.4
6.1
6.2
4 5 8 7 8
9
3
2
6.5
6.3
6.4
6.1
6.2
