KIRLOSKAR KC Series User Manual

43
11.16 PRESSURE GAUGES AND PRESSURE CUT-OUTS
Sr. Name of the part Part No. Remark
No.
A. Pressure Cut-Outs :
1 LP Pressure Cut -outs M P-1 999.52.069.01 For R12, R22
2 LP Pressure Cut-outs MP-1A 999.52.069.02 For Ammonia
3 HP Pressure Cut-uts MP-5R 999.52.069.03 For R12, R22
4 HP Pressure Cut-outs MP 5AR 999.52.069.04 For Ammonia
5 HP/LP pressure cut-outs MP-15R 999.52.069.05 For R12, R22
6 HP/LP pressure cut-outs MP-15AR 999.52.069.06 For Ammonia
7 LP/OP pressure cut-outs MP-55R 999.52.069.07 For R12, R22
8 LP/OP pressure cut-outs MP-55AR 999.52.069.08 For Ammonia
B. Pressure Gauges :
1 Discharge Pressure Gauge 996.00.210.05
2
-760 Hg to 25 Kgf/cm , R22
2 Discharge Pressure Gauge 996.00.220.02
2
-760 Hg to 25 Kgf/cm , NH3
3 Discharge Pressure Gauge, 996.00.210.03
2
-760 Hg to 16 Kgf/cm , R12
4 Suction/Oil Pressure Gauge 996.00.210.04
2
-760 Hg to 16 Kgf/cm , R22
5 Suction/Oil Prssure Gauge 996.00.220.01
2
-760 Hg to 16 Kgf/cm , NH3
6 Suction/Oil Pressure Gauge 996.00.210.03
2
-760 Hg to 16 Kgf/cm , R12
Figure 44
5
6
7
14
4
8
3
8
12
13
11
2
1

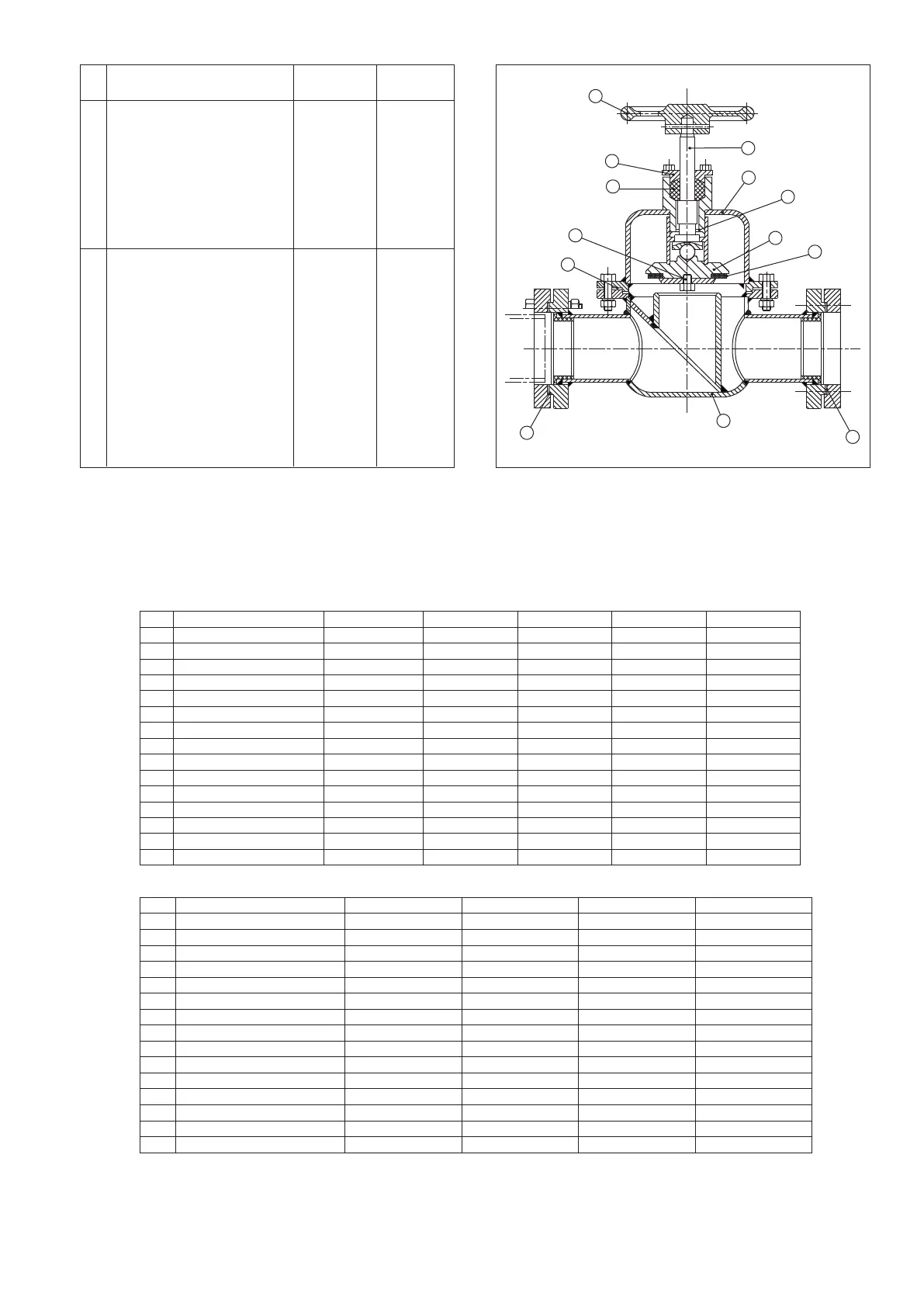

11.15 STOP VALVE ASSEMBLY FOR KC SERIES (Fig. 44)
Sr. Description TYPE 50 TYPE 50/70 IN TYPE 70 TYPE 70/80 T AL80
No. 085.06.001.50 085.89.001.50 085.07.001.50 085.91.001.50 085.08.001.50
1 Spindle assembly 085.06.415.50 085.06.415.50 085.07.415.50 085.07.415.50 085.08.415.50
1.1 Teflon ring top 085.04.490.50 085.04.490.50 085.07.490.50 085.07.490.50 085.07.490.50
1.2 Teflon seat bottom 085.06.500.50 085.06.500.50 085.07.500.50 085.07.500.50 085.08.500.50
1.3 Supporting disc 085.06.037.50 085.06.037.50 085.07.037.50 085.07.037.50 085.08.037.50
1.4 Hex screw 999.01.619.50 999.01.616.50 999.01.661.50 999.01.661.50 999.01.661.50
2 Top housing 085.06.381.50 085.06.380.50 085.07.381.50 085.07.380.50 085.07.381.50
3 Bottom housing 085.06.310.50 085.89.310.50 085.07.310.50 085.91.310.50 085.08.310.50
4 Gasket between top & 085.06.410.50 085.06.410.50 993.00.310.00 993.00.310.00 993.00.310.00
bottom housing
5 Hand wheel 085.20.022.50 085.20.022.50 - 085.26.022.50 085.26.022.50
6 Gland bush 085.06.024.50 085.07.024.50 085.07.024.50 085.07.024.50 085.07.024.50
7 Gland packing 5x5 sq. 085.06.026.50 085.06.026.50 085.07.025.50 085.07.025.50 085.07.025.50
8 Gasket for sq. flange IN 993.00.306.00 993.00.306.00 993.00.307.00 993.00.307.00 993.00.308.00
9 Gasket for sq. flange OUT 993.00.306.00 993.00.307.00 993.00.307.00 993.00.308.00 993.00.308.00
Sr. Description TYPE 80/100 TYPE 100 TYPE 100/125SPL TYPE 100/150SPL
No. 0859200150 0850900150 0850970150 0850980150
1 . Spindle assembly 085.08.415.50 085.09.415.50 085.09.415.50 085.09.415.50
1.1 Teflon ring top 085.07.490.50 085.07.490.50 085.07.490.50 085.07.490.50
1.2 Teflon seat bottom 085.08.500.50 085.09.500.50 085.09.500.50 085.09.500.50
1.3 Supporting disc 085.08.037.50 085.09.037.50 085.09.037.50 085.09.037.50
1.4 Hex screw 999.01.661.50 999.01.662.50 999.01.662.50 999.01.662.50
2 Top housing 085.07.380.50 085.09.381.50 085.09.381.50 085.09.381.50
3 Bottom housing 085.92.310.50 085.09.310.50 085.09.710.50 085.09.810.50
4 Gasket between top & 993.00.310.00 085.09.410.50 085.09.410.50 085.09.410.50
bottom housig
5 Hand wheel 085.26.022.50 085.26.022.50 085.26.022.50 085.26.022.50
6 Gland bush 085.07.024.50 085.07.024.50 085.07.024.50 085.07.024.50
7 Gland packing 5x5 sq. 085.07.025.50 085.07.026.50 085.07.026.50 085.07.026.50
8 Gasket for sq. flange IN 993.00.308.00 993.00.309.00 993.00.310.00 993.00.311.00
9 Gasket for sq. flange OUT 993.00.309.00 993.00.309.00 993.00.310.00 993.00.311.00
