11 .11 LUBRICATING OIL LINES (Figure No. 41)
Sr. Name of the Part Part No. Qty. Remark
No.
1 . Oil Line number A 336.14.125.50 1 Oil pump toOPR*
1 .1 Packing 999.18.548.50 1 OPR*
1.2 Reducing Nipple 336.14.111.50 1
1.3 Ferrule 999.16.019.50 1 For 1 5 dia
1.4 Union Nut 999.16.079.50 1 Tubing
1.5 Pipe Bend 15 dia 330.24.002.50 1
2 Oil Line Number B 336.14.126.50 1 OPR* to c'case
2.1 Ferrule 999.16.019.50 1 for 1 5 dia
2.2 Union Nut 999.16.079.50 1 Tubbing
2.3 Pipe 15 dia 330.24.003.50 1
3 Oil Pressure Regulator 082.11.009.50 1
3.1 Housing Assly. 082.09.010.51 1
3.2 Packing 999.18.537.50 1
3.3 Spring 082.09.020.50 1
3.4 Ball Dia 16 999.30.785.50 1
3.5 Set Pin 082.09.030.50 1
3.6 '0' Ring 999.12.627.50 1
3.7 Nipple 1/2" BSP 082.09.040.50 1
3.8 Packing 999.18.525.50 1
3.9 Blind Union Nut 082.28.500.50 1
4 Oil Line Number C 336.14.127.50 1 Oil Pump over
4.1 Union Soc. Screw Assly 998.16.259.50 1 flow to c'case
4.2 Packing 999.18.537.50 1
4.3 Ferrule 999.16.019.50 2 For 15 dia
4.4 Union Nut 999.16.079.50 2 Tubing
4.5 Pipe Bend 15 dia 082.23.001.50 1
5 Oil Line Number D As below Discharge filter
to shaft seal.
5a Oil Line Number D 336.14.128.50 1 For KC2, 3, 21
5b Oil Line Number D 338.03.128.50 1 For KC4, 31
5c Oil Line Number D 339.03.12.850 1 For KC6,42, 51
5d Oil Line Number D 340.03.128.50 1 For KC9,63,72
5e Oil Line Number D 341.03.128.50 1 For KC12,93,
84,.102
5.1 Union Soc.Screw Assly. 998.16.259.50 1
5.2 Packing 999.18.537.50 2
5.3a Bend Pipe 15 dia 336.14.129.50 1 For KC2, 3, 21
5.3b Bend Pipe 15 dia 338.03.129.50 1 For KC4, 31
5.3c Bend Pipe 15 dia 339.03.129.50 1 For KC6,42, 51
5.3d Bend Pipe 15 dia 340,03.129.50 1 For KC9,63, 72
5.3e Bend Pipe 15 dia 341.03.129.50 1 For KC1, 2,84,.
93,102
5.4 Union Soc.Screw Assly. 998.16.259.50 1
* Oil Pressure regulator

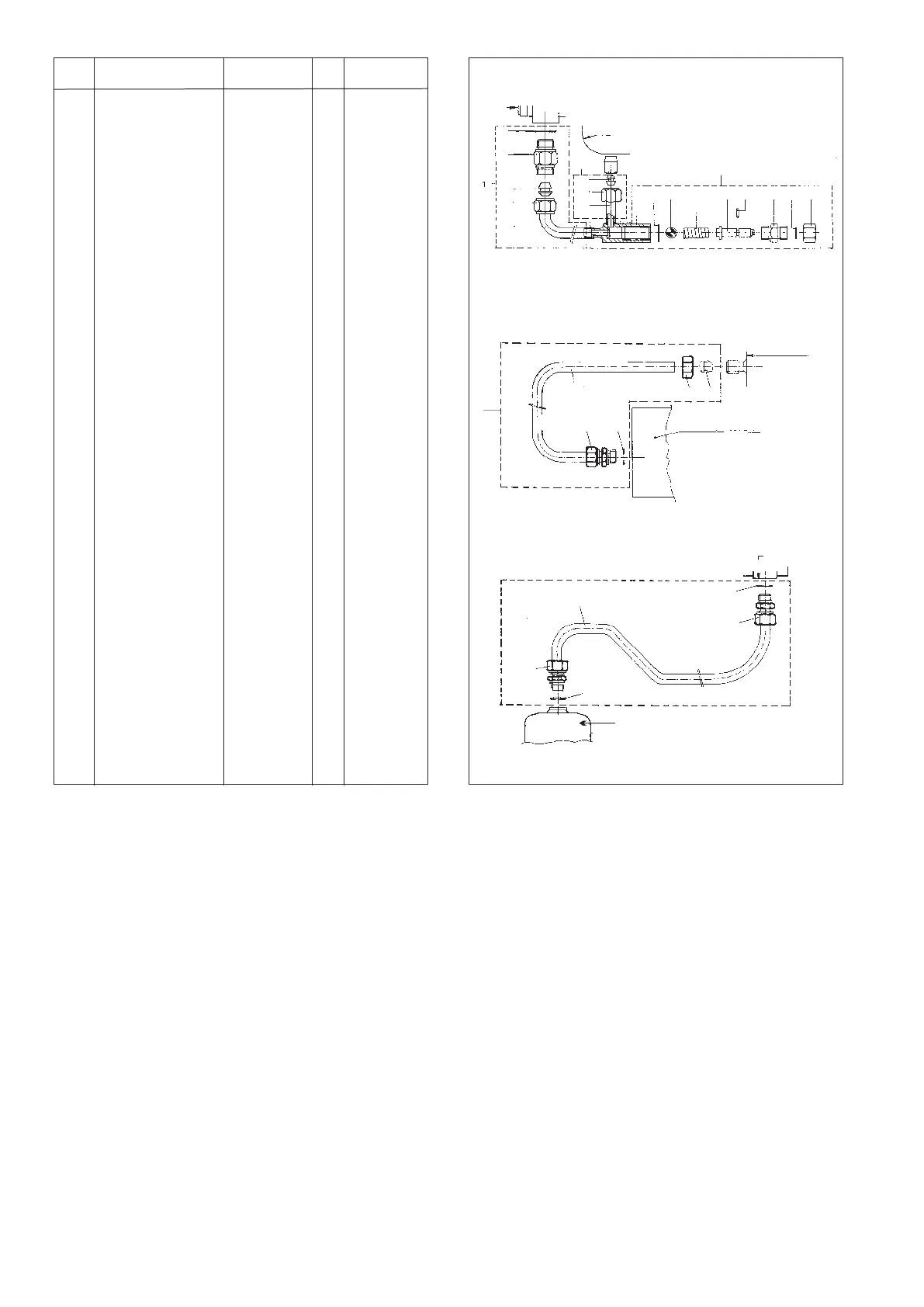

Figure 41
}
}
1.1
1.2
1.3
1.4
1.5
2
2.1
2.2
2.3
3.1
3.2
3.3
3.4
3.5
3.6
3.7 3.8 3.9
3
OIL PUMP
HSG.
1
CRANK CASE
4.5
4.4
4.3
4
4.1
4.2
OIL PUMP COVER
CRANK CASE
5.2
5.1
5.3
5.4
5.2
5
SHAFT SEAL COVER
DISCHARGE OIL FILTER
