KIRLOSKAR KC Series User Manual

37

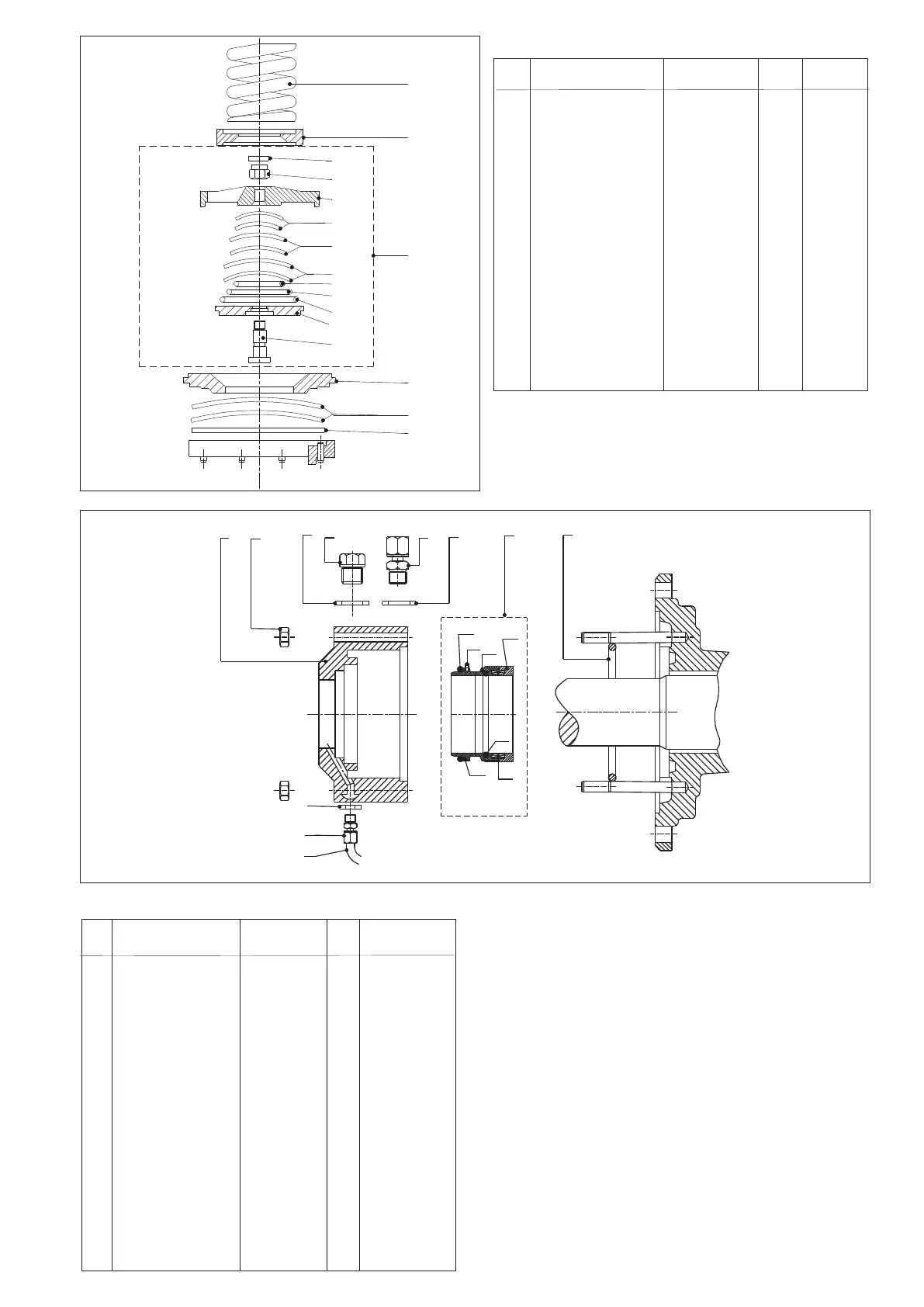

11.7 SUCTION & DISCHARGE VALVE ASSLY.(Figure No. 37)
Sr. Name of the Part Part No. Qty. Remark
No.
1 . Buffer spring 082.28.090.50 1
2. Cup Spring 336.12.011.50 1
3. Delivery Valve Assly. 336.12.003.50
3.1 Split Pin 999.30.265.50 1
3.2 Castle Nut 999.06.692.50 1
3.3 Stroke Limitor 336.12.005.50 1
3.4 Spring Valve Discharge 082.11.120.50 2 *
3.5 Spring Valve Discharge 082.11.110.50 2 *
3.6 Spring Valve Discharge 088.06.150.50 2 *
3.7 Ring Valve Discharge 082.11.040.50 1 *
3.8 Ring Valve Discharge 082.11.030.50 1 *
3.9 Ring Valve Discharge 088.06.040.50 1 *
3.10 Delivery Valve Seat 336.12.004.51 1
3.11 Centre Bolt 336.12.006.50 1
4. Suction Strock Limitor 336.12.002.51 1
5. Suction Valve Spring 336.12.001.50 2
6. Suction Valve Ring 082.28.130.50 1
* AVAILABLE WITH DELIVERY VALVE KIT ONLY (SPEC.NO. 0852808)
11.8 SHAFT SEAL ASSEMBLY (Figure No. 38)
Sr. Name of the Part Part No. Qty. Remark
No.
1. Shaft Seal Cover 082.28.160.50 1
2. Hex Nut M 1 2 999.06.650.50 8
3. Packing 999.18.525.50 1
4. Blind Plug 1/4" BSP 082.07.230.50 1
5. Union Soc. Screw. 998.16.241.50 1 For 15 Dia tube
6. Shaft Seal 082.08.000.50 1
6.1 Rotary Sealing ring .
6.2 o ring outer 082.08.070.50 1 *
6.3 o ring inner 082.08.060.50 1 *
6.4 Set Screw M4 x 8 . 4
6.5 Stationary Sealing Ring . 1
6.6 Spring . 12
6.7 Pressing Ring . 1
7. O Ring 082.28.280.50 1 *
8. Packing 999.18.520.50 1
9. Union Soc. Screw. 998.16.241.50 1
10. Oil Drain .Tube 336.03.122.50 1
* INCLUDED IN ITEM NO.6
* AVAILABLE WITH SEAL '0' RING KIT ONLY (SPEC. NO. 0852804)
Figure 38
Figure 37
1
2
3
4
5
6
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10
3.11
1
2
3
4
5
3
6
7
6.2
6.7
6.4
6.1
6.3
6.6
6.5
8
9
10
