KIRLOSKAR KC Series User Manual

17
19
20
13 14 15
11 10 9 16A & 16B
16
18A & 18B
12
1
2
3
20
19
17
4 & 5

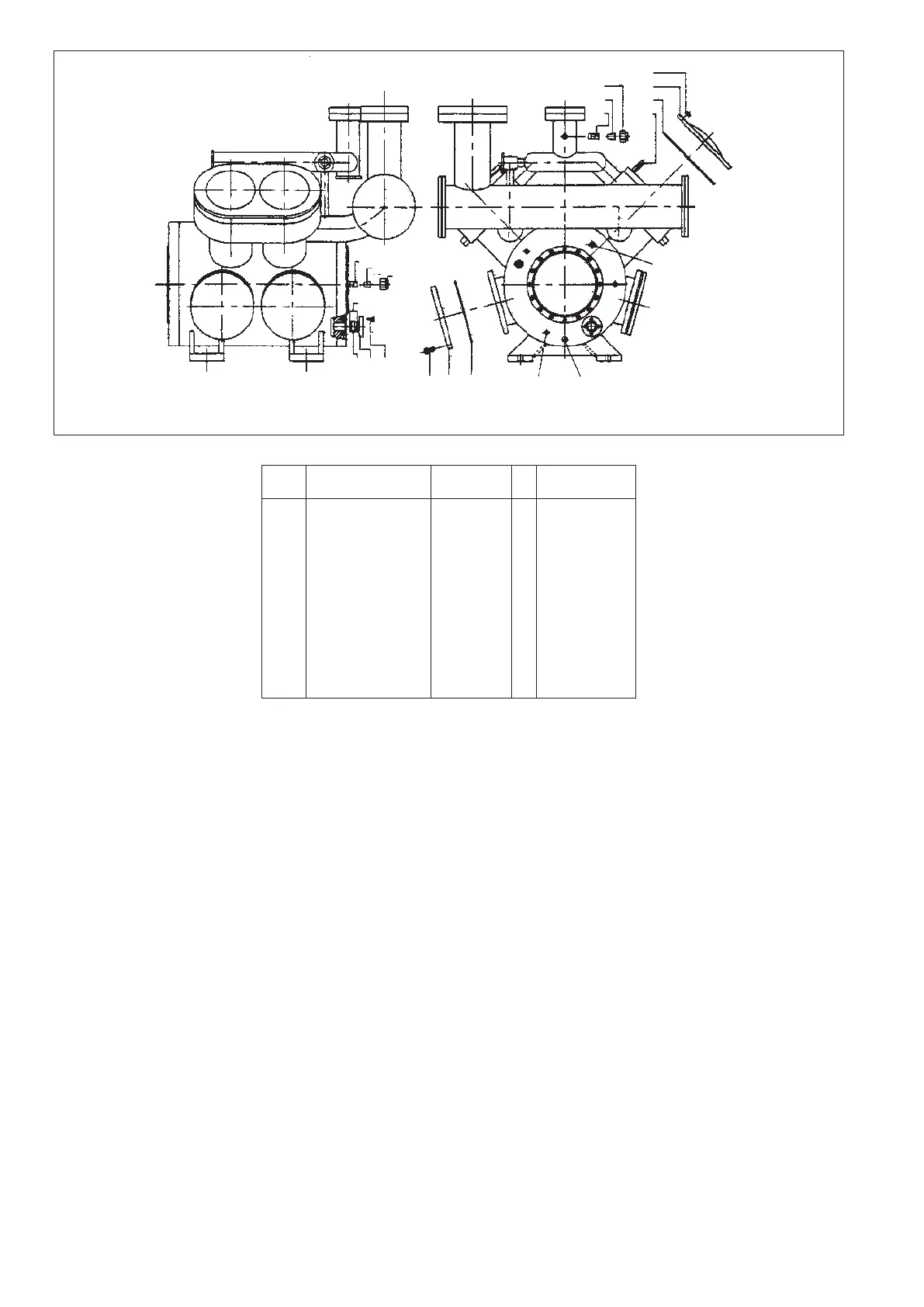

Figure 31A
Sr. Name of the part Part no. Qty. Remark
No.
1C Crankcase assly. 084 01 002 50 1 For KC 4
IH Crankcase assly. 343 01 002 50 1 For KC 31
12 Gasket for sight glass 351 09 013 50 2 -
13 Oil level glass 351 09 043 50 I -
14 Retaining plate 351 09 015 50 1 -
15 Hex. Hd.Screw M8x25 999 01 623 50 4 -
16 Union socket screw 999 16 267 50 1 For 22 Dia tube
16A Union socket screw 999 16 259 50 3 -
16B Aluminium washer 999 18 537 50 3 -
17 Welding Nipple 082 01 500 50 1 For 15 Dia tube
18 Welding Nipple 082 01 522 50 1 For 6 Dia tube
18A Union socket screw 999 16 543 50 1 For 6 Dia tube
18B Aluminium washer 999 18 525 50 1 -
NOTE: OTHER COPONENTES ARE SIMILER TO FIG.31
