KIRLOSKAR MEGA T User Manual
5
of 1
of 1 rating
123 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
KIRL
OSKAR OIL ENGINES LIM
ITED
12
Mega T 12 LW
- S
Model

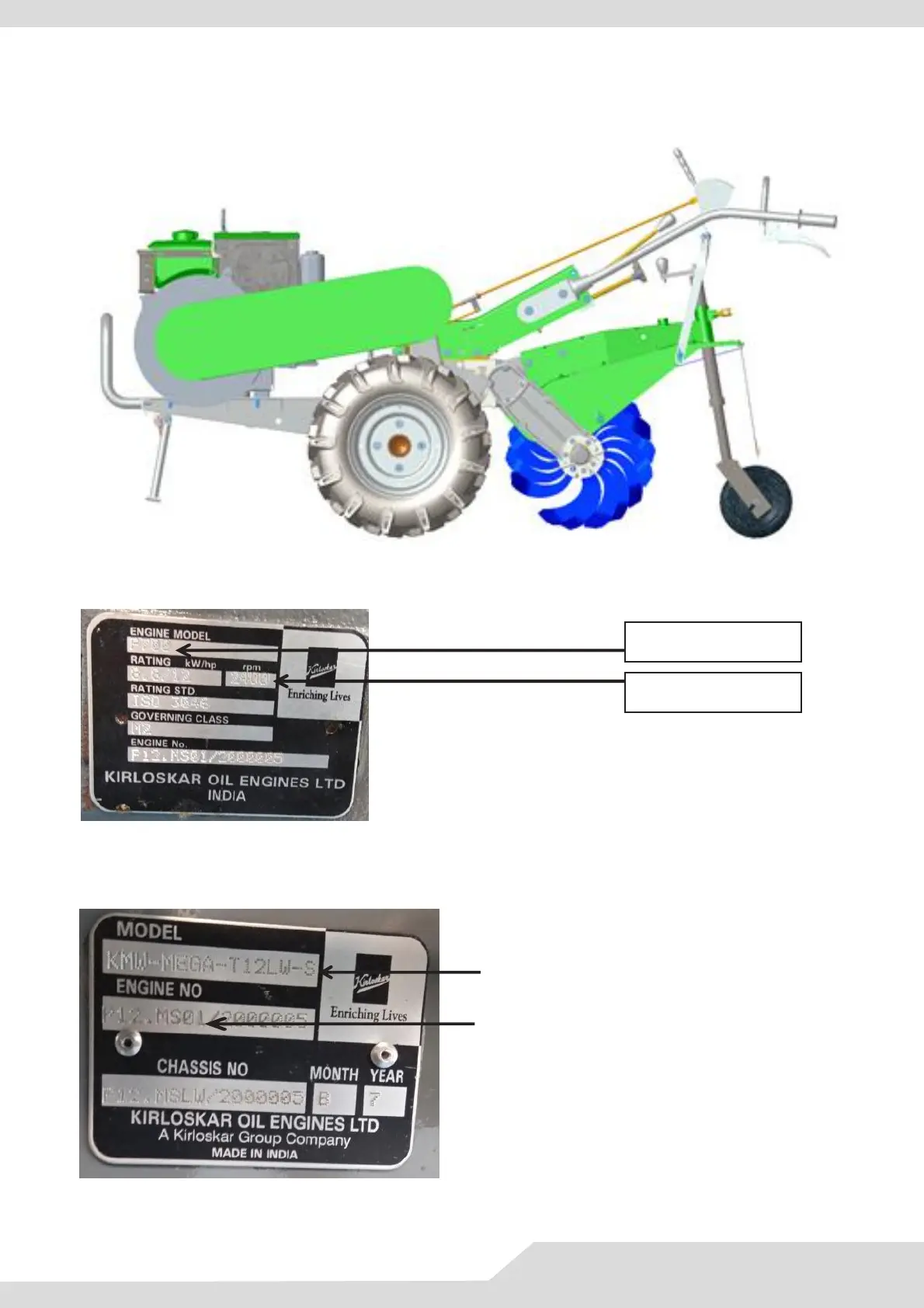

5.2 Chassis & Engine Number Plate for Mega T 12 LW
- S
Model Name: KMW MEGA T 12
LW - S
P12.
MS01
-12 HP Low Weight
Engine Model: P70
0
Rated RPM: 2400
Chassis Numb
er Plate
Engi
ne Num
ber Plate
17
19
Table of Contents
Default Chapter
5
Table of Contents
5
1 MEGA T Warranty Period and Warranty Policy Guide Lines
7
Warranty Period
7
Warranty Policy Guide Lines
7
2 Warranty Registration Card / Sale Intimation
8
3 Card Technical Specifications-Mega T12LW - S
10
4 Safety Precautions and DOS & DON'TS
12
Safety Precautions of MEGA T
12
Dos
12
Field Operation
13
Travelling with Trailer
13
Maintenance & Storage
13
Don'ts
14
Recognize Decal Information
15
Product View and Parts Identification
17
5 Equipment Familiarization & Locations View
17
Equipment View
17
Chassis & Engine Number Plate
18
6 Controls Familiarisation & Operating Instructions
19
Accelerator (Throttle) Control Lever
19
Clutch & Parking Brake Control
20
Clutch Engage & Disengage Lever & Parking Brake Lever
21
Parking Brake Position
21
Steering Control
21
Gear Shifting
22
Main Gear Shifter Lever
22
High Low Range Selection Lever
22
Rototiller Speed Selection Gears
22
Side Power Take off Option (PTO)
23
Diesel and Water Filling Locations with Caps
23
Side Flap for Rotary Tiller
24
Air Cleaner Assembly
24
Front Stand
25
7 Engine Starting Process
25
Engine off & on Position
26
8 MEGA T Adjustments and Settings
26
Belt Tension Adjustments
26
Clutch Adjustment and Setting
27
Main Clutch and Brake Pull Rod Adjustments
28
Clutch Pull Rod Adjustment
28
Parking Brake Adjustment
28
Steering Adjustment
29
Throttle Control System Adjustment
30
Wheel Track Width Changing Procedures
31
Main Transmission Chain
32
Rototiller Transmission Chain Adjustment
32
Rototiller Shaft Speed Changing Procedure
33
Tiller Shaft Blade Mounting Sequence and Blade Types
33
Blade Mounting Sequence on Tiller Shaft
34
Double Hole Blades with Rototiller Shaft for SCC Models
34
Centralized Rotor Assembly (12 HP)
34
Special Designed Side Panel, Brace Plate and Chain Cover for (12 HP)
35
Height & Position Setting Working Depth
35
Rototiller Reverse Locking
35
9 Maintenance Schedule
36
Maintenance Chart
36
Lubrication Specification Chart
37
Free Service Schedule
37
Engine Maintenance
37
Engine Oil Change Procedure
37
Engine Cooling System
38
Engine Cooling Fins Cleaning Procedure
38
Engine Cooling Water Level Check & Top up Procedure
38
Air Filter Oil Change & Cleaning Procedure
39
Fuel Filters Change Procedure
40
Transmission Oil Change Procedure
40
Tyre Air Pressure Specification Chart
41
10 Troubleshooting Engine
41
11 Troubleshooting Transmission
42
Engine Parts Catalogue
44
Parts Index
48
Cylinder Block Assembly (Crank Case)
49
Radiator Cooling System
51
Fan Assembly
53
Transmission Assembly
55
Cylinder Head Assembly
57
Piston and Connecting Rod Assembly
59
Crankshaft and Flywheel Assembly
61
Camshaft Assembly
63
Balancer Assembly
65
Intake System Assembly
67
Exhaust System Assembly
69
Lubrication System Assembly
71
Fuel Delivery Assembly
73
Governor and Controller Assembly
75
CCV Unit Assembly
77
Gear Box Assembly
80
Bull Housing Assembly LH
82
Bull Housing Assembly RH
84
Clutch Assembly
86
Chain Transmission Case
88
Chassis Frame Assembly
90
Top Cover Assembly
92
Throttle, Clutch and Brake Controls
94
Steering Control, Gear Shifting and Handle Bar Frame
96
Drive Wheel Assembly
98
Tail Wheel Assembly
100
Rototiller Gear Box Assembly
102
Rototiller Transmission and Shaft Assembly
104
Rototiller Cover Assembly
106
Sheet Metal Assembly
108
V-Belts
110
Electrical System
112
PCI Check List
119
5
Based on 1 rating
Ask a question
Give review
