6.5 Gear Shifting
6.5.1 Main Gear Shifter Lever
6.5.2 High Low Range Selection Lever
6.5.3 Rototiller Speed Selection Gears
• Use to move & change the speed & Torque of the machine.
• Shift gear shifter as shown in fig. 1 according to various working speeds required and condition.
• Total 6 forward speeds and 2 reverse speeds given, supported by selecting of high low range
selec
tion gears.
Warning:
Shift all the gears when the Clutch is in disengaging position.
• Selecting of H/L ranges lever to get, High or Low speed with
the help of lever.
• Select rototiller gear lever to LH
to low rpm speed of tiller shaft.
• Select rototiller gear lever to RH
to high rpm speed of tiller shaft.

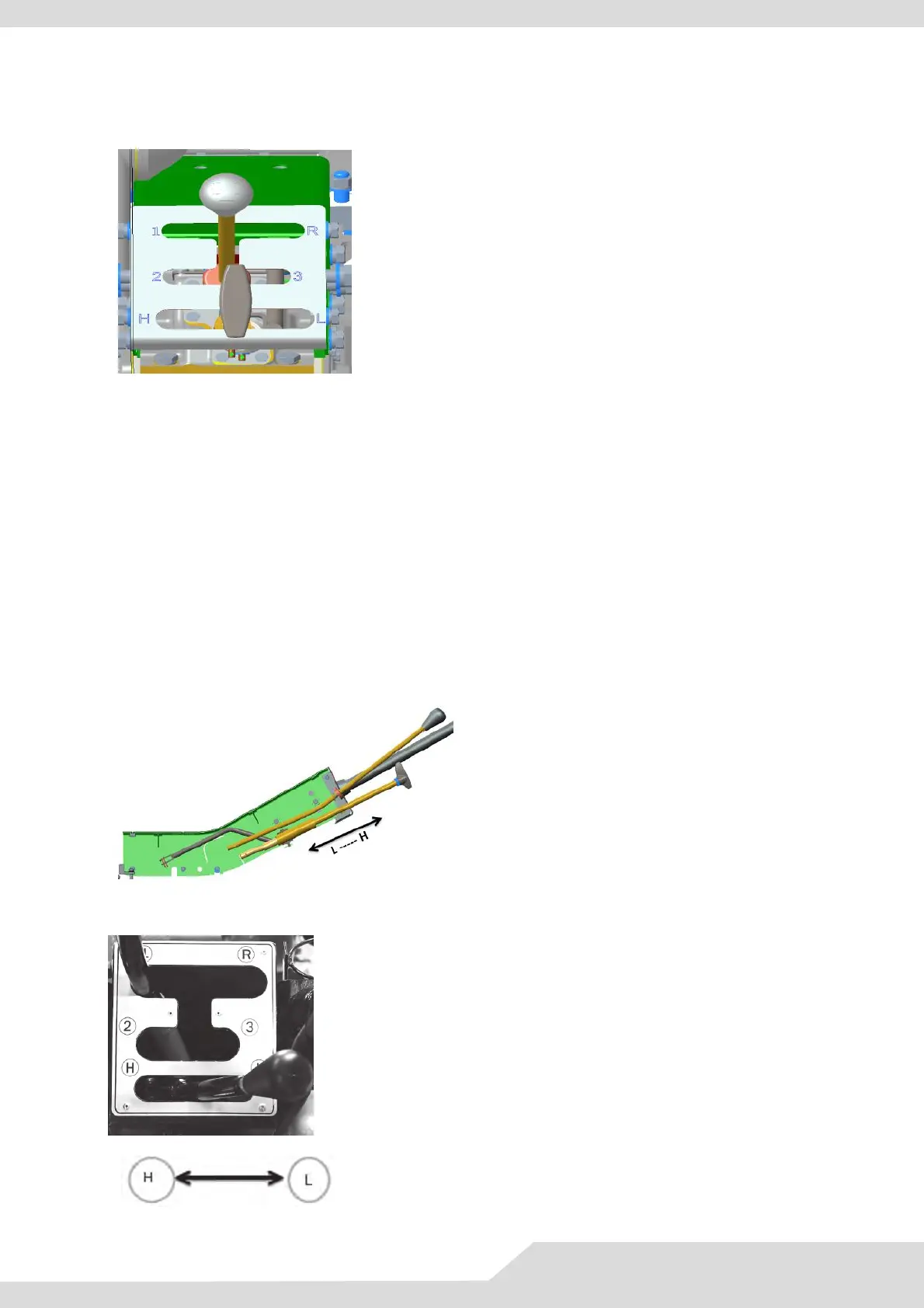

Main Gear shifter lever
Main Hi-Low Lever with Rotor Hi-Low Lever
