.7.4 Rototiller Shaft Speed Changing Procedure
•
O
p
e
rator can avail two different speeds of tiller shaft by interchanging chain sprocket.

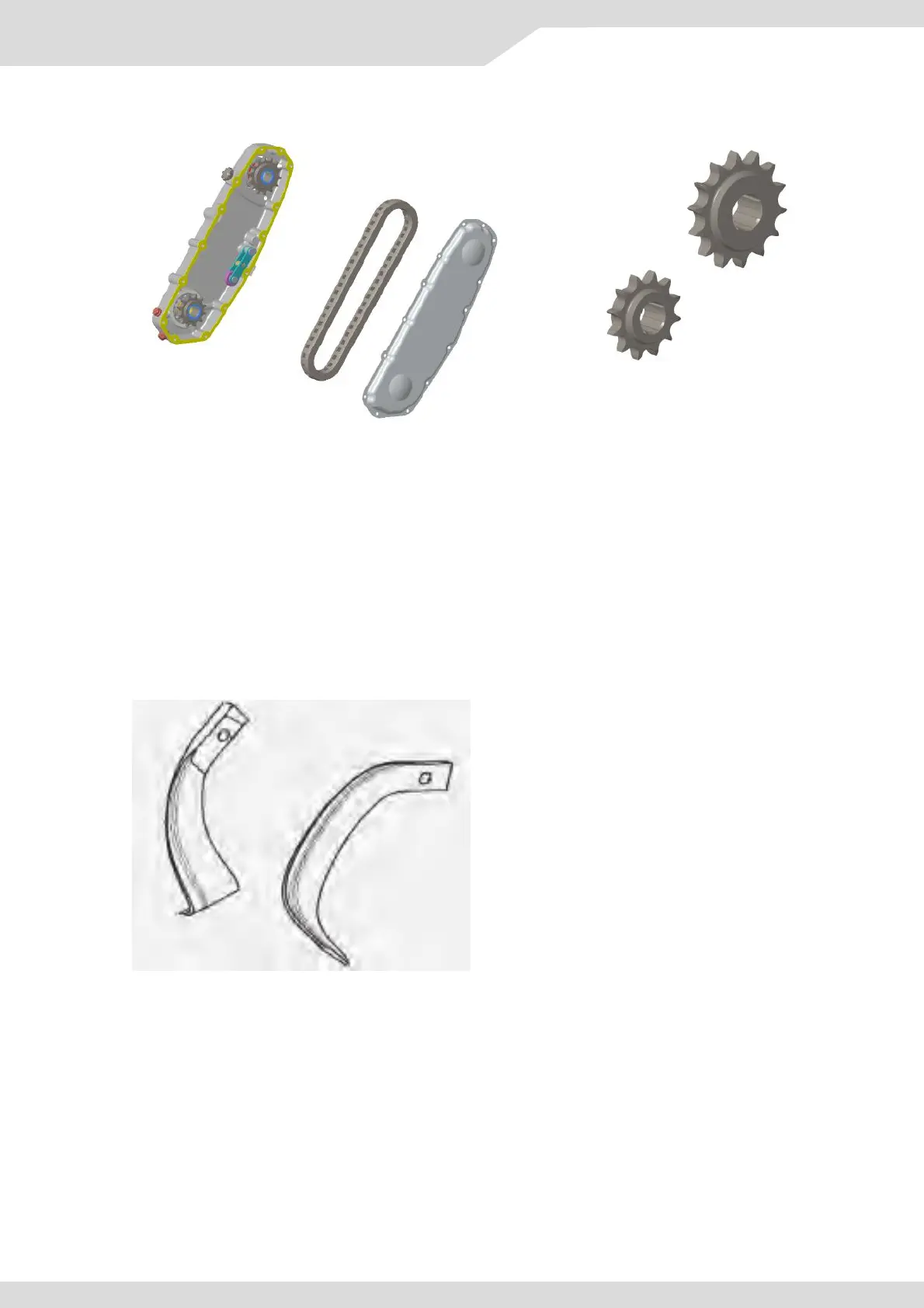

• Remove rototiller chain cover; remove sprocket circlip, rototiller transmission chain and sprockets.
• Interchange chain sprockets & reassemble the unit by reversing of remove process.
Note:
Before reassemble, clean transmission chain, sprocket and inspect gasket for clear sealing to avoid
further oil leakage.
8.8 Tiller Shaft blade mounting sequence and blade types
Blade Types
• For better soil pulverisation in wet and dry land, hatchet type blade is provided.
• As shown in fig. blade cutting edge towards right is RH blade and cutting edge towards left is LH
blade.
