25
OWNERS Manual
• Pull or stretch accelerator cable and retighten the screw.
•
Prepare the Accelerator assembly on engine side.
• Join the cable through the nut, accelerator cable.
• Keep Accelerator control assembly at lower most position.
• Keep setting screw at mid position.
• Tight the screw or nut accelerator cable and ensure that there is no float and no load on steering
cable.

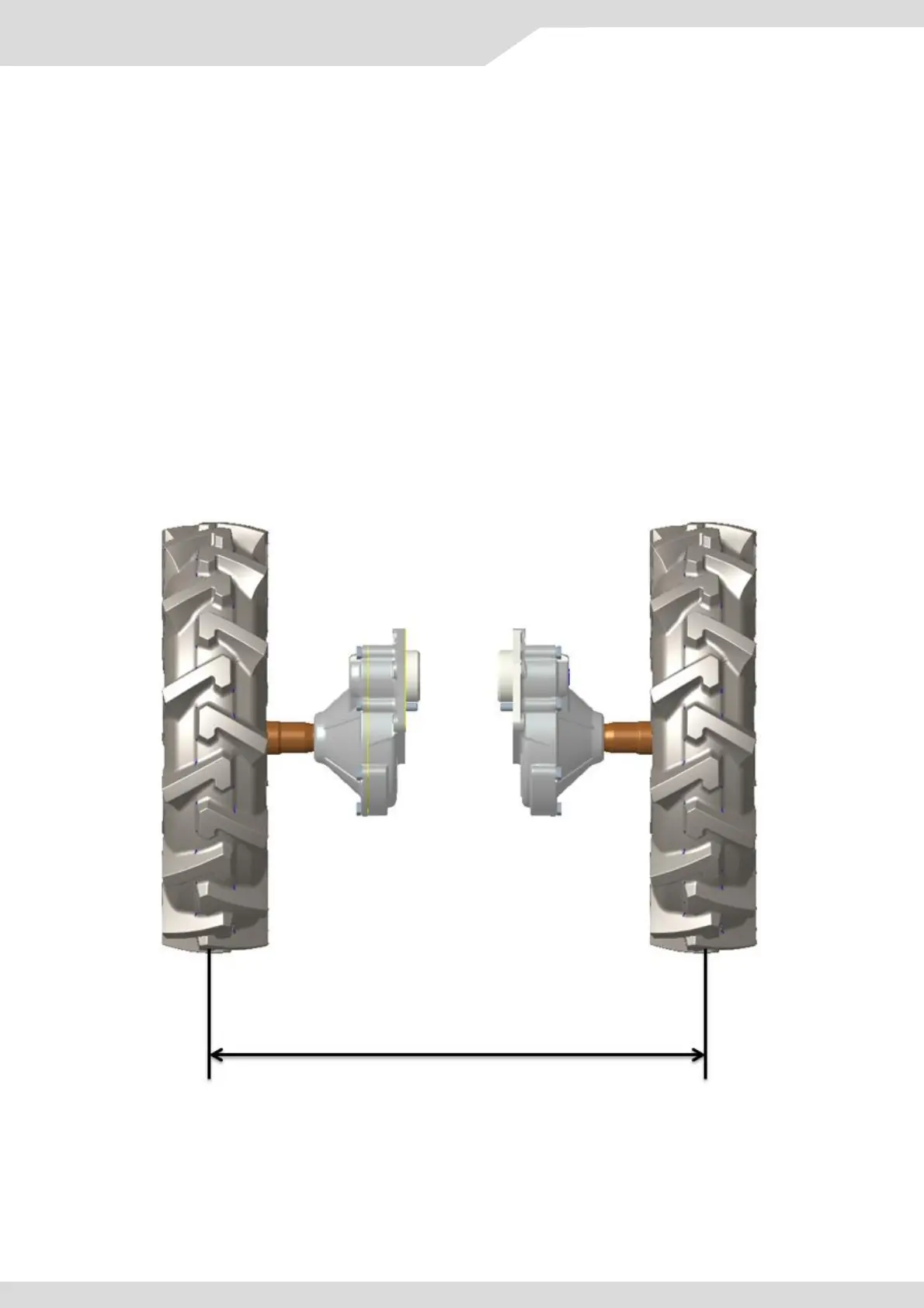

8.6 Wheel Track Width Changing Procedures
• Two different track widths can get in this machine according to operators need.
•
735 mm track width is as per company standards.
• To avail lesser track width of 683 mm, interchange the wheels (LH wheel to right side and RH wheel to
left side as a complete assy).
710 mm Track Width
