8.3 Main Clutch and Brake Pull Rod Adjustments

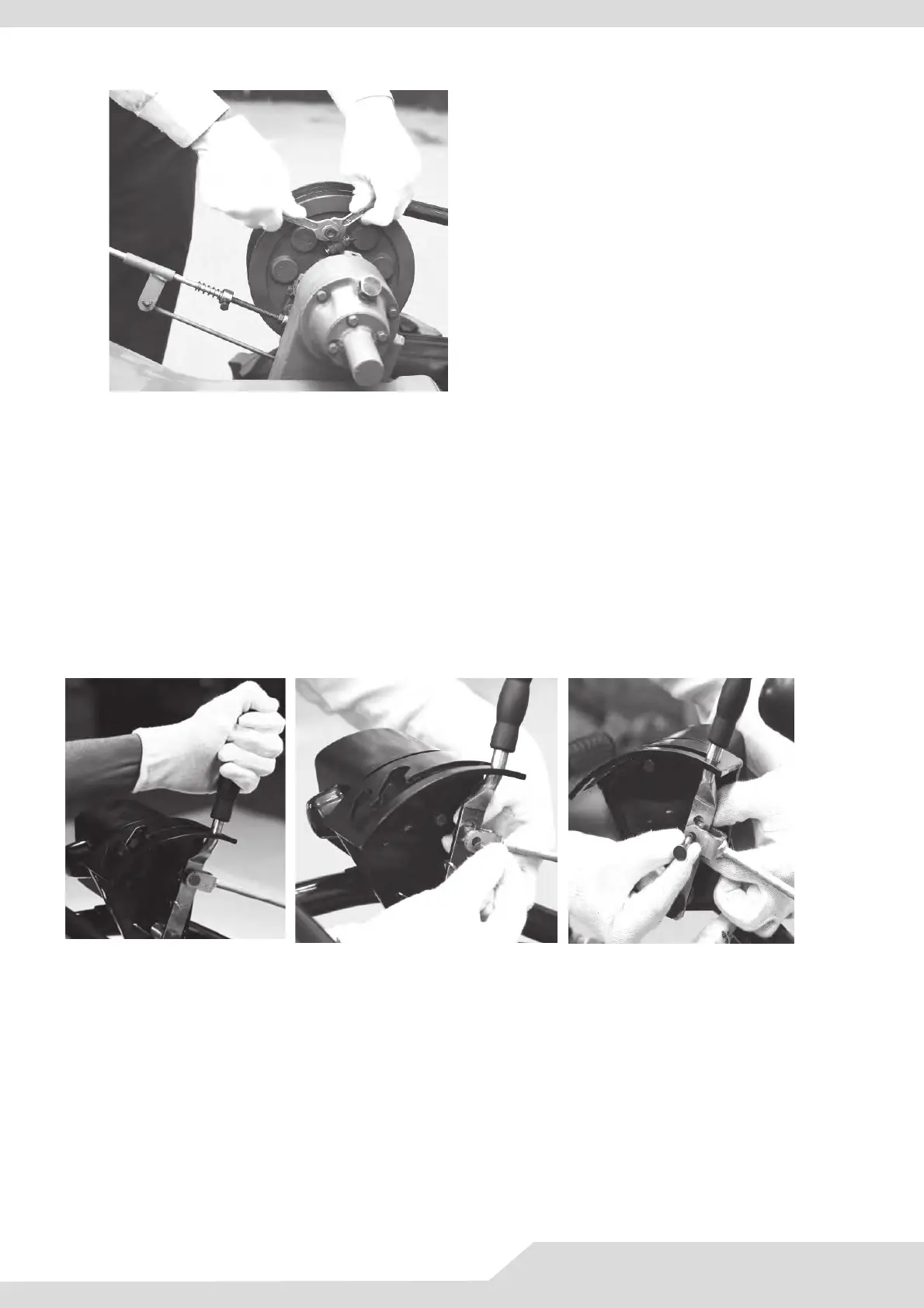

8.3.1 Clutch Pull rod adjustment
• Step-1: Shift Clutch & Brake Lever (CBL) to engage position.
• Step-2: Loosen clutch pull rod lock nut and remove Clevis pin. Adjust length of clutch pull rod &
clutch free play by rotating pull rod in clock wise or anti-clock wise direction at CBL lever end.
• Step-3: After length adjustment, place clevis pin & tighten lock nut and insert split cotter pin.
8.3.2 Parking Brake adjustment
Step-1 Step-2
Step-3
