KIRLOSKAR OIL ENGINES LIMITED
14
6.2 Clutch & Parking Brake Controls
The Single lever will help to do the function of Clutch & Parking Brake.
Clutch & Parking Brake Control Lever (CPBL) is use to move and stop the movement of Machine.
Caution
Always keep CPBL in disengaged position before start of the engine.
Always use the parking brake.

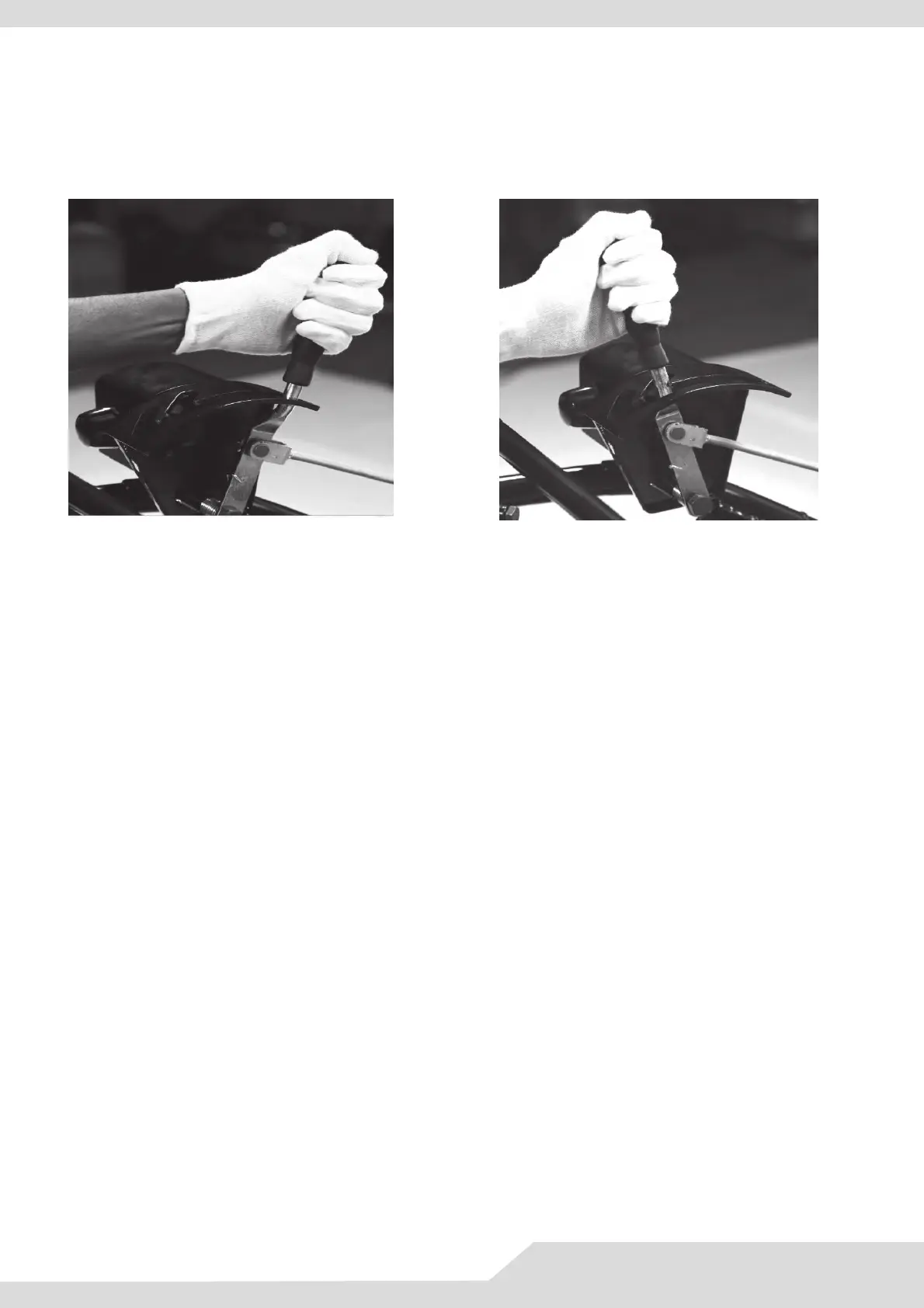

Engage Position
Disengage Position
To engage, move/shift CPBL to forward position
towards extreme end position of bracket as shown
in fig (towards engine side)
To disengage, move/shift CPBL to reverse
position towards the driver side as shown in fig.
