INSTALLATION INFORMATION
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Tools Needed
Gather the required tools and parts before
starting installation. Read and follow the in-
structions provided with any tools listed here.
• Measuring tape
• Pencil
• Masking tape or thumb tacks
• Scissors
• Torx T-10 screwdriver
• Electric drill
• 5/64″ (2 mm) drill bit
Parts Supplied
LOCATION REQUIREMENTS
The microwave oven may be located in a
cabinet, above a built-in oven, below the counter
and/or below a cooktop. Check the opening
where the microwave oven will be installed.
The location must provide:
• Wood cabinetry.
• Cutout floor that is solid, level and flush with
bottom of cabinet cutout.
• Support for weight of at least 150 lbs (68 kg),
which includes microwave oven and items
placed inside.
• Grounded electrical outlet inside cutout open-
ing (see “Electrical Requirements” section).
• Minimum installation clearances for installa-
tion location (see “Minimum Dimensions”
section).
We recommend:
• Complete enclosure around the recessed
portion of the microwave oven.

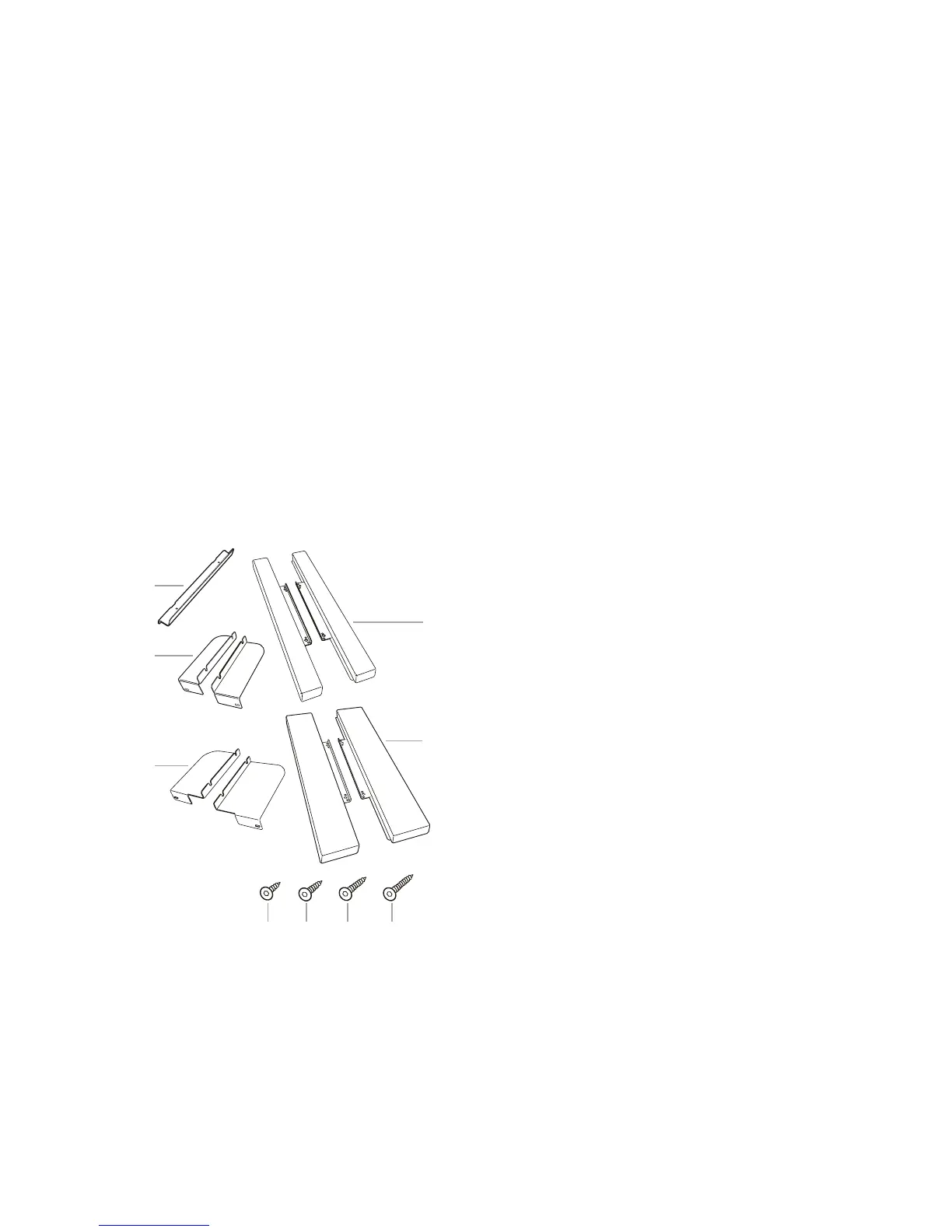

A. Z-brackets (2)
B. 1
-1/2"
(3.8 cm) side brackets (L,R)
C. 3" (7.6 cm) side brackets (L,R)
D. 1-11/32" (3.4 cm) side trim panels (L,R)
E. 2
-13/16
" (7.2 cm) side trim panels (L,R)
F. 3/8" T-10 screws (2)
G. 1/2" T-10 screws (8)
H. 3/4" T-10 screws (4)
I. 1" T-10 screws (4)
Part not shown:
Floor template (for cutout opening)
A
B
C
D
E
F G H I
