4-17

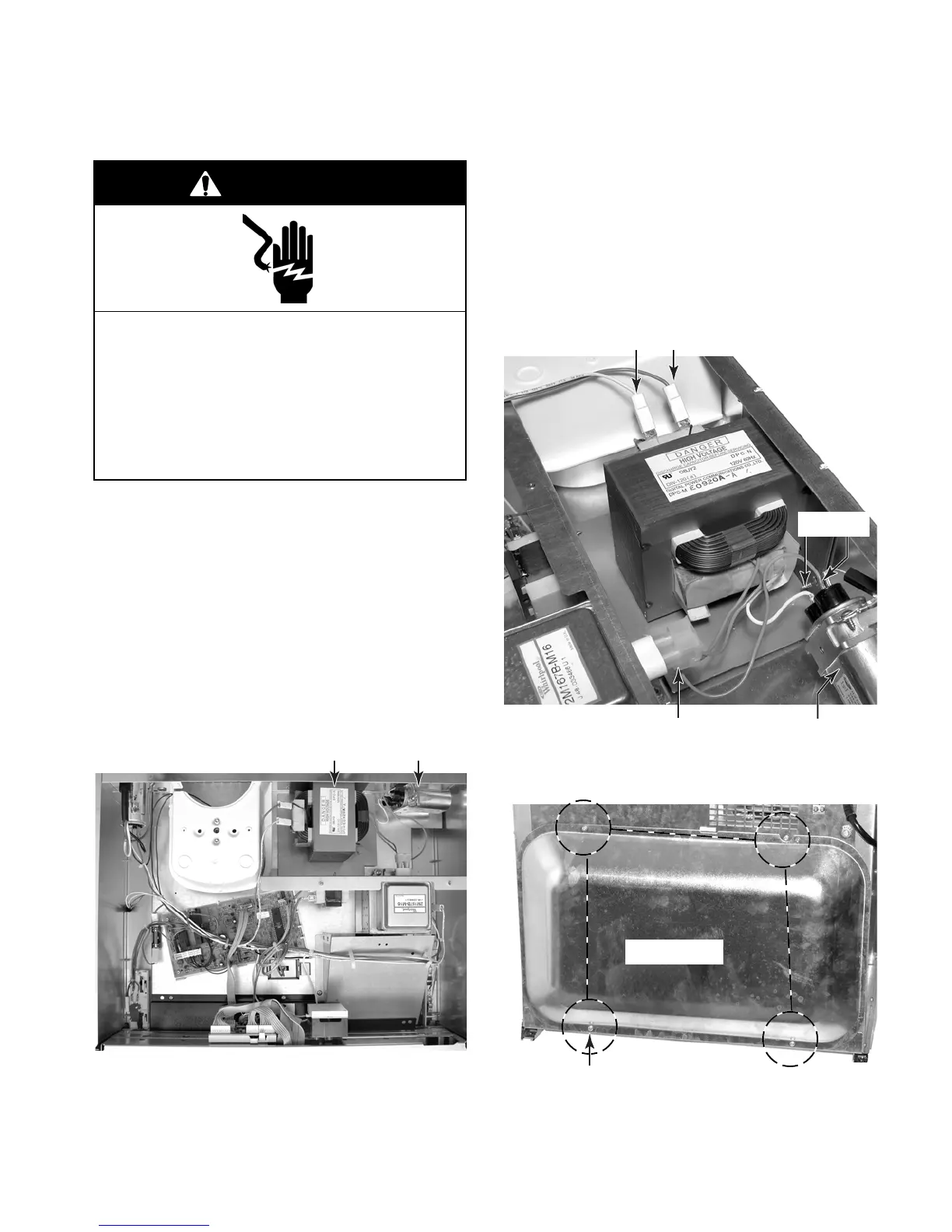

REMOVING THE HIGH VOLTAGE TRANSFORMER,
DIODE, AND CAPACITOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
1. Unplug microwave oven or disconnect
power.
2. Remove the microwave oven from its
mounting location.
3. Remove the top cover from the microwave
(see steps 3 and 4 on page 4-2 for the
procedure).
4. CAUTION: Discharge the high voltage
capacitor using a 20,000 Ω resistor from
the terminals to chassis ground.
HV Transformer & Capacitor
5. To remove the high voltage transformer:
a) Disconnect the white and blue wires
from the primary terminals.
b) Disconnect the filament connector from
the magnetron terminals.
c) Disconnect the orange and white wires
from the high voltage capacitor.
d) Remove the four T10 Torx screws from
the rear cover and remove the cover.
White Blue Primary Wires
Filament Connector HV Capacitor
WH OR
Continued on the next page.
Rear Cover
4 Screws
To Next Page
