INSTALLATION INSTRUCTIONS
PREPARE THE MICROWAVE OVEN
1. Empty the microwave oven of any loose
contents.
For 27″ (68.6 cm) and 30″ (76.2 cm)
Installation Only:
2. Loosen 2 existing screws on each side of
microwave oven. The screws are located
at the same height as the door handle, and
they are the 2 screws closest to the front of
the microwave oven on each side.
3. Slide the left and right side brackets under
the existing screw heads, as shown, and
then tighten the screws. Use the 1-1/2″
(3.8 cm) side brackets for 27″ (68.6 cm)
opening, or 3″ (7.6 cm) side brackets for
30″ (76.2 cm) opening.
INSTALL THE MICROWAVE OVEN
2. Mark 4 holes (2 on each side) in the door
facing frame of the microwave oven.
3. Close the door and remove the microwave
oven.
4. Drill the 4 holes using 5/64″ (2 mm) drill.
5. With the microwave oven near the open-
ing, plug the microwave oven into the
grounded 3-prong outlet.
6. Replace microwave oven in cutout open-
ing.
7. Open the microwave oven door. The holes
in the door facing frame should align with
the holes just drilled into the cabinet. Fas-
ten the microwave oven door facing to the
cabinet using four 1″ T-10 screws.
Excessive Weight Hazard
Use two or more people to move and
install microwave oven.
Failure to do so can result in back or
other injury.
WARNING

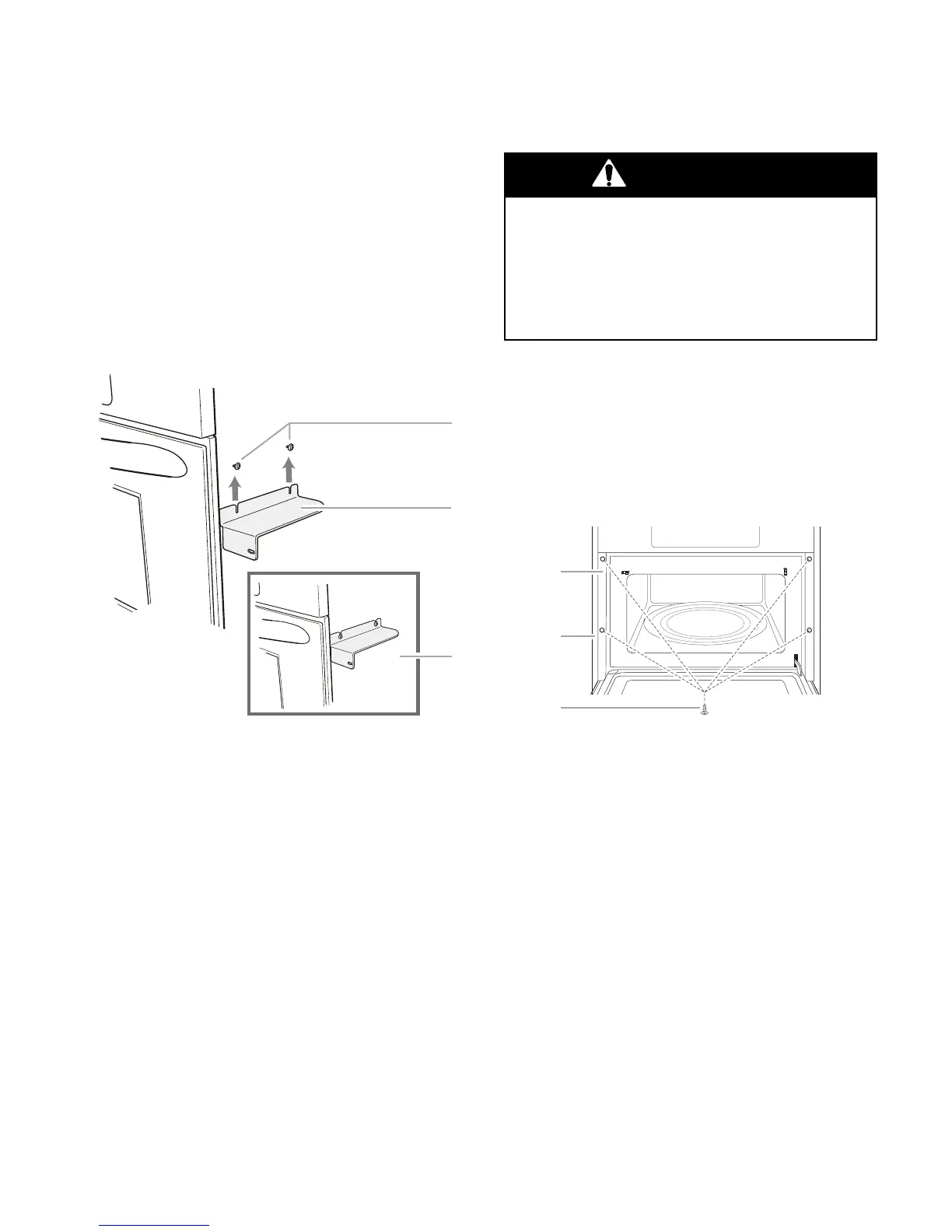

A. Existing screws
B. Right side bracket
C.Proper side bracket placement
A
B
C
A. Microwave oven door facing frame
B. Cabinet
C. 1" T-10 screws (4)
A
B
C
NOTE: Do not use any portion of the front frame
or trim for lifting. The door handle may be used
for lifting.
24″ (61.0 cm) Installation Only
1. The microwave oven should be centered
in the opening. Open the microwave oven
door.
