2-6
27″ (68.6 cm) or 30″ (76.2 cm) Installation
1. Hold Z-brackets against the outside edges
of cutout opening, and mark holes. Make
sure bottom ends of brackets rest on the
cutout floor, as shown.
2. Drill holes into the inside edges of cutout
opening using 5/64″ (2 mm) drill bit.
3. Attach Z-brackets to side edges of cutout
opening using four 1/2″ T-10 screws.
4. With the microwave oven near the open-
ing, plug the microwave oven into the
grounded 3-prong outlet.
5. Slide microwave oven all the way into the
opening.
NOTE: The flat portion of the side brackets
should slide over the tops of the Z-brackets,
and the vertical portion of the side brackets
should rest against the front surface of the
recessed portion of the Z-bracket.

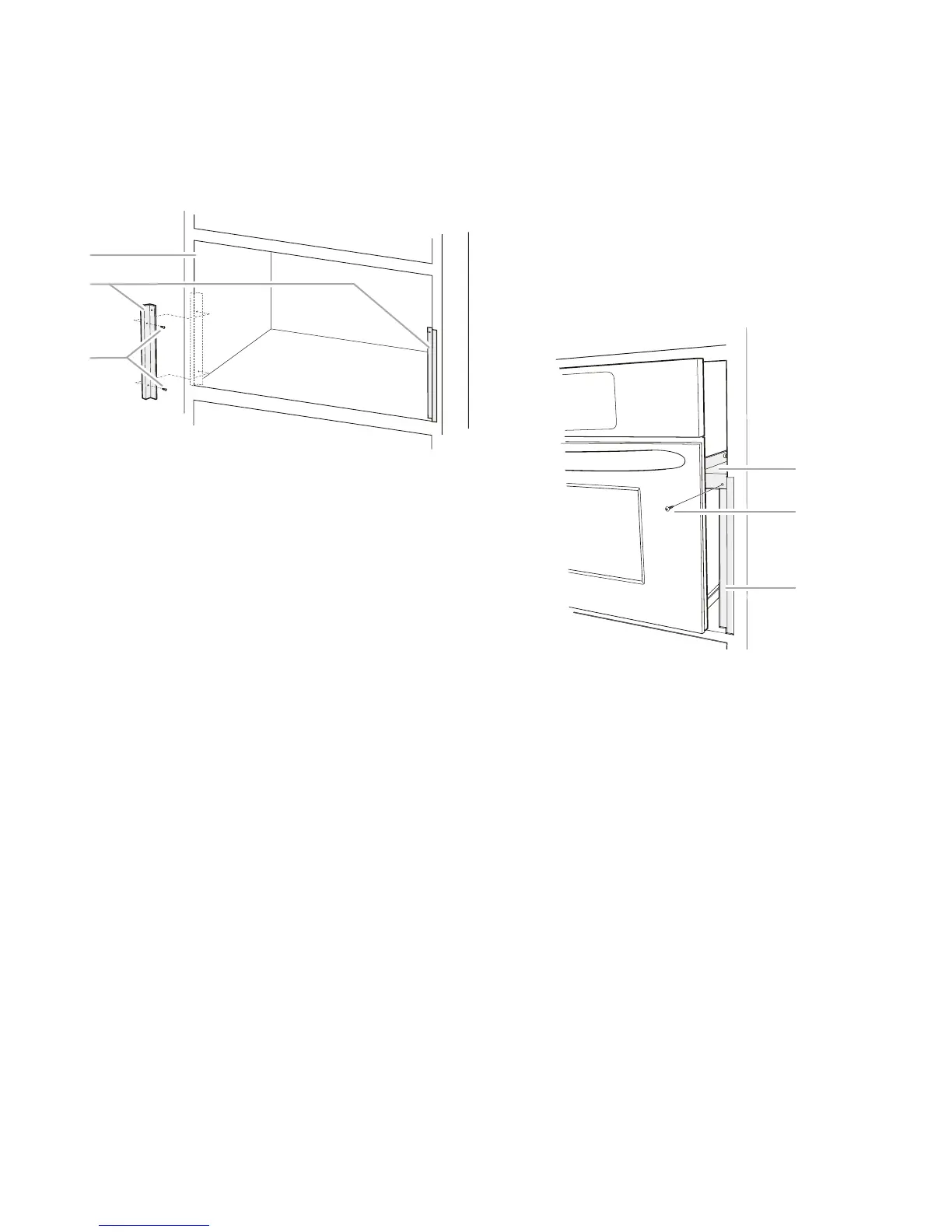

A. Cutout opening
B. Z-brackets (2)
C. 1/2" T-10 screws (4)
A
B
C
A. Side bracket
B. 3/8" T-10 screw
C. Z-bracket
A
B
C
