4-3

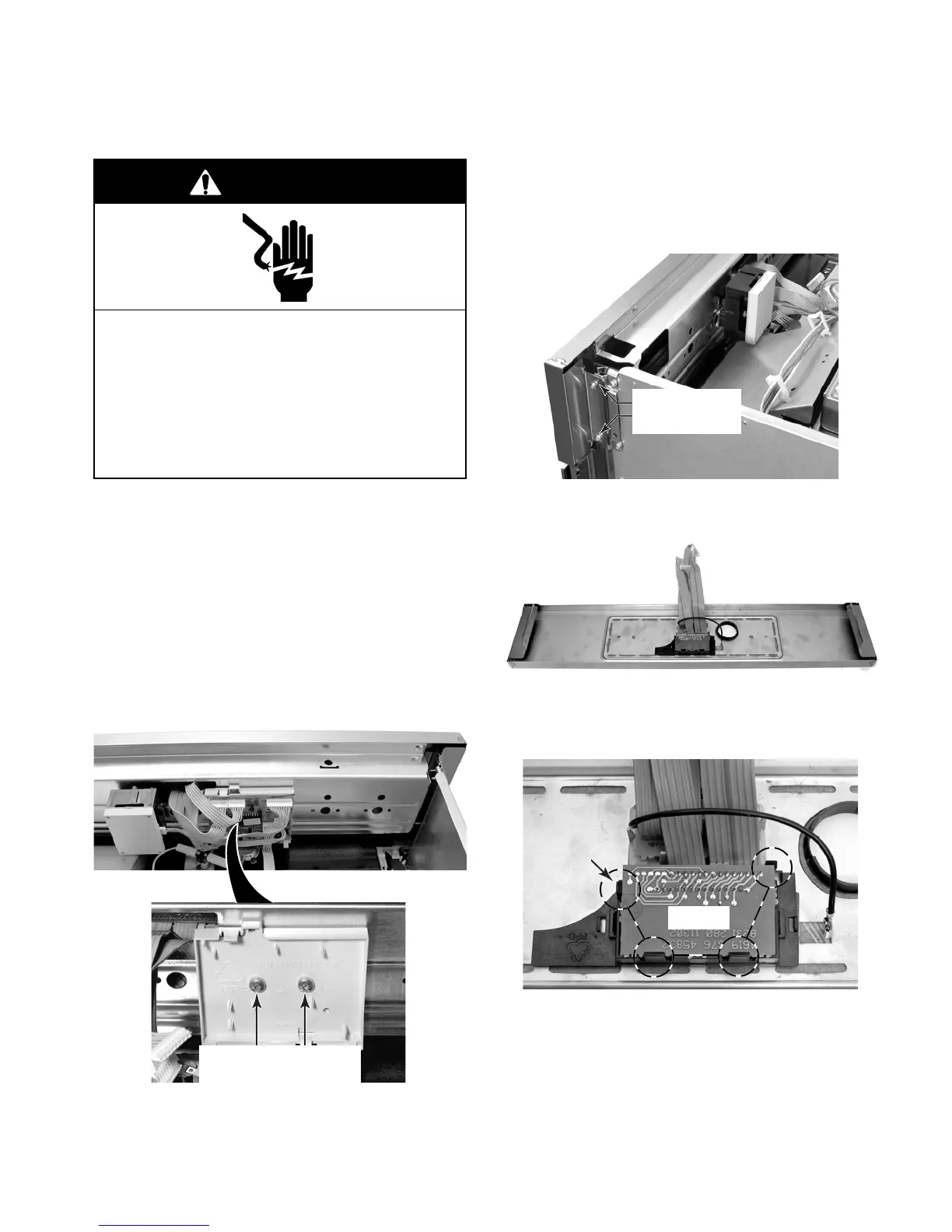

REMOVING THE DISPLAY, TOUCH PANEL BOARD,
& SELECTOR BOARD
1. Unplug microwave oven or disconnect
power.
2. Remove the microwave oven from its
mounting location.
3. Remove the user interface board from its
holder (see page 4-2 for the procedure).
4. Remove the two T20 Torx screws from the
user interface board holder and remove
the holder from the subpanel.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
User Interface Board
Holder Screws
6. Place the control panel on a padded work
surface.
5. Remove the four T20 Torx screws (two on
each side) from the control panel assem-
bly and remove the assembly from the
unit.
Control Panel
Screws
7. To remove the display, press out on the
four holder clips, and pull the display out of
the holder.
Control Panel
Display
Clips
Continued on the next page.
