4-4

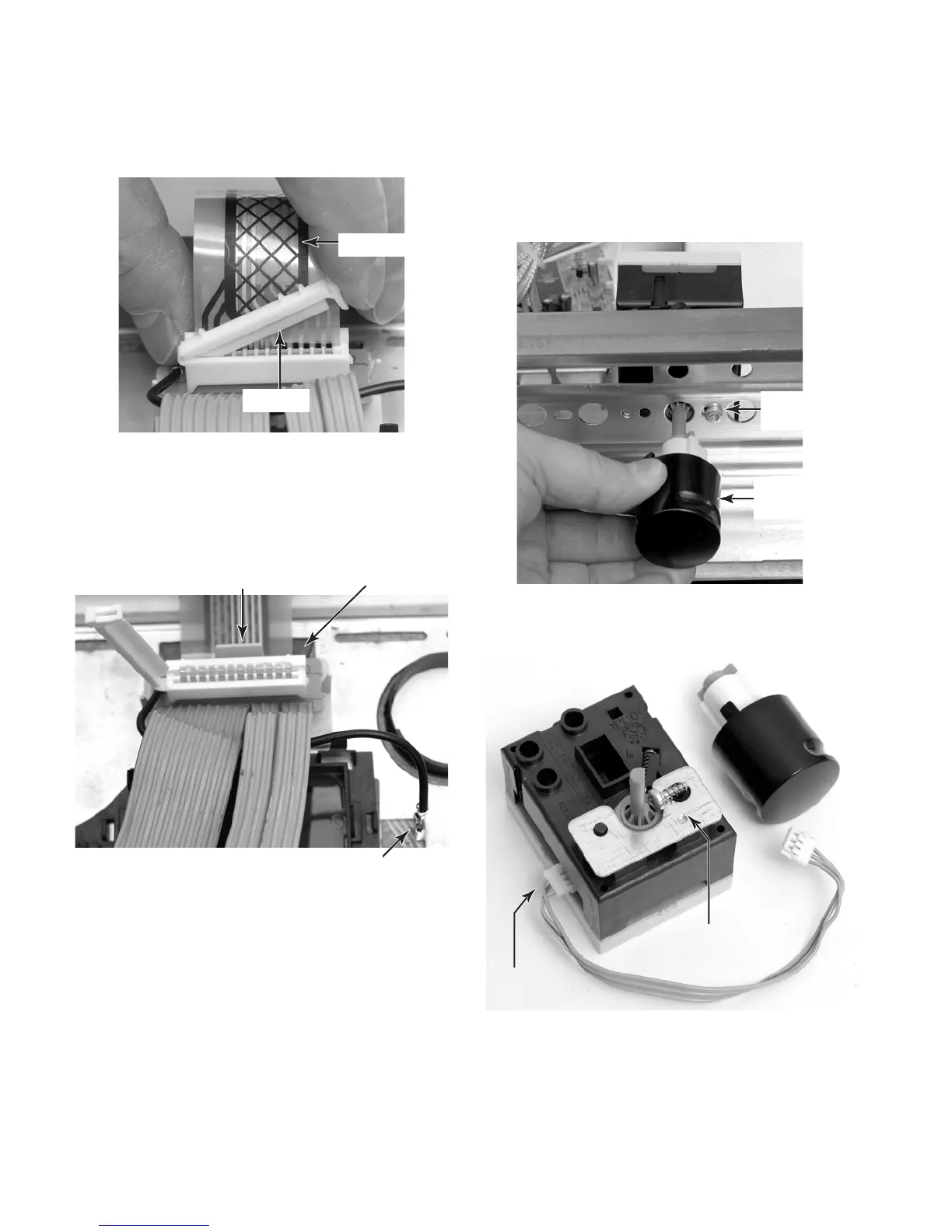

8. To remove the touch panel board:
a) Lift the ribbon cable retaining bar and
pull the cable from its holder.
9. To remove the selector board:
a) Pull the knob off the selector board
control shaft.
b) Remove the T10 Torx screw from the
selector board and remove the board
and its mounting bracket.
c) Disconnect the 3-wire connector from
the selector board.
b) Press out on the holder clip, and re-
move the touch panel board from the
holder.
c) Disconnect the touch panel board
ground wire from its panel terminal.
Ribbon Cable
Lift Bar
Holder Clip
Touch Panel Board
Ground
Connector
Pull Knob
Off Shaft
Selector
Board Screw
3-Wire
Connector
Selector Board
Bracket & Screw
To Next Page
