4-18

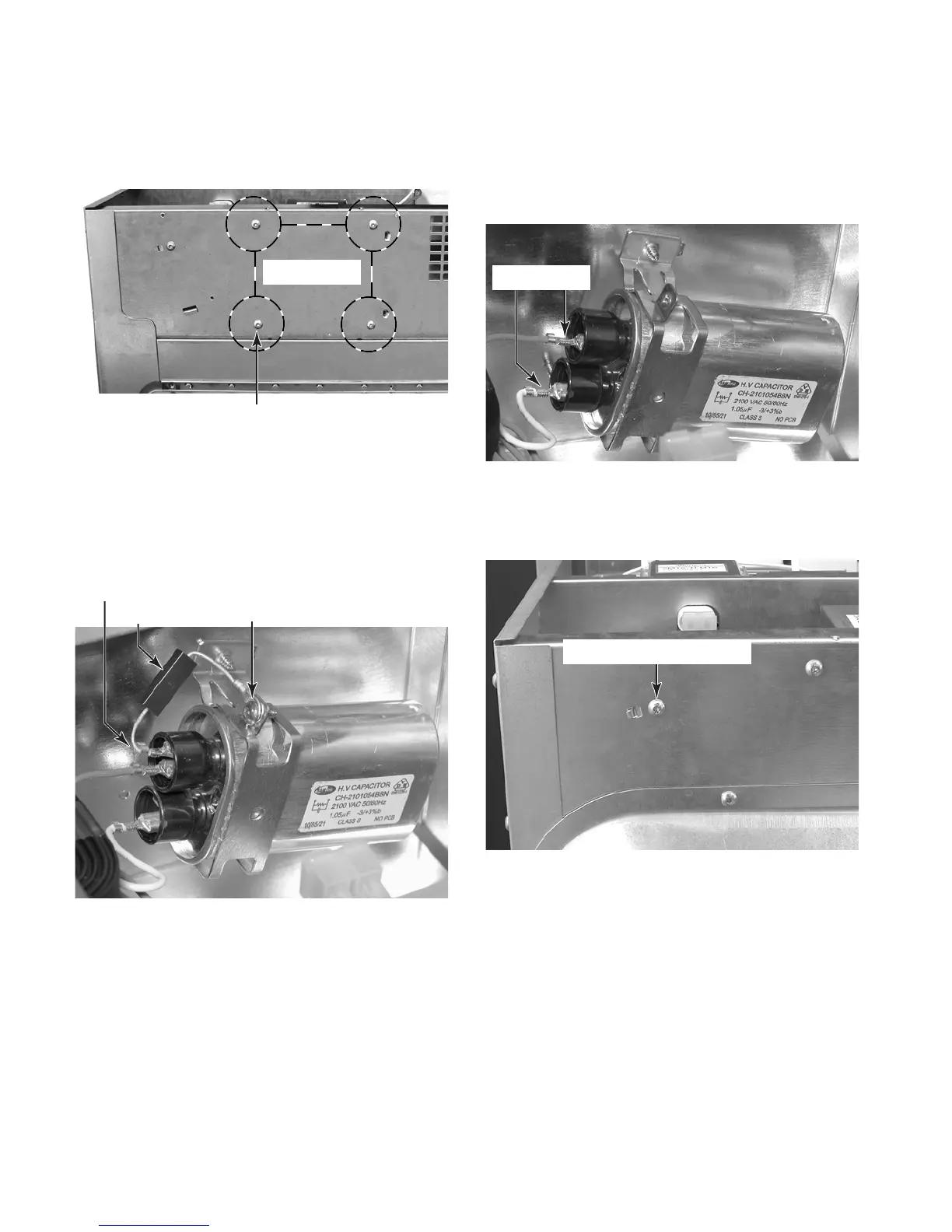

6. To remove the high voltage diode:
a) Remove the T10 Torx screw from the
diode lead eyelet.
b) Disconnect the other diode lead from
the capacitor terminal and remove the
diode.
7. To remove the high voltage capacitor:
a) Remove the diode from the capacitor
(see step 6).
b) Disconnect the white and orange wires
from the capacitor terminals.
e) Remove the four high voltage trans-
former screws from the rear panel of
the microwave oven, and remove the
transformer from the oven.
Rear Panel
4 Screws
Screw & Eyelet
Diode/Capacitor Terminal
HV Diode
c) Remove the T10 capacitor bracket Torx
screw from the rear panel and remove
the bracket and capacitor.
WH OR
Capacitor Bracket Screw
To Next Page
