b) Cut the wire tie around the lamp wires.
c) Disconnect the halogen lamp wire con-
nectors from the lamp transformer
LOAD terminals.
Lamp Transformer
Terminals
Wire Tie

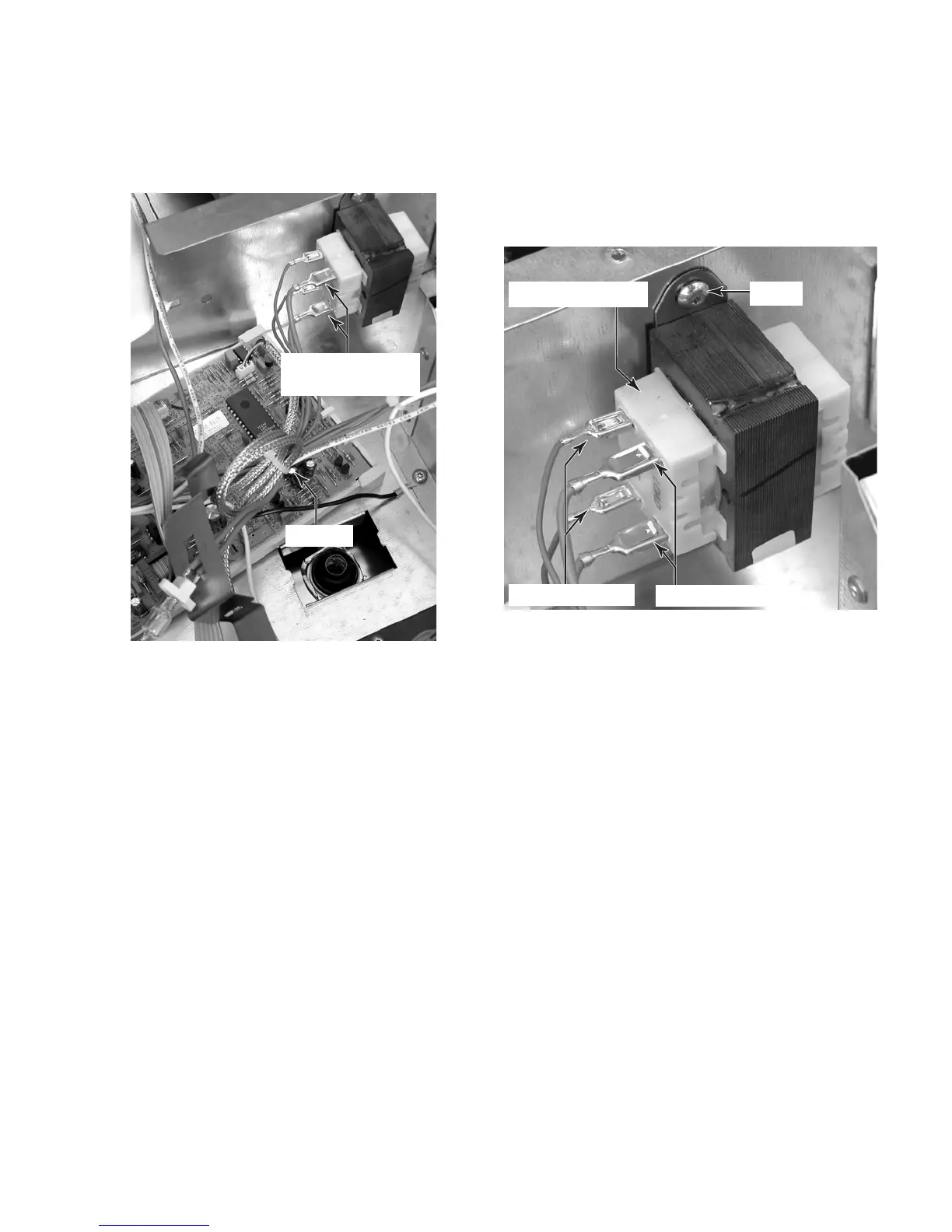

6. To remove the lamp transformer:
a) Disconnect the four wire terminals from
the transformer terminals.
b) Remove the T10 Torx screw from the
transformer and remove it from the
mounting bracket.
LOAD (Red Wires)
LINE (Brn Wires)
Screw
Lamp Transformer
To Next Page
