4-13

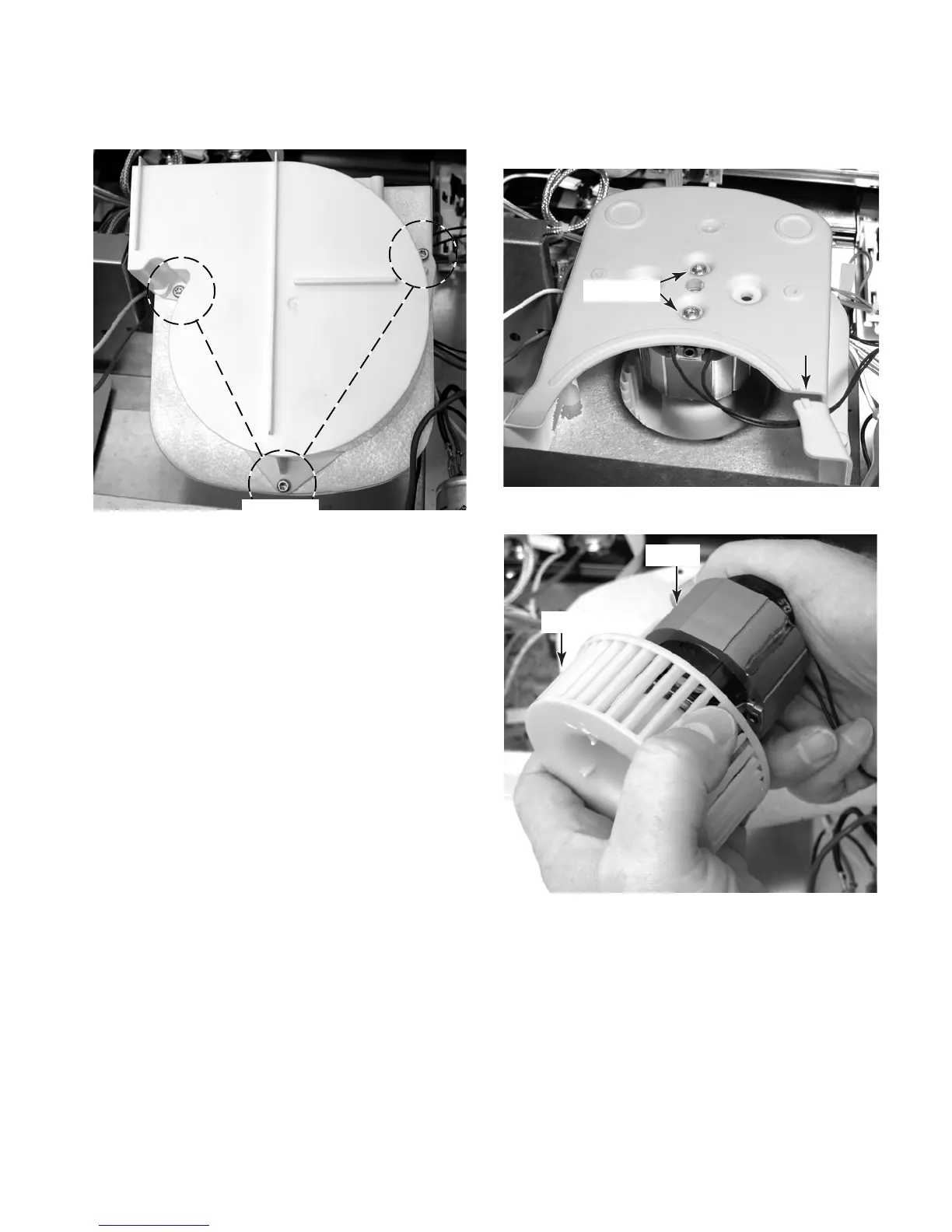

10. Remove the two cooling fan motor shoulder
T20 Torx screws from the upper housing
and remove the motor from the housing.
9. Remove the three lower housing T20 Torx
screws and remove the lower housing.
11. Pull the fan off the motor shaft.
Cooling Fan Motor
Lower Housing
3 Screws
Cooling Fan Motor
Upper Housing
Screws
Fan
Motor
REASSEMBLY NOTE: When you mount the
motor to the upper housing, be sure to position
the motor with the wires as shown in the top
photo so they can be routed through the wire
slot in the side of the housing.
Wire Slot
To Next Page
