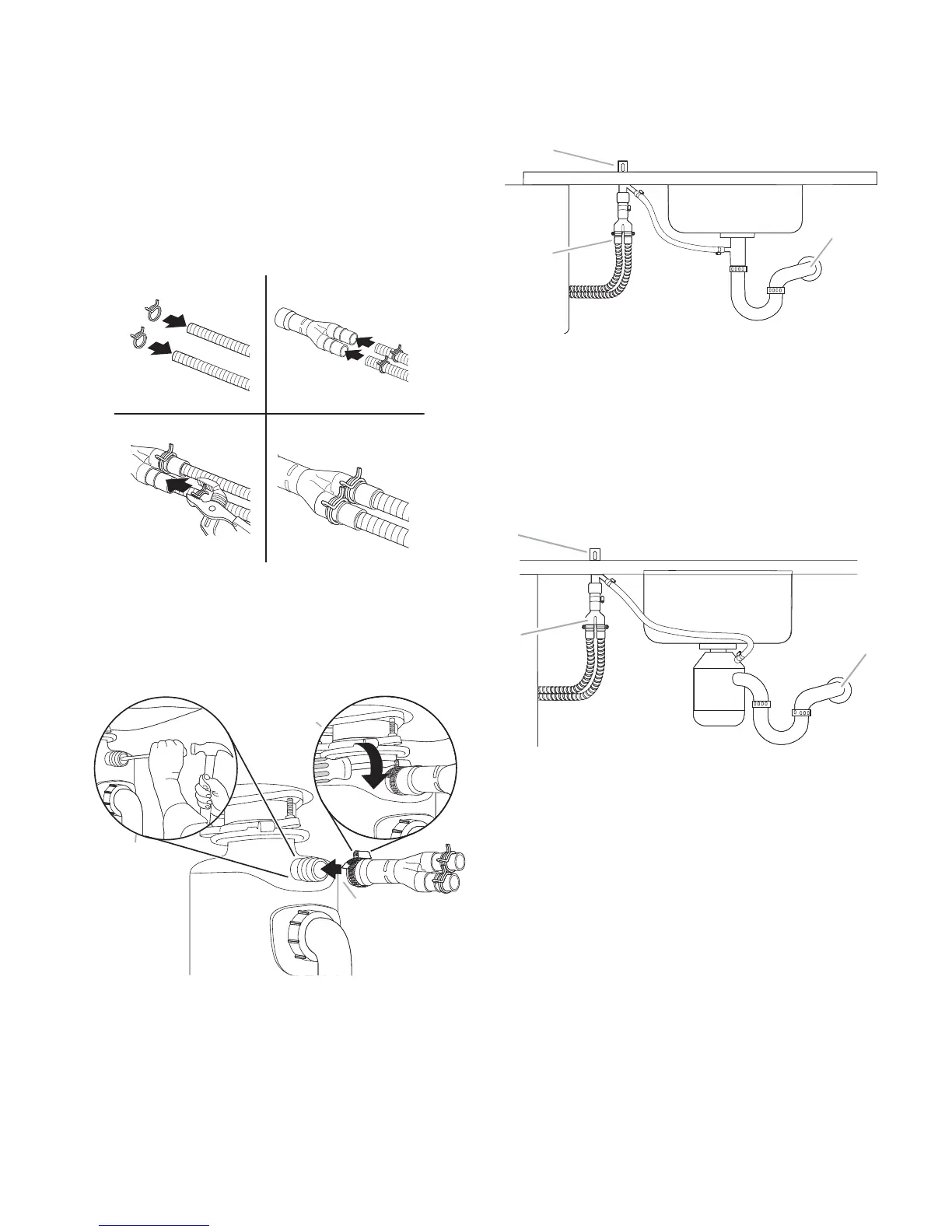

2. Slide clamps onto drain hoses (Figure A).
Do not cut drain hoses.
3. Push hoses into Y drain connector until
fully seated (Figure B). Several “clicks” will
be heard.
4. Slideclampsintoposition(guresCand
D).
BA
DC
5. Connect the drain hose using one of the
following options:
Option 1: Waste disposer no drain air gap
A. For new construction, remove disposer plug.
B. Connect drain connector to waste disposer.
C. Tighten clamp.
A
C
B
Option 2: No waste disposer and drain air
gap
A. Drain hose connector
B. Drain air gap
C. Waste
A
B
C
Option 3: Waste disposer and drain air
gap
A. Drain hose connector
B. Drain air gap
C. Waste
B
A
C
