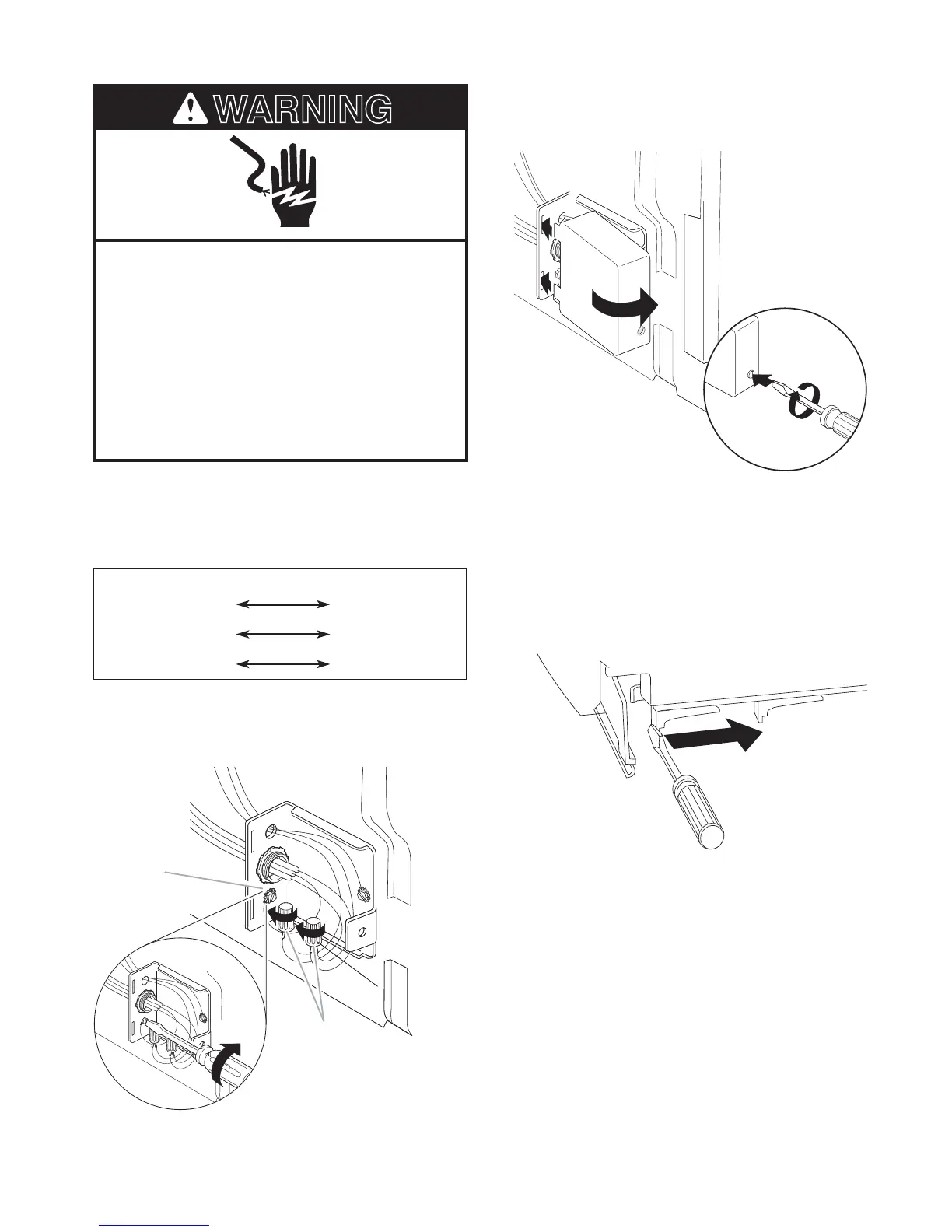

Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground
connector in terminal box.
Do not use an extension cord.
Failure to follow these instructions can
result in death, re, or electrical shock.
3. Connect wires as follows using twist-on
connectors sized to connect direct wire to
16 gauge dishwasher wire.
:eriw xob lanimreT:eriw ylppus rewoP
etihwetihw
kcalbkcalb
rotcennoc dnuorgeriw dnuorg
4. Attach ground wire to the green ground
screw.
A. Attach ground wire to green screw.
B. Attach white and black wires.
A
B
5. Reinstall electric box cover with all wires
contained inside the terminal box.
Install Trim Pieces
1. Open bottom drawer.
2. Push in clips and slide rails back 5"
(12.7 cm).
To Next Page
