KITO ER2 Series Disassembly And Reassembly Guide

15

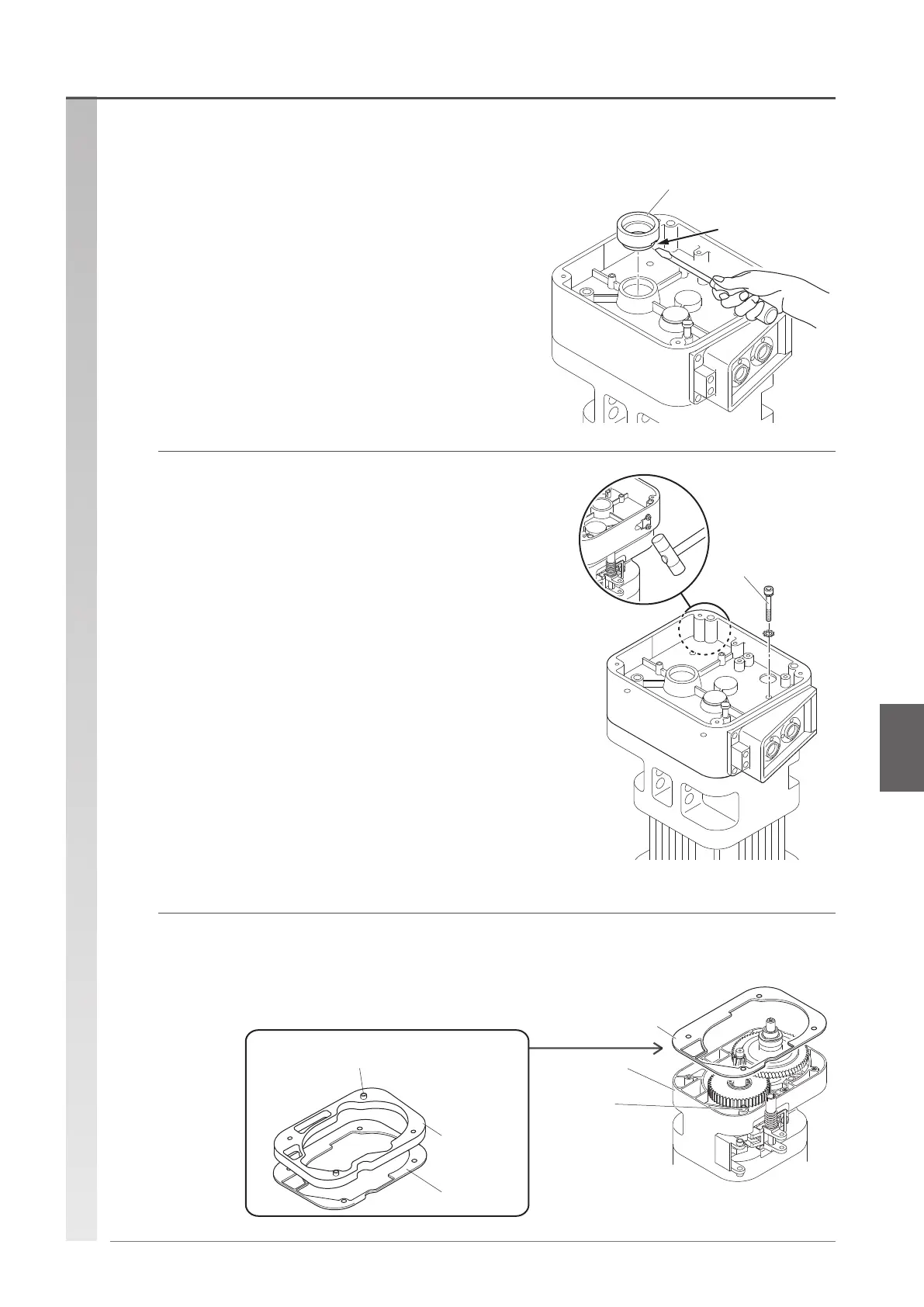

(2) Loosen the 4 socket bolts (5 for F type).
Hammer the gear case gently with a plastic
hammer to remove it.
•
Remove it carefully not to pull the lead wire from the motor
or brake.
•
Note that the gear case may come off with the friction
clutch attached to it.
(3) Remove Packing G and set pin.
•
Be careful not to scratch the gear case junction face.
•
For Friction clutch with mechanical brake specication,
remove Spacer M.
Disassembling the gear parts
4
(1) Remove the friction plug from the gear case
as required.
•
For the friction clutch with mechanical brake ("friction
clutch with mechanical brake" hereafter) specication, this
operation is not required.
Friction plug
Slot for removal
Socket bolt
Packing G
Body
Set pin
Another one
exists in the
opposite side,
on the diagonal line.
(To be continued)
Disassembly procedure Disassembling the gear parts
Spacer M
Packing G
Set pins (two locations)
Another one exists in the opposite side,
on the diagonal line.

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
