Connecting the motor and body
3
(1) Install the 2 set pins and Packing M to the
motor.
(2) Mount the body on the motor.
•
Mount it so that the Chain Guide A side of the body is in
the name plate side of the motor.
•
Be careful so that the lead wire won't get caught between
the body and stator.
•
Fit the spline hole at the pinion bottom to the spline shaft
at the motor shaft tip by rotating the pinion.
•
Hammer the motor gently with a plastic hammer to
connect the motor without any gap.
•
Apply screw lock on the 4 socket bolts, and install the
motor and body.
Tightening torque M6 : 10.8 N·m
M8 : 34.3 N·m
M10 : 39.2 N·m
M12 : 58.8 N·m
(3) Install the limit lever to Chain Guide A at the
body bottom.
•
Fit the limit lever to Chain Guide A, insert the lever pin with
the limit lever spring installed, and align it with the hole
position of Chain Guide A to install it.

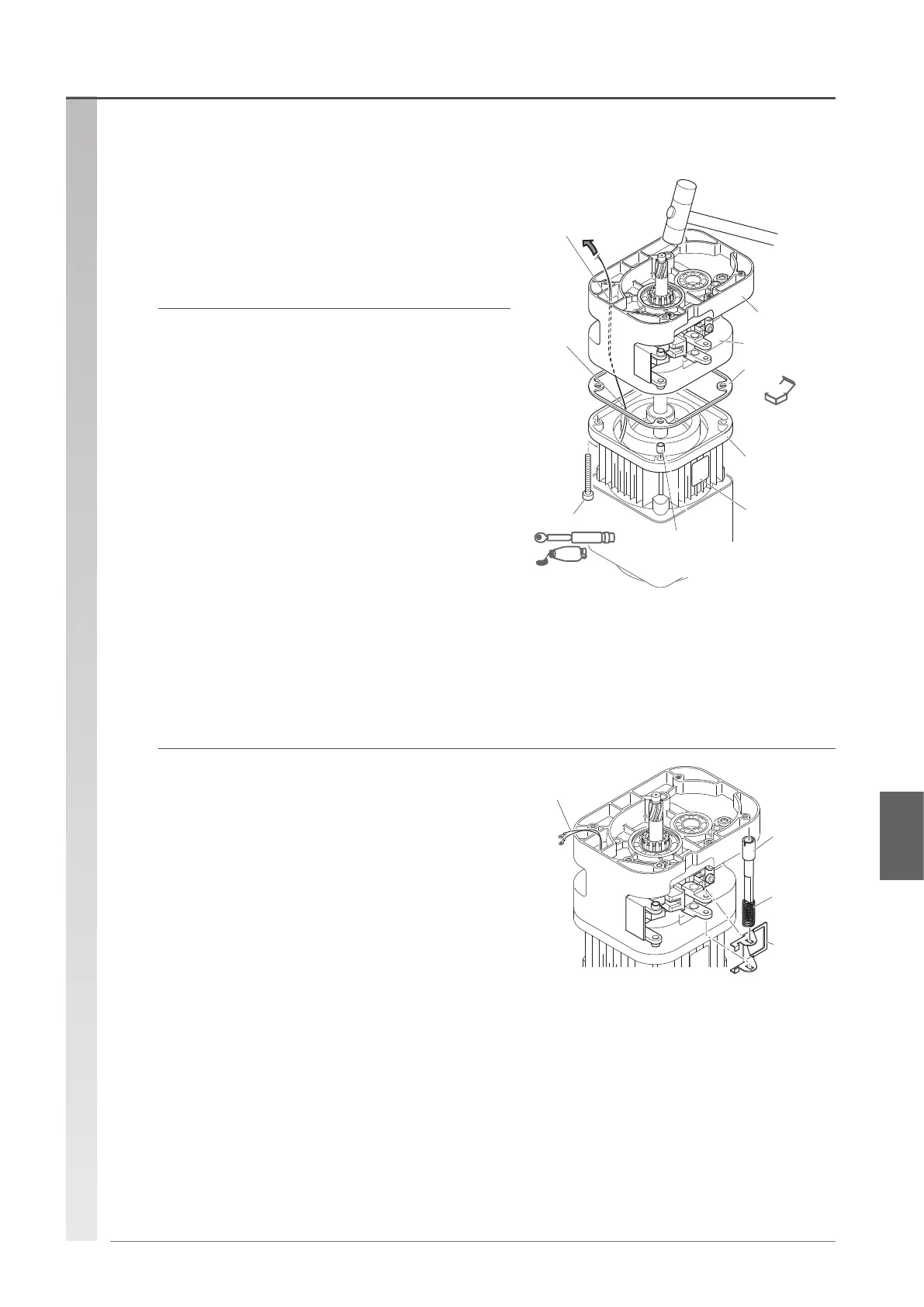

Limit lever
pin
Lead wire
spring
Limit lever
Pass the
lead wire.
Packing M
Chain Guide A
Stator
Body
Socket bolts (x4)
Name plate
Set pin
(Push in another one in the
opposite side, on a diagonal line.)
NEW
Torque
Lock
Pass through the
wiring hole of the body.
Reassembly procedure
(To be continued)
Connecting the motor and body
To Next Page
