KITO ER2 Series Disassembly And Reassembly Guide

30

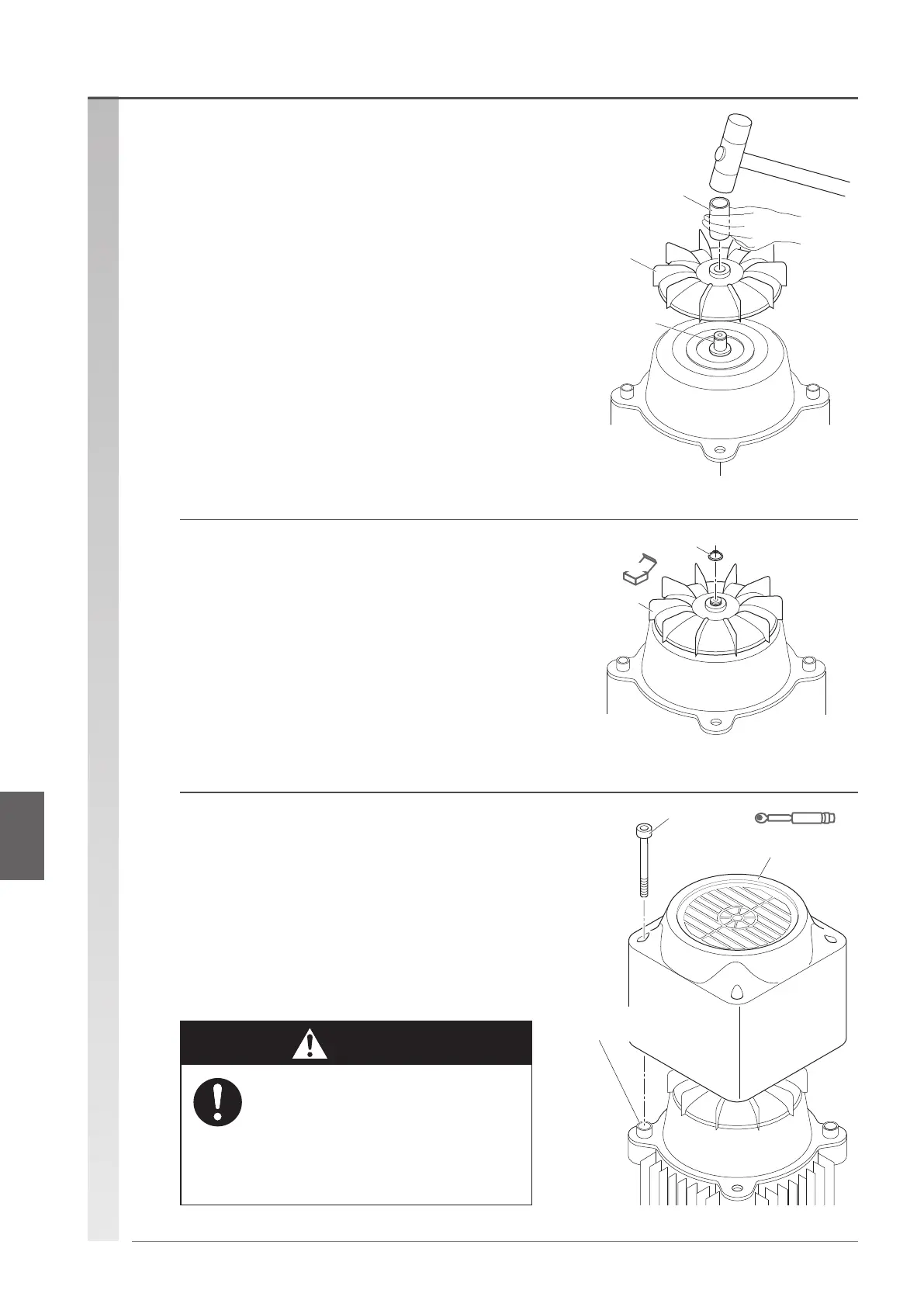

(13) Install the Fan cover to the Stator with the
Socket bolt.
•
Be careful of the orientation of the fan cover (align it with
the set pin).
Tightening torque M5 : 4.7 N·m
M6 : 7.9 N·m
Torque
Bolts (x4)
Fan cover
Align with
2 set pins.
Reassembly procedure (continued)
(12) Install a snap ring.
Snap ring
Fan
NEW
(11) Install the fan.
•
If the t is hard and it is difcult to install, set a proper jig
and hammer it gently with a plastic hammer.
•
Be careful not to hammer the motor shaft or fan directly.
Fan
Motor shaft
(Use the jig.)
• When installing the fan cover, observe
the tightening torque value to tighten the
socket bolt.
Failure to follow this instruction may
cause damage or crack of the fan
cover.
Mandatory
Assembling the motor and electromagnetic brake
Caution
Reassembly procedure

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
