KITO ER2 Series Disassembly And Reassembly Guide

19

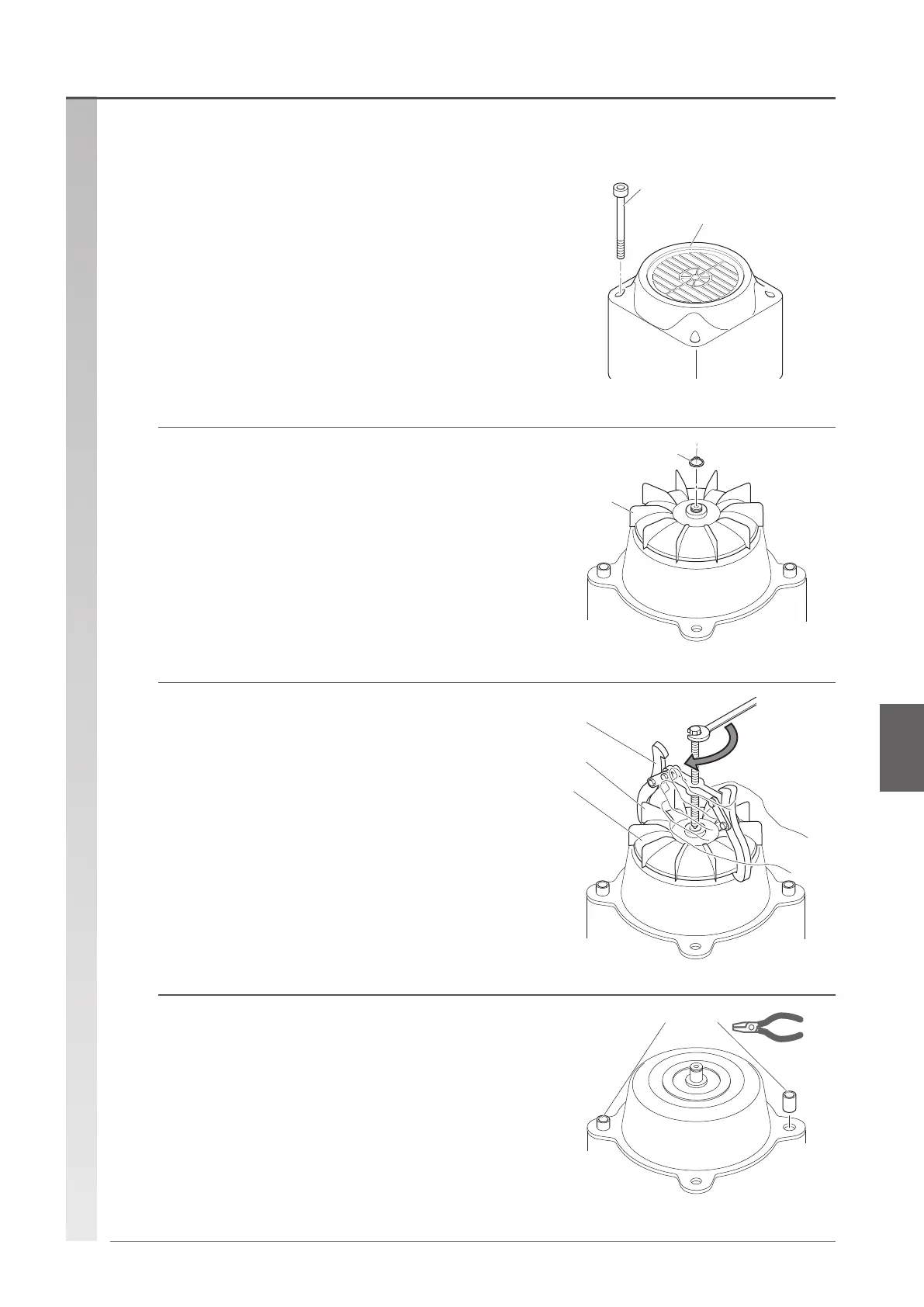

(1) Loosen the 4 socket bolts, and remove the
fan cover.
Disassembling the motor and electromagnetic brake
6
Socket bolt
Fan cover
(3) Insert the "pawl" part of the puller to the
outer circumference bottom of the fan to
remove the fan.
•
Insert it as close to the blade as possible. Be careful not to
damage the fan.
•
Use a three-pawl puller for safer operation.
(4) Remove the set pin.
Fan
Puller
Blade
(Remove it
with the
puller.)
Set pin
(2) Remove the snap ring.
Snap ring
Fan
Disassembly procedure Disassembling the motor and electromagnetic brake
(To be continued)

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
