KITO ER2 Series Disassembly And Reassembly Guide

20

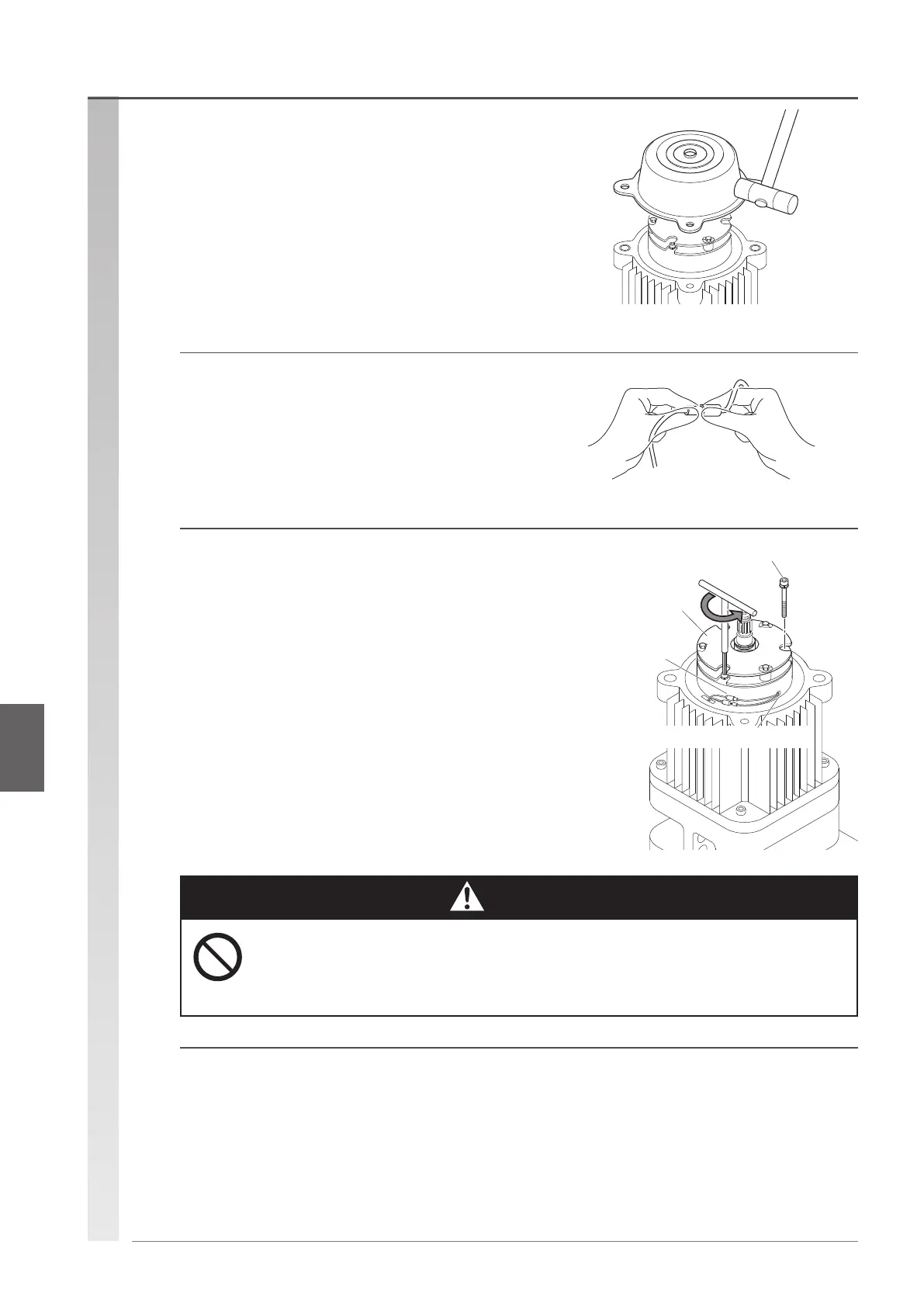

(5) Remove the brake cover.
•
If it is difcult to remove, hammer it gently with a plastic
hammer to remove.
•
Be careful not to hammer it too much to cause
deformation.
(6) Remove the brake wiring.
•
Hold the male and female bullet terminals to remove it.
•
Be careful not to pull the lead wire causing damage in the
connection with the bullet terminal.
(7) Remove the socket bolt (with spring
washer), and remove the brake.
•
Make a note of the installation position (lead wire position)
of the electromagnetic brake for easy reassembly.
• Do not disassemble the electromagnetic brake.
Failure to follow this instruction may cause death or sever injury due to a falling load.
Bolts (x3)
Brake
Remove the bullet
terminal in advance.
Make a note of this position.
(8) Check the V ring for any abnormality.
•
If the V ring is worn, check for dust entering to the brake.
Disassembly procedure (continued)
Prohibited
Disassembly procedureDisassembling the motor and electromagnetic brake
Danger

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
