KITO ER2 Series Disassembly And Reassembly Guide

21

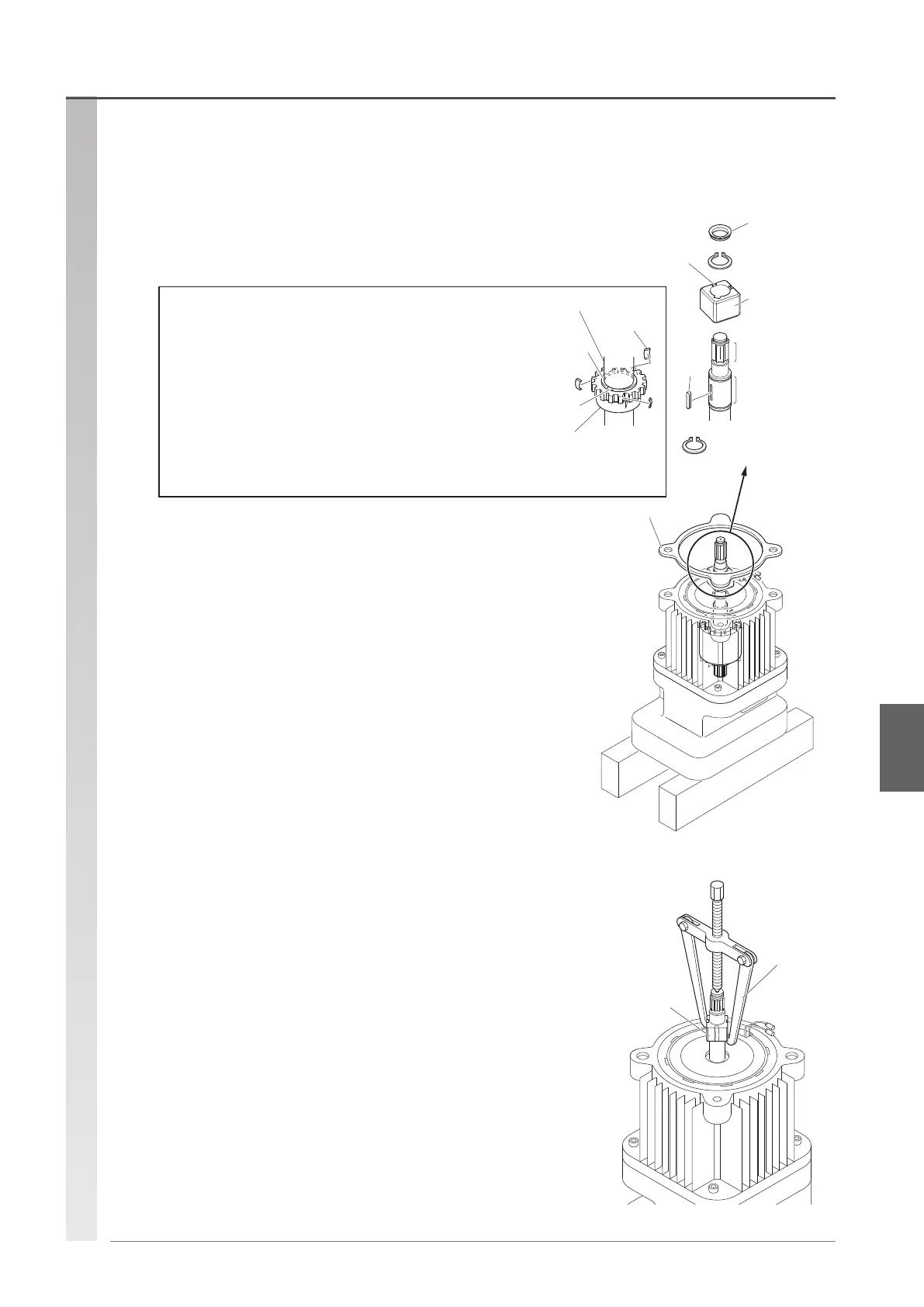

(9) Remove the V ring, snap ring, Packing B,
and hub.
•
Be careful not to scratch the motor junction face.
•
Some models don't have the snap ring (for hub bottom).
•
Remove the hub using a puller.
•
Spline hub is also available.
Hub
Puller
Hub removal
Hub
Snap ring for hub
bottom
Springs (x2)
Fan installation
area
Hub installation
area
Snap ring for
hub top
Key
V ring
Packing B
Hub spring
Motor shaft
Snap ring
Spline hub
Key slot
Disassembly procedure Disassembling the motor and electromagnetic brake

Spline hub
•
First, remove the 3 hub springs installed to the spline
hub and store them.
(To be continued)

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
