KITO ER2 Series Disassembly And Reassembly Guide

22

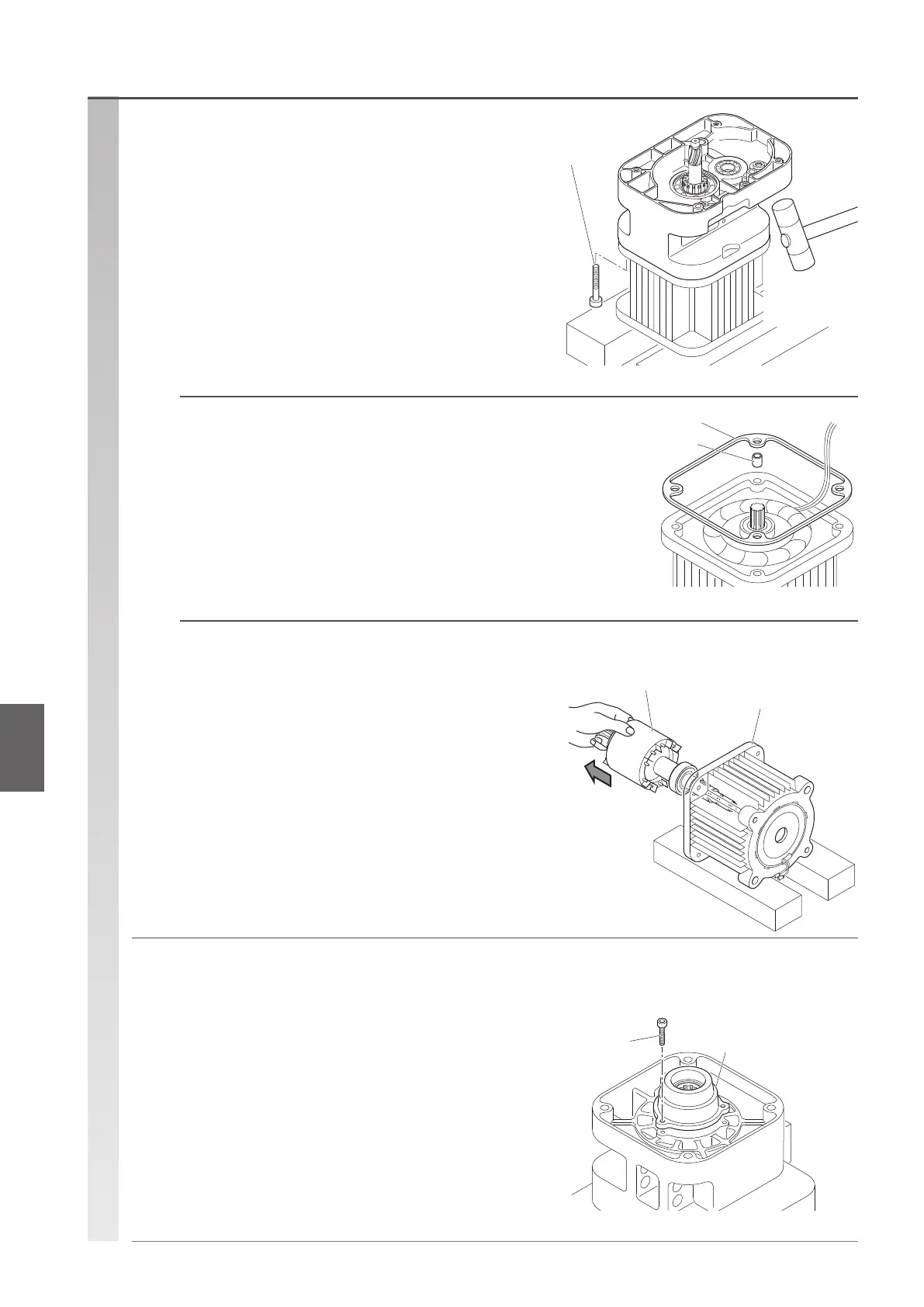

(12) Remove the rotor from the stator.
•
Be careful not to scratch the stator inner circumference
and rotor outer circumference.
Disassembling the body part
7
(1) Remove the 3 socket bolts from the body.
Socket
Bolt
Bearing holder
Rotor
(Remove it gently.)
Stator
(Be careful so that the rotor
does not interfere with
internal winding.)
Disassembly procedure (continued)
(11) Remove Packing M.
•
Be careful not to scratch the motor junction face.
•
Remove the set pin.
Packing M
Set pins (two locations)
Another one exists
in the opposite side,
on the diagonal line.
(10) Remove the 4 socket bolts. Hammer the
stator gently with a plastic hammer to
remove it from the body.
•
Turn it over so that the stator is facing down and the body
is facing up.
•
Use a wooden block for easier operation.
•
Handle it carefully not to damage the motor lead wire.
Loosen socket
bolts (x4).
Hammer gently
with a plastic
hammer.
Disassembly procedureDisassembling the body part

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
