KITO ER2 Series Disassembly And Reassembly Guide

23

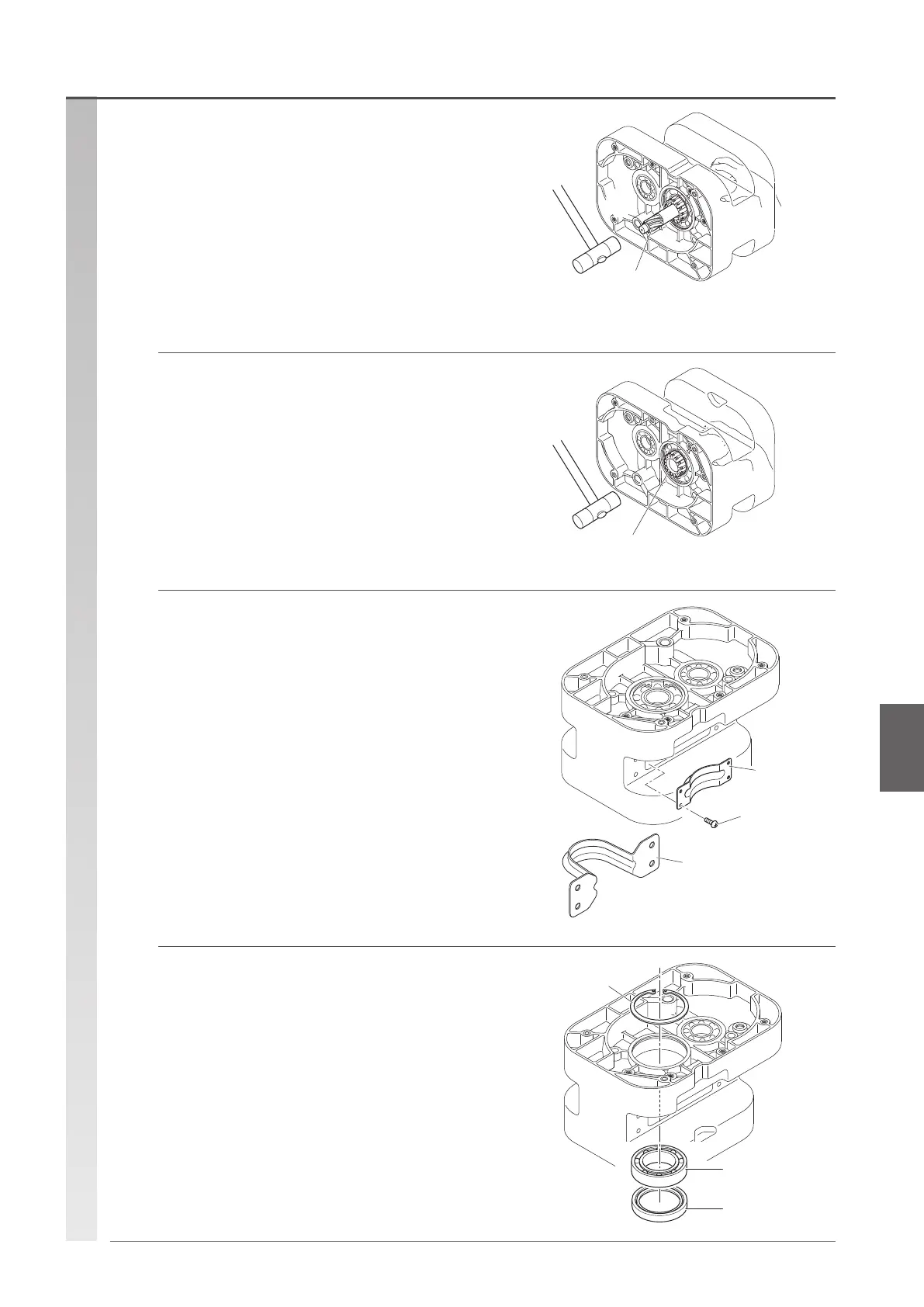

(3) Hammer the load sheave gently as shown
in the gure to remove it.
•
Hold the load sheave with hands to prevent it from falling.
•
For Basic main bodies B and C, Chain Guide B is not
xed. Be careful not to damage Chain Guide B.
Load sheave
Pinion
(Integrated with the bearing
and bearing holder)
(2) Place the body sideways. Hammer the
pinion gently to remove the bearing holder
(including the pinion).
(4) Remove the 4 screws, and remove Chain
Guide B.
•
There is no Pan-head machine screw for Basic main
bodies B and C.
(5) Remove the snap ring as required, and
remove the bearing and oil seal built into
the body.
•
If the oil seal is removed, replace it with a new one upon
reassembly.
500kg or less
Chain Guide B
Chain
Guide B
Pan-head
machine screw
Bearing
Oil seal
Snap ring
Disassembly procedure Disassembling the body part

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
