(3) When connecting to Motorized trolley, install
Suspender instead of Top hook.

Assembling the top hook (Basic main
body F)
(1) Install the 2 O rings to the top pin and xing
shaft.
•
Apply Molytherm No.2 around O ring.
Molytherm No.2: Several grams
(2) Install the top hook or suspender while inserting
Top pin.
(3) Install Plate A (for Top pin) with the 2 socket
bolts.
Tightening torque M6 : 10.8 N·m
Spring lock washer: Yes
(4) Insert the xing shaft plug.
(5) Install the Plate A (for xing shaft) with the 2
pan-head machine screws.
Tightening torque M5 : 8.4 N·m
(6) Insert the shaft plug and O ring, and xing
shaft plug and O ring to the hole of the top pin
and xing shaft of the stator side.
•
If they were removed during disassembly, insert
them before connecting the motor and body as
described on page 26.

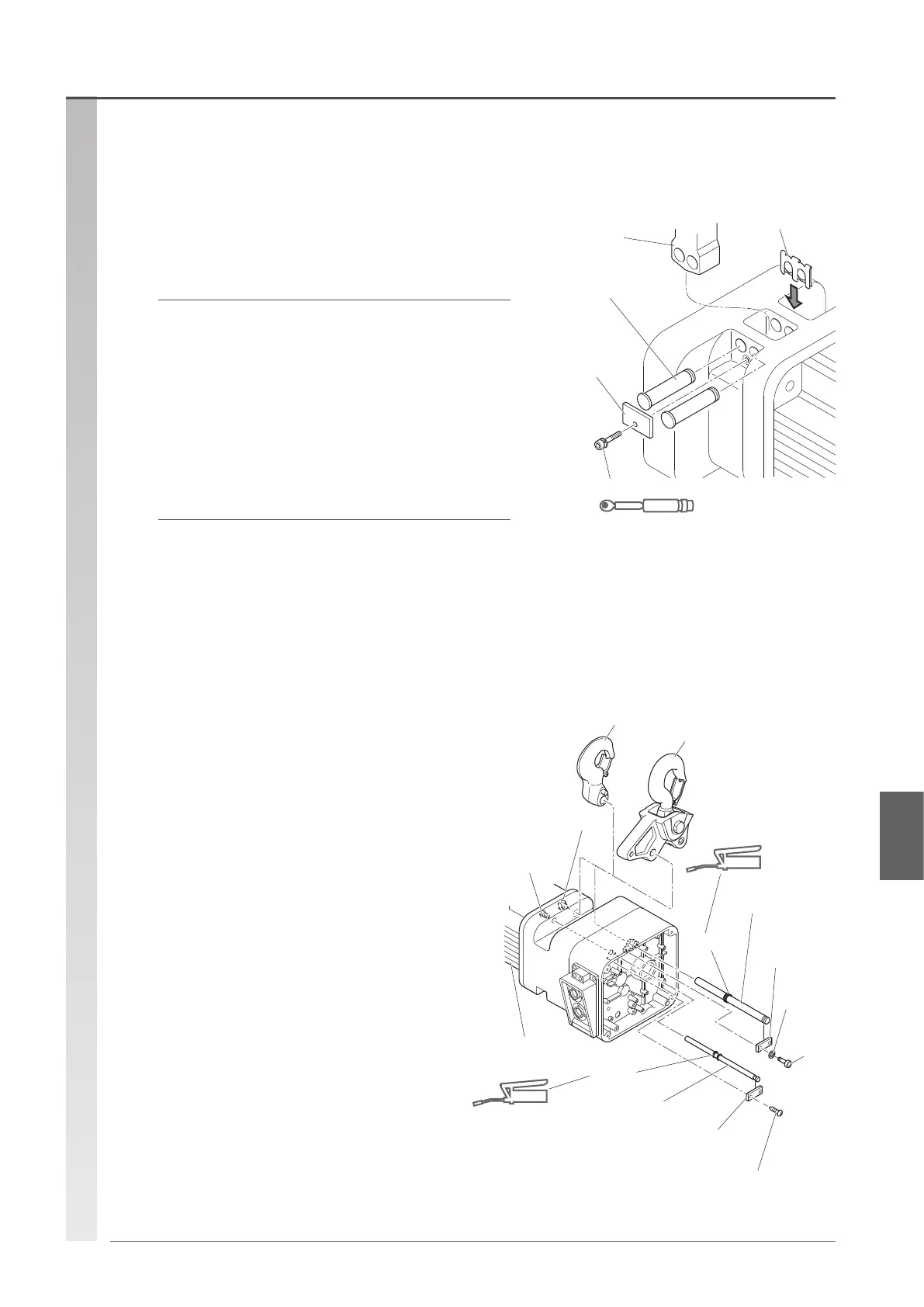

Top hook
Top pin plug
Fixing shaft
plug
Top hook
Stator
Plate A
(for Top pin)
Top pin
O ring
Plate A (for fixing shaft)
Fixing shaft
O ring
Spring lock
washer
Socket
bolt
Pan-head machine screw
Grease
Grease
Installing the top hook
6
(1) Install the top hook by inserting the 2 top
pins.
(2) Install Plate A (for Top pin) with Socket bolt
(1 piece) and Shaft clip on the opposite
side.
•
Fix and lock the top pin with the plate A (for Top pin) and
shaft clip.
•
Push the shaft clip fully until it clicks.
Tightening torque M6 : 10.8 N·m
Spring lock washer: Yes
Top hook or
Suspender
Socket bolt
Top pin
Shaft clip
Torque
Plate A
(for Top pin)

Assembling the top hook (Basic main bodies
B, C, D, and E)
Reassembly procedure
(To be continued)
Installing the top hook
