KITO ER2 Series Disassembly And Reassembly Guide

32

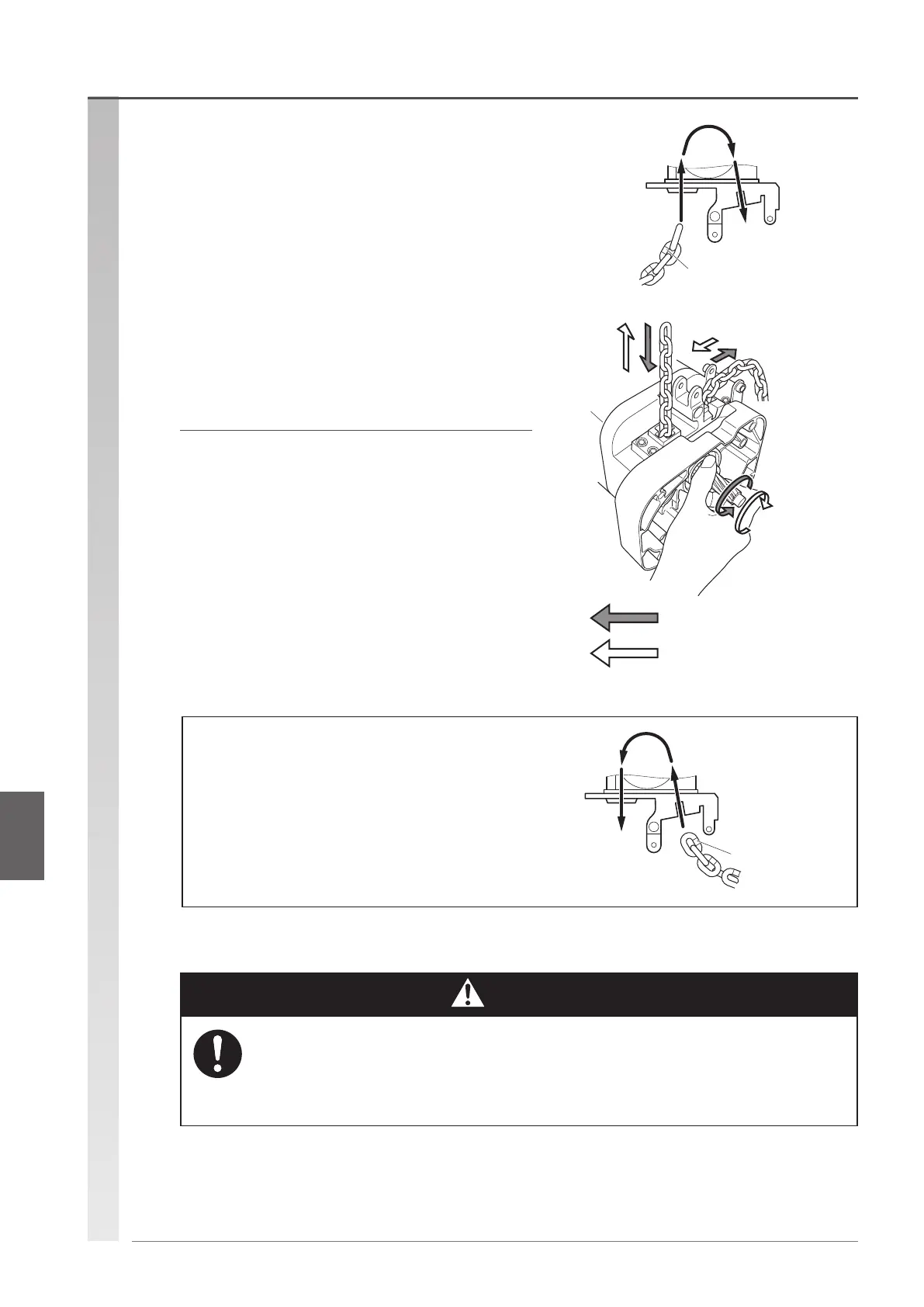

Reassembly procedure (continued)
(2) Insert the load chain from the load side
(bottom hook side) of Chain Guide A, wind
it up by rotating the load sheave manually to
guide it out to the load chain outlet (no load
side).
•
When it engages with the load sheave, tilt the body to the
no load side, and rotate the load sheave manually to guide
the load chain out without getting it entangled.
• Insert the load chain so that the welded part comes outside when it is engaged with the load
sheave.
Failure to follow this instruction may cause defective operation or abnormal wear and
result in severe injury due to a falling load.
Draw out chain
Rotate with hand.
No load side
Insert chain.
Load side
(insert from the
horizontal link)
Chain welded part
(1) Install the load chain so that the welded part
comes outside of the load sheave.
•
Insert it to the main body from the horizontal link (or
vertical link for capacity over 3t)
Installing the load chain
4
For double chain
For single chain
Mandatory
Danger

Installation for the double chain type
•
Insert the load chain from the no load side of
Chain Guide A, wind it up by rotating the load
sheave manually to guide it out to the load chain
outlet (load side).
No load side
(insert from the
vertical link)
Load side
Insert chain.
Draw out
chain
Chain welded part
Rotate
with hand.
Reassembly procedureInstalling the load chain

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
