KITO ER2 Series Disassembly And Reassembly Guide

33

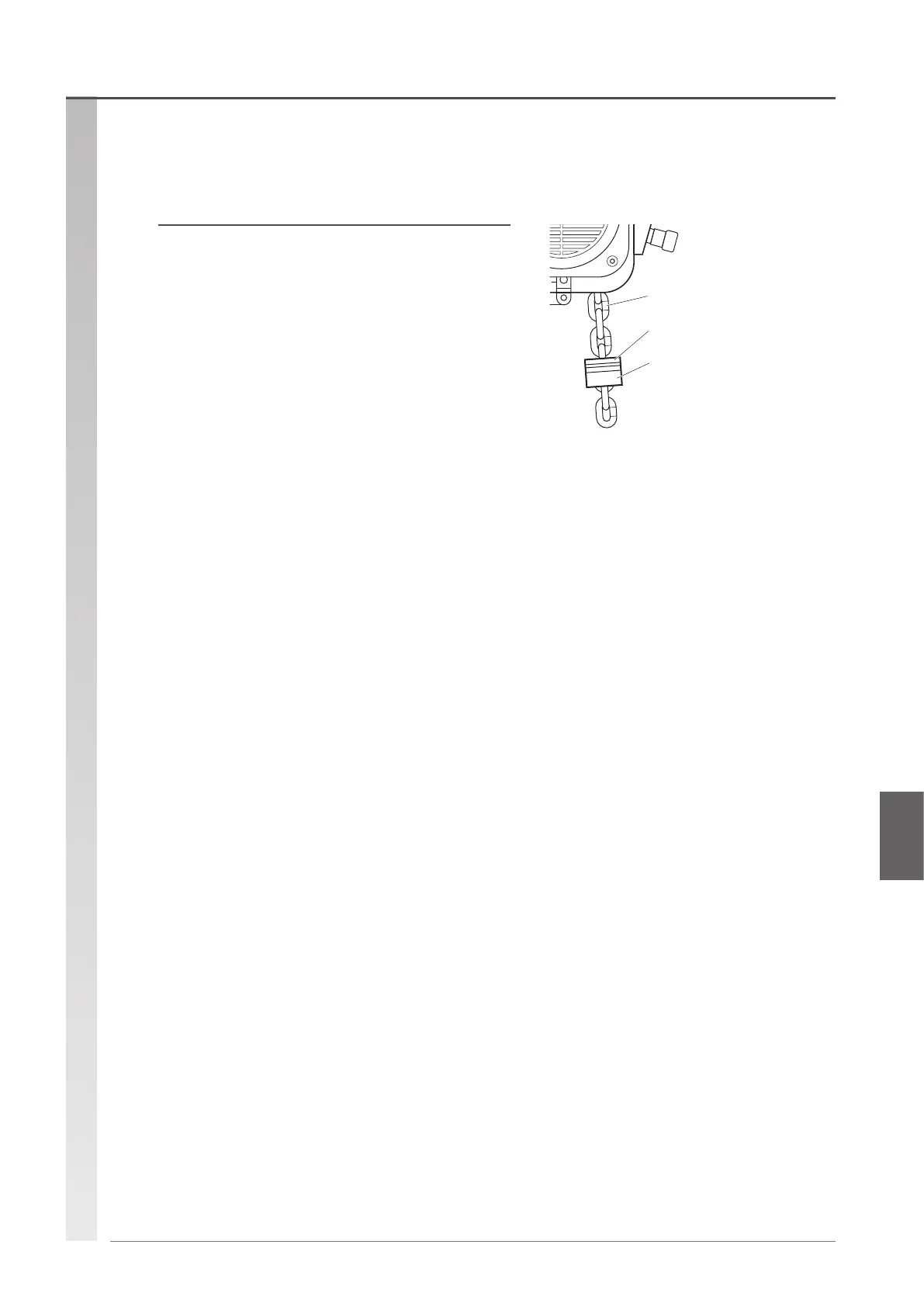

(3) Re-check the orientation of the load chain,
and check for any twist.
Cushion rubber
Stopper
No load side chain
(4) Install the stopper and cushion rubber or
chain spring to the 3rd link from the end of
the no load side load chain as they were
before disassembly.
Reassembly procedure
(To be continued)
Installing the load chain

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
