KITO ER2 Series Disassembly And Reassembly Guide

17


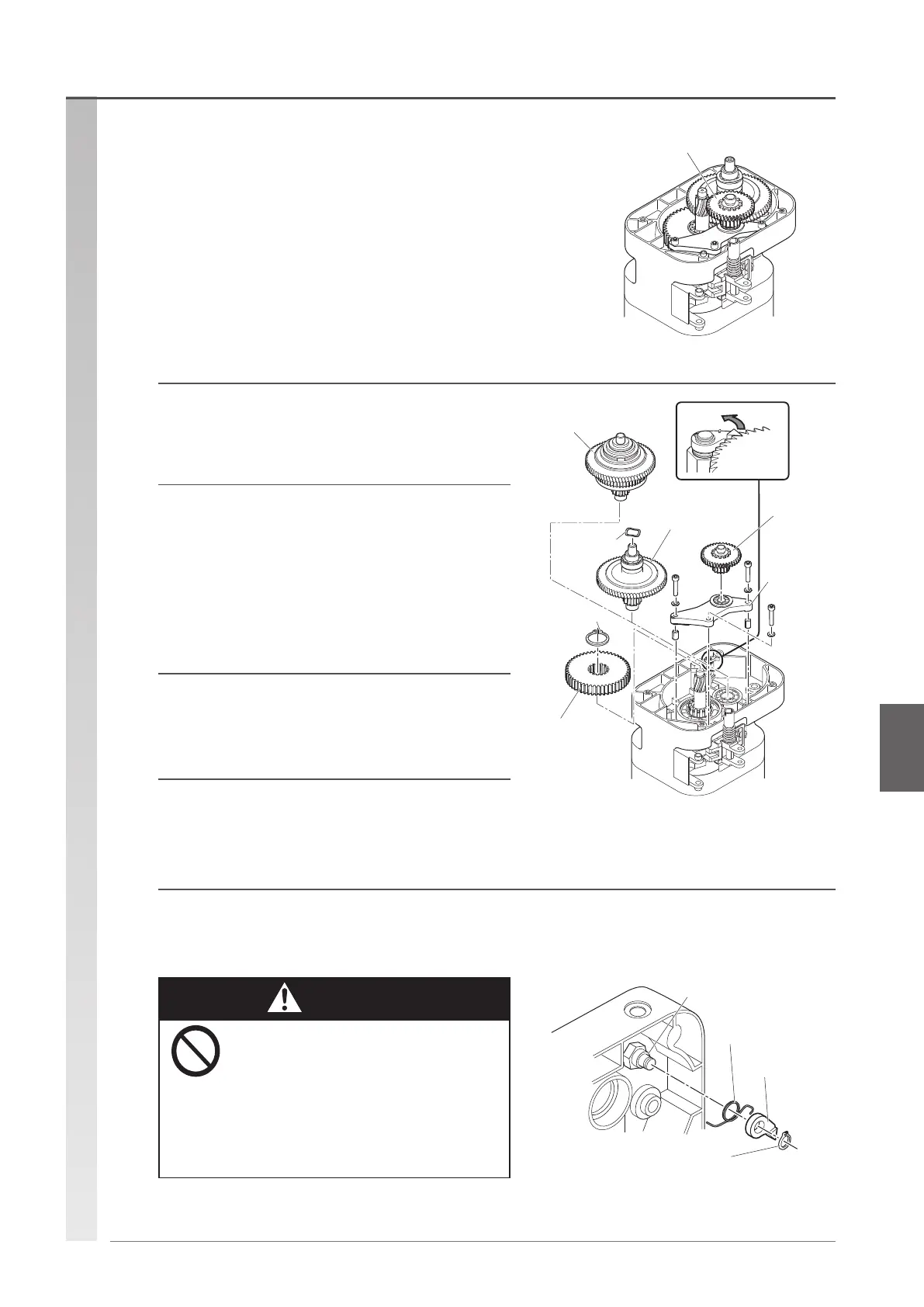

Triple reduction
•
The gear conguration with Gear B built in as shown
to the right is the triple reduction specication. Perform
disassembly in the following steps.
(4) Remove Gear B from the bearing of the
gear plate.
(5) Remove the set spring and friction clutch
from the body.
•
For the friction clutch with mechanical brake specication,
release the pawl from the ratchet disc to remove the
friction clutch with mechanical brake.
(There is no set spring.)
(6) Loosen the 3 socket bolts, and remove the
gear plate from the body.
Gear B
(7) Remove the snap ring, and remove the load
gear.
Friction clutch
Wave washer
Snap ring
Gear holder
plate
Gear B
Friction clutch with
mechanical brake
Release
Load gear

Friction clutch with mechanical brake specication (option)
(8) Remove the snap ring, and remove the pawl spring and pawl from the pawl shaft.
Pawl shaft
Pawl spring
Snap ring
Pawl
• The pawl shaft is fixed to the body with
pawl shaft washer and screw lock. Do
not remove it.
If you do, the pawl shaft will come off,
and a major accident such as death
or serious injury may occur due to a
dropped load.
Prohibited
(To be continued)
Disassembly procedure Disassembling the gear parts
Danger

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
